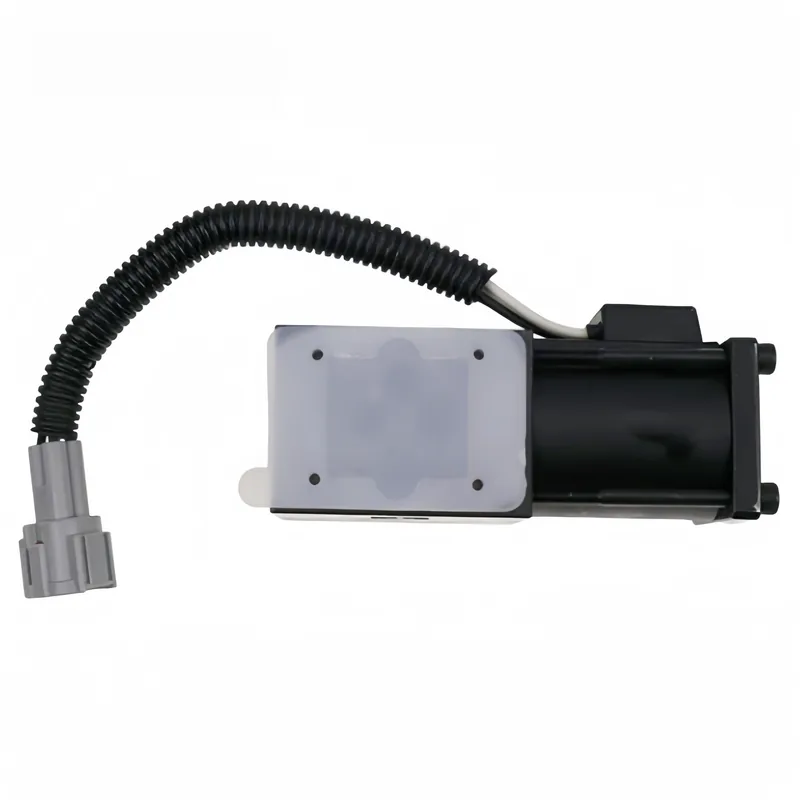

TCM Forklift Transmission Solenoid Valve — PN 91A28-20010

The TCM solenoid valve PN 91A28-20010 is an OEM-spec electro-hydraulic control valve for TCM FD series internal combustion forklifts equipped with powershift transmissions. This solenoid regulates pressurized automatic transmission fluid flow to the forward and reverse clutch packs, enabling precise and smooth directional shifting under load. Manufactured to TCM factory tolerances, the 91A28-20010 features a hardened alloy steel spool and sleeve matched to a high-efficiency copper-wound electromagnetic coil that delivers consistent actuation force across its entire 12V or 24V DC operating range. The valve body is CNC-machined from aircraft-grade aluminum with hard anodizing that resists ATF chemical breakdown and prevents galling in the transmission valve body bore.

The internal fluid passages are precision-honed to a surface finish of Ra 0.4μm or better, minimizing internal leakage and maintaining crisp shift engagement even after extended service intervals. The built-in return spring ensures positive de-energized position when power is removed, preventing unintended gear engagement. An integrated diode across the coil terminals suppresses inductive voltage spikes during switching, protecting the TCU driver circuits from damage. The weather-sealed 2-pin connector uses gold-plated terminals for consistent low-resistance electrical contact in the high-vibration, high-temperature environment of an engine-compartment-mounted transmission. This solenoid is compatible with Dexron III, Dexron VI, and equivalent ATF fluids commonly used in TCM forklift transmissions.

Direct fit for TCM FD20, FD25, FD30, and FD35 forklift models (T9 and later series) with powershift automatic transmissions. Before installation, drain the transmission fluid completely and replace the internal transmission filter to avoid introducing contaminants to the new solenoid. Measure coil resistance with a multimeter — a healthy 91A28-20010 solenoid reads between 3-8 ohms at 20°C ambient. After installation, perform a full shift sequence test (P-R-N-D and back) at idle before road testing under load. For additional TCM transmission components including shift solenoids, pressure switches, and valve body kits, visit our Electronic Control Parts catalog. For OEM service specifications, refer to TCM Forklift technical resources.

Technical Specifications

• PN: 91A28-20010
• Voltage: 12V / 24V DC
• Coil Resistance: 3 – 8 Ω (at 20°C)
• Operating Pressure: 150 – 300 PSI
• Fluid Compatibility: Dexron III / VI ATF
• Connector: Weather-Sealed 2-Pin (Gold-Plated)
• Body Finish: Hard Anodized Aluminum

Compatible Forklift Models

Every Kingstream 91A28-20010 solenoid undergoes a 3-stage QC process: coil resistance verification, pneumatic seat leakage test at 120 PSI, and full-stroke actuation test at rated voltage. Each unit is sealed in anti-static VCI packaging and shipped in a crush-resistant box with foam padding to protect the connector and precision-machined sealing surfaces. We maintain ready stock on all TCM transmission solenoids for same-day dispatch on orders placed before 2 PM (local time). 12-month warranty against manufacturing defects. Need assistance identifying the correct solenoid for your TCM forklift? Contact our technical support team with your model and serial number for expert guidance.
