Hinged Fork for 2-3 Ton Diesel Forklift — Steel Tilting Forklift Attachment

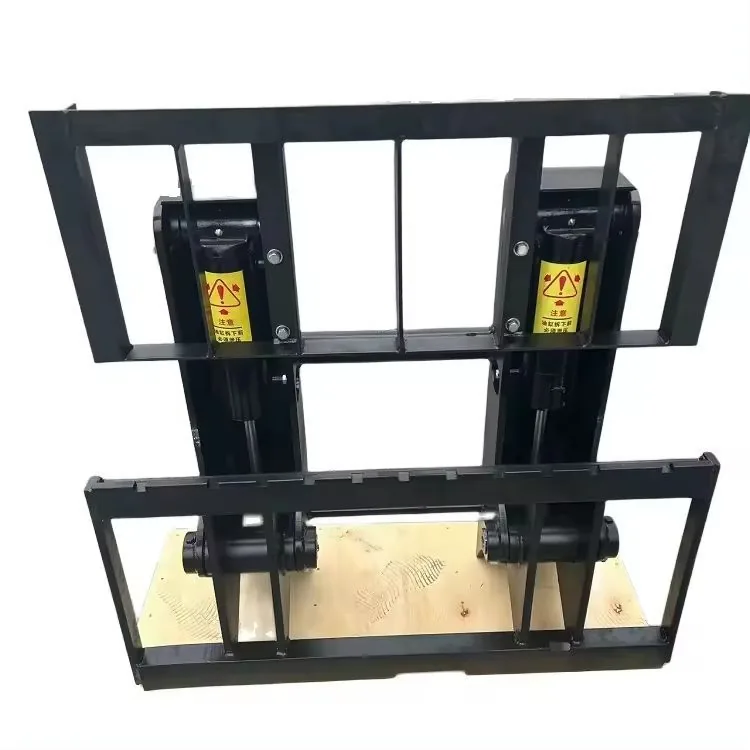

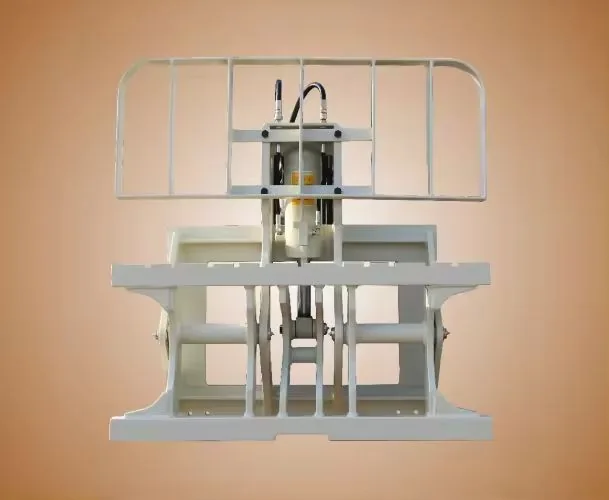

The hinged fork is a steel tilting forklift attachment engineered for 2-ton to 3.5-ton diesel counterbalance forklifts, enabling the fork carriage to tilt forward and backward independently of the mast tilt function. When mounted between the standard fork carriage and the forks, this attachment provides an additional 10-15 degrees of forward tilt beyond the mast tilt range — critical for picking up pallets from tilted or uneven ground surfaces where a standard rigid carriage cannot align the forks parallel to the pallet entry openings. In recycling yards, construction material depots, and agricultural supply warehouses where pallets are frequently stored on unpaved or gravel surfaces, the hinged fork attachment reduces the time spent repositioning the forklift to achieve fork entry by up to 40%, translating to measurable productivity gains over a shift.

Constructed from high-strength Q345 structural steel plate with full-penetration welded joints at all load-bearing intersections, this hinged fork is rated for the full lift capacity of the host forklift at the standard 500mm load center. The hinge mechanism uses a hardened steel pivot pin running through greaseable bronze bushings, providing smooth articulation under load without the galling and seizure that occurs with steel-on-steel pivot joints on cheaper attachments. Two grease fittings at each pivot point allow the operator to lubricate the mechanism during daily pre-shift inspections without disassembly. The fork mounting interface uses standard Class II (ITA Class 2) fork bar hooks that fit carriage bars from 40mm to 50mm width — the universal size range for 2T-3.5T forklifts across HELI, Hangcha, Toyota, Komatsu, Linde, and TCM brands.

Direct bolt-on installation: the hinged fork attaches to the existing fork carriage bars using the integral hook-and-pin mounting system, requiring only a hammer to drive the locking pins into place. No welding, drilling, or carriage modification is required, and the attachment can be removed or reinstalled in under 10 minutes by a single technician. For other forklift attachments including side-shift carriages, fork positioners, and rotating fork clamps, browse our forklift attachment category.

Technical Specifications

• Type: Hinged fork / tilting fork attachment
• Material: Q345 high-strength structural steel plate
• Welding: Full-penetration welded joints
• Hinge Mechanism: Hardened steel pivot pin with greaseable bronze bushings
• Pivot Lubrication: 2 grease fittings per pivot, accessible during pre-shift inspection
• Tilt Range: Additional 10-15 degrees forward tilt beyond mast range
• Load Rating: Full host forklift capacity at 500mm load center (2T-3.5T)
• Mounting: Class II (ITA Class 2) fork bar hooks, 40mm-50mm carriage bar
• Installation: Hook-and-pin mount, tool-free hook engagement, hammer-set locking pins
• Install/Remove Time: Under 10 minutes, single technician, no welding required
• Application: 2T-3.5T diesel counterbalance forklifts loading on uneven surfaces

Compatible Forklift Brands

Each hinged fork attachment ships with Grade 8 locking pins and retaining clips pre-installed in the mounting hooks. Before first use, grease both pivot fittings until fresh grease appears at the bushing seal — this purges any assembly lubricant and contaminants from the bushing bore. During pre-shift inspections, verify both locking pins are fully seated in the fork bar detents and the retaining clips are engaged; a partially seated pin can vibrate loose during operation, allowing the fork to disengage from the carriage — a catastrophic failure that drops the load without warning. Never weld, drill, or otherwise modify the hinged fork attachment — any alteration voids the load rating and creates stress risers at the modification point that can propagate cracks under cyclic loading. For forklift attachment safety inspection guidelines, consult Baldwin Filters. Kingstream stocks hinged fork attachments for same-day dispatch — worldwide freight shipping with online tracking.
