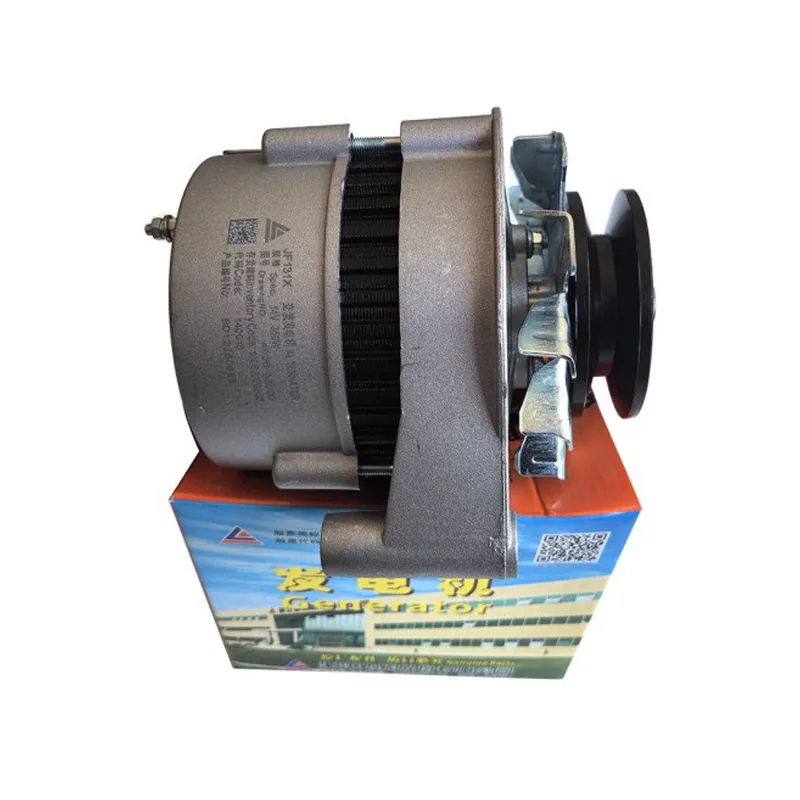

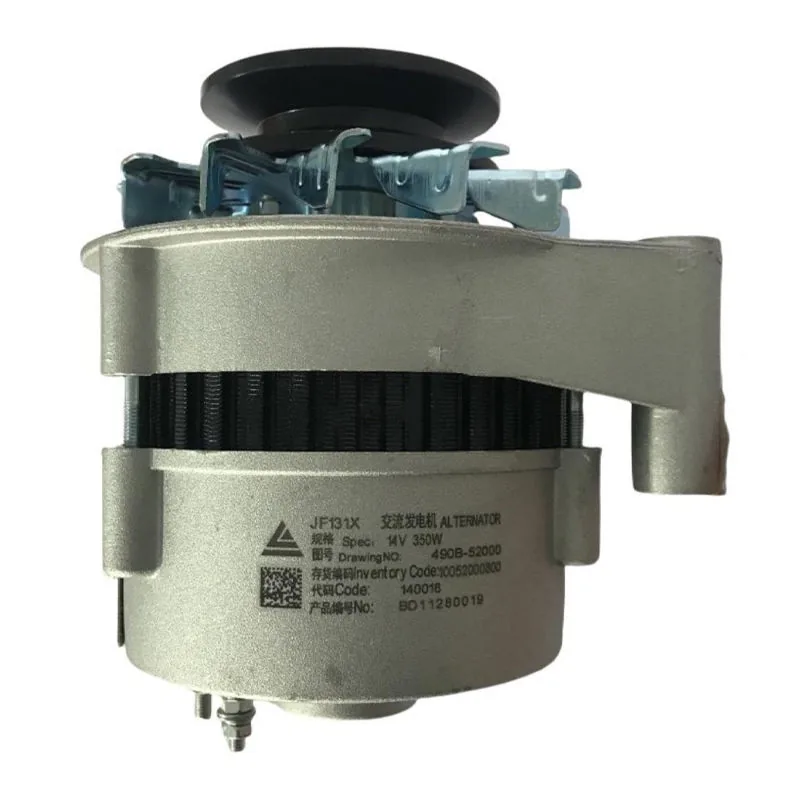

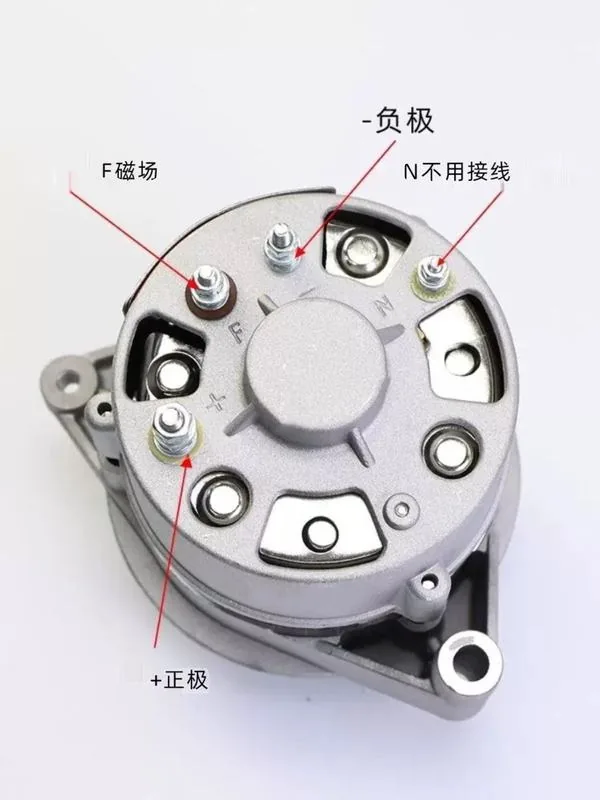

JF131X 14V 350W Alternator for XinChai Forklift Diesel Engines

The JF131X is a 14-volt, 350-watt (approximately 25-ampere) belt-driven alternator specifically designed for XinChai 490, 495, and compatible 4-cylinder diesel engines powering 2-4 ton HELI, Hangcha, and Lonking internal combustion counterbalance forklifts. As a compact, efficient charging system component, the JF131X converts mechanical energy from the engine crankshaft pulley via a V-belt or poly-V belt drive into regulated 14V DC electrical power that charges the forklift’s battery and supplies the vehicle’s electrical loads during operation. The 350W output rating — equivalent to approximately 25 amps at 14V — is sized appropriately for the moderate electrical demands of 2-4 ton forklifts with standard instrumentation, work lights, and engine control systems, providing sufficient charging capacity to maintain battery charge during normal duty cycles without the unnecessary weight, cost, and physical size of higher-output alternators designed for large-capacity equipment.

The alternator employs a Lundell-type claw-pole rotor design that generates a rotating magnetic field when the field coil is energized through the voltage regulator. This field induces three-phase alternating current in the stationary stator windings, which is then rectified to direct current by a six-diode bridge rectifier assembly mounted on an aluminum heat sink in the rear housing. The integrated solid-state voltage regulator — typically a hybrid IC design — maintains the output voltage at a tightly controlled 14.0-14.5V regardless of engine RPM variations from idle to rated speed, electrical load changes, or ambient temperature fluctuations. This precise regulation is critical: undercharging below 13.5V leads to progressive battery sulfation and eventual failure, while overcharging above 14.8V causes excessive battery gassing, electrolyte loss, and can damage voltage-sensitive electronic components including engine ECUs and instrument panel circuits. The JF131X features sealed double-row ball bearings front and rear, a built-in cooling fan integrated into the pulley hub, and ventilation slots in both end housings for convective cooling.

Direct OEM replacement for XinChai 490, 490BPG, 495, 495B, and compatible 4-cylinder diesel engines. Fits HELI CPCD20-CPCD40, Hangcha CPCD20-CPCD40, Lonking LG20DT-LG40DT, and equivalent 2-4 ton forklifts. Also cross-compatible with select agricultural tractors and compact industrial equipment using JF131-series alternators. Before installation, inspect the alternator mounting bracket for cracks or elongated bolt holes — a loose alternator causes belt misalignment and premature belt and bearing failure. Replace the drive belt if it shows cracks, glazing, or has been contaminated with oil or diesel fuel. After installation, adjust belt tension to allow approximately 10mm deflection under moderate thumb pressure at the midpoint of the longest belt span. Start the engine and verify charging voltage at the battery terminals: expect 13.8-14.5V at approximately 1500 RPM with all electrical loads turned on. For compatible drive belts, voltage regulators, batteries, and complete charging system components, visit our Forklift Engine Parts section. For XinChai engine electrical system specifications, refer to XinChai Power technical documentation.

Technical Specifications

• PN: JF131X
• Type: Belt-Driven Lundell Alternator
• Rated Output: 350W / ~25A at 14V DC
• Regulator: Integrated Solid-State, 14.0-14.5V Regulation
• Rectifier: 6-Diode Bridge, Aluminum Heat Sink Mounted
• Bearings: Sealed Double-Row Ball Bearings, Front & Rear
• Cooling: Integrated Pulley Fan + Housing Ventilation Slots
• Application: XinChai 490/495 Forklift Diesel Engines

Compatible Forklift Models

Each JF131X alternator is tested: output current at 2000 and 5000 RPM alternator shaft speed, regulated voltage set point verification, diode forward/reverse testing, bearing noise analysis, and insulation resistance at 500V DC. Ships in foam-lined carton with pulley protected by a plastic cap. 12-month warranty. Common failure symptom: battery warning light glowing dimly at idle that brightens as RPM increases indicates worn brushes or a failing regulator, not necessarily a complete alternator failure. If the light is bright at all RPMs, the alternator is not charging and the diode trio or main rectifier may have failed. Contact our team for charging system diagnostic support.
