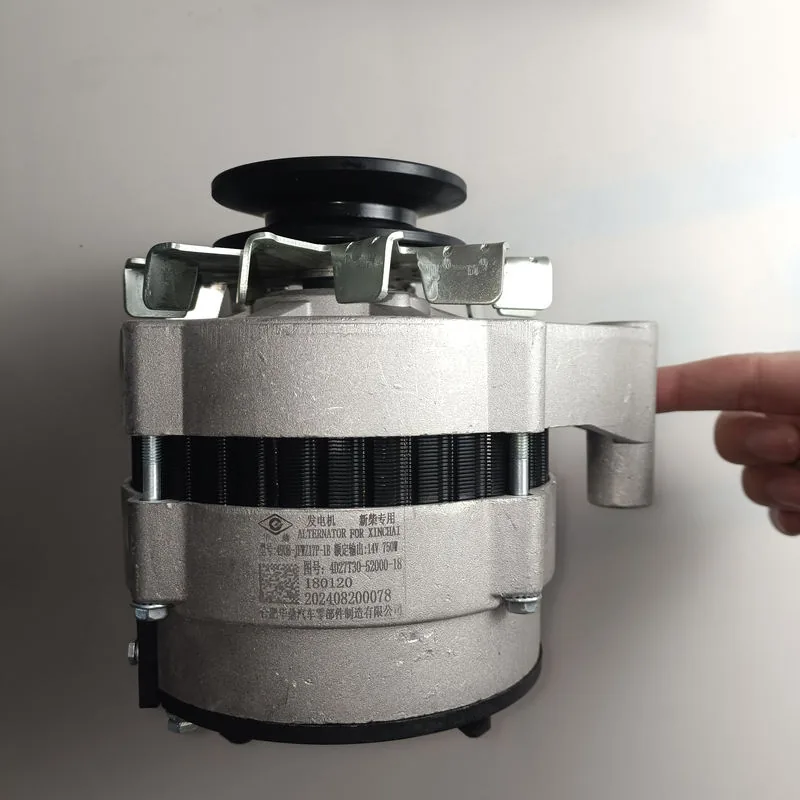

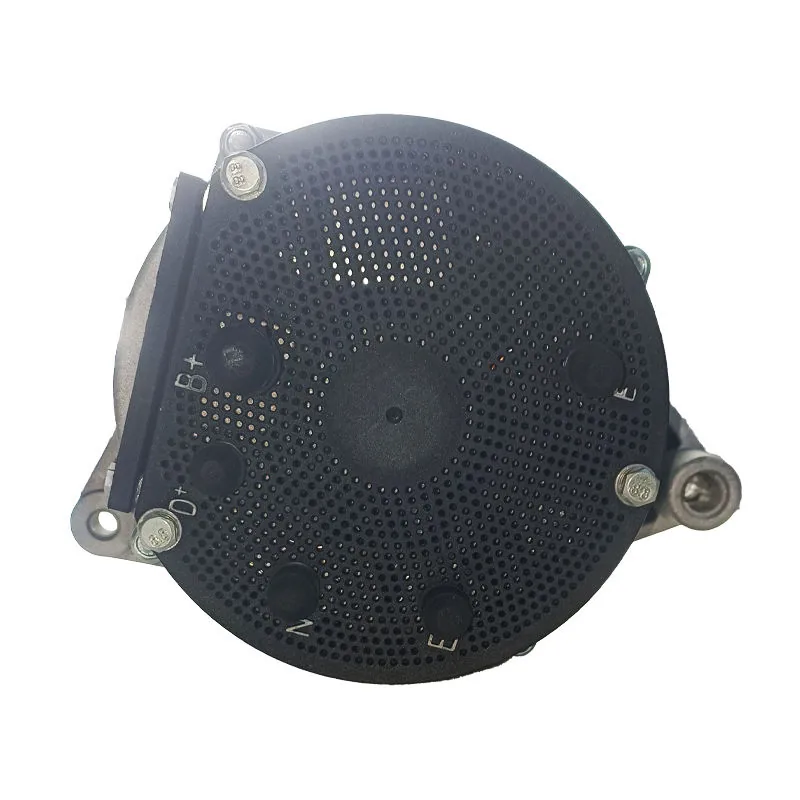

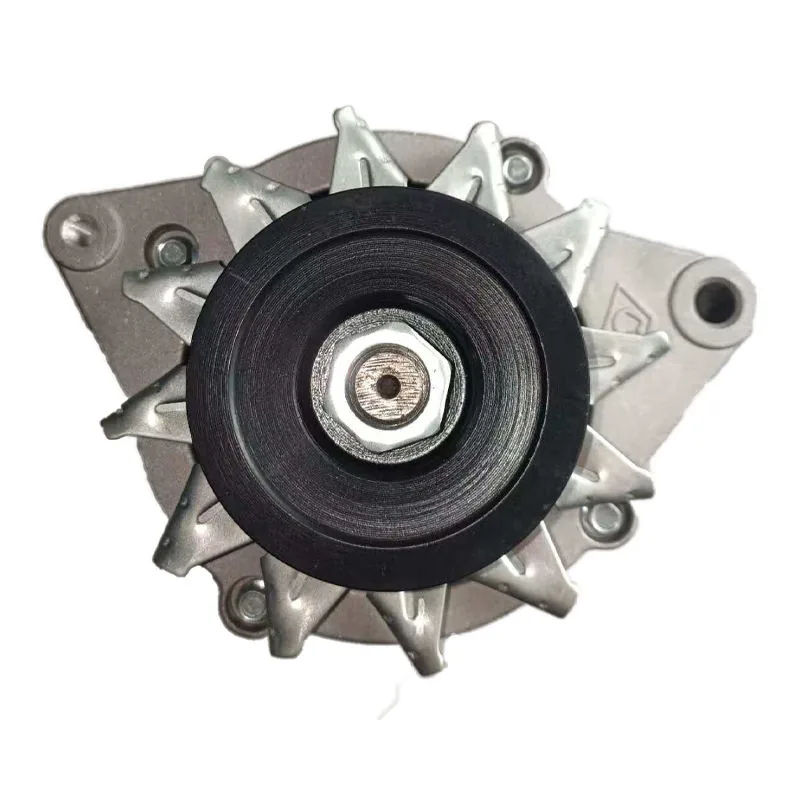

14V 750W Forklift Generator — JFWZ17P-1B Heavy-Duty Alternator

The JFWZ17P-1B is a 14V 750W high-output forklift generator (alternator) designed for medium to heavy-duty internal combustion forklifts in the 2-5 ton class. With an impressive 750W power rating — equivalent to approximately 53A continuous current — this JFWZ-series unit provides ample electrical capacity for forklifts with higher accessory loads, including electric cooling fans, work lights, ECU modules, and aftermarket telemetry or fleet management systems. The generator converts engine mechanical power into regulated DC output to maintain battery charge and supply the entire electrical system under full load conditions. A failing alternator in a high-demand application can cause intermittent voltage drops, ECU reset events, and ultimately stranded equipment — a costly scenario in any logistics or manufacturing operation.

Engineered to rigorous JFWZ-series standards, this alternator features premium copper stator windings and a dynamically balanced rotor assembly for vibration-free operation across the full RPM range. The robust cast aluminum housing is finned for maximum convective heat dissipation — critical for a 750W unit operating in enclosed engine bays where ambient temperatures can exceed 80°C. An advanced IC voltage regulator with thermal compensation maintains stable 14.2V output regardless of engine speed or electrical load fluctuations, protecting the battery from chronic undercharging or overvoltage damage. The unit is equipped with heavy-duty silicon rectifier diodes rated for continuous high-current duty and sealed NSK-grade ball bearings for maintenance-free operation over thousands of hours.

Compatible with a wide range of Chinese-brand forklifts including Heli, Hangcha, Lonking, and Tailift 2-5 ton diesel models, as well as select Japanese-manufactured lift trucks requiring a 750W-class alternator. This generator also suits industrial tow tractors, airport ground support equipment, and compact construction machinery using similar charging system configurations. Regular voltage output testing and belt tension inspection at 500-hour service intervals will maximize service life. Explore additional high-output charging options in our forklift generator category. For technical specifications and cross-reference data, visit the Heli official website.

Technical Specifications

• SKU: JFWZ17P-1B
• Voltage: 14V
• Power Rating: 750W (~53A)
• Type: Heavy-Duty Forklift Generator / Alternator (JFWZ Series)
• Material: Cast Aluminum Housing / Copper Windings
• Application: 2-5 Ton Diesel Forklifts

Compatible Forklift Brands

All Kingstream JFWZ-series generators undergo comprehensive dyno testing — voltage regulation curve, maximum current output, and thermal stability are verified before packaging. Each alternator is sealed in moisture-barrier foil, packed in dual-layer export cartons with custom-cut foam inserts, and shipped with silica gel desiccants for long-distance ocean freight protection. We offer 12-month replacement warranty on all electrical components, supported by our international distributor network. Contact us for volume pricing, OEM private labeling, or technical verification for your specific forklift model.
