Forklift Parts 31515-40K00 Transmission Clutch Piston for Hc, Nissan J02

Forklift Transmission Clutch Piston 31515-40K00 — Nissan J02 Automatic Transmission

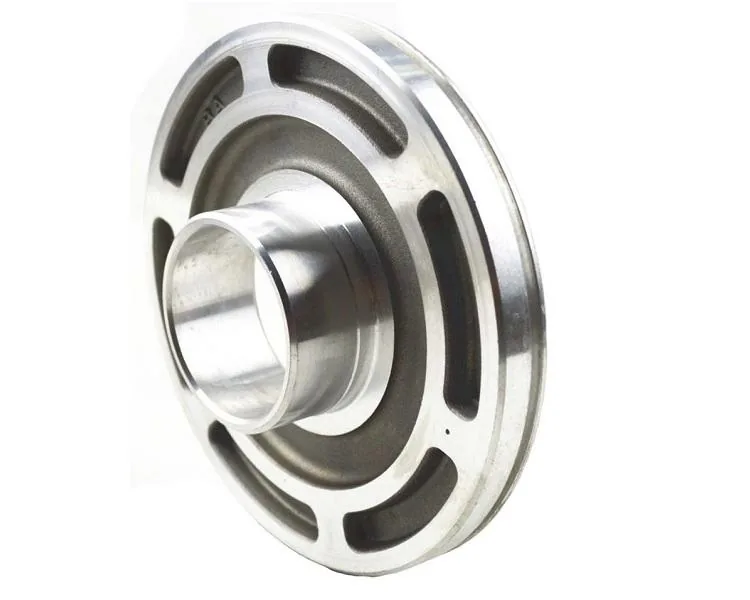

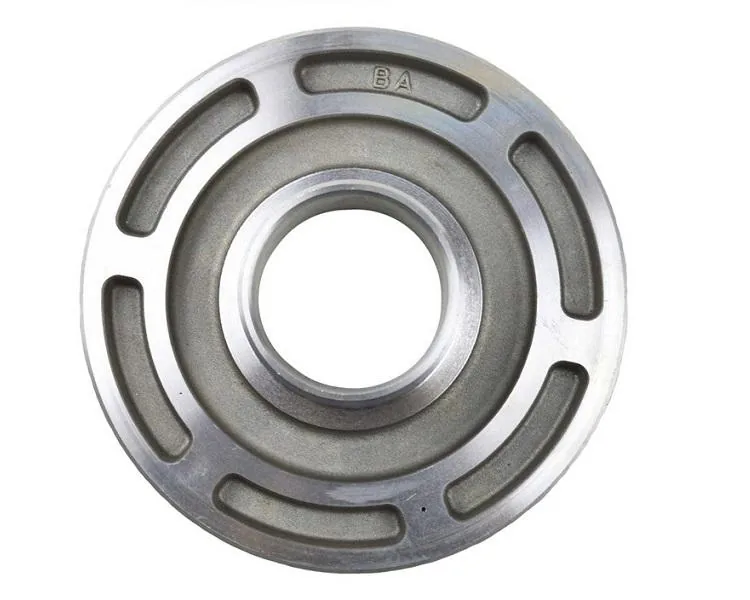

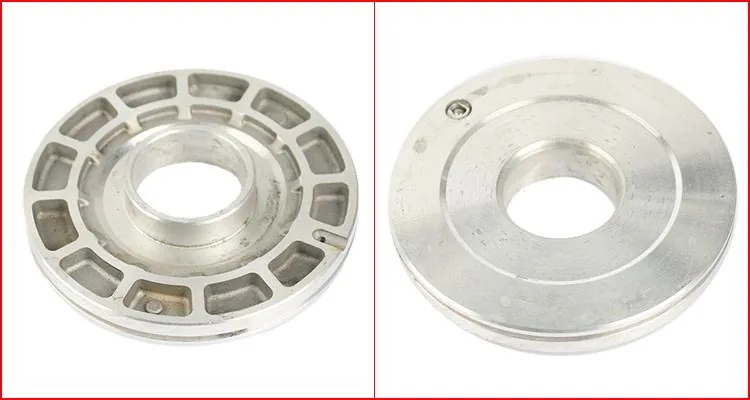

The 31515-40K00 is a hydraulically-actuated clutch piston for the Nissan J02 series automatic transmission used in Nissan FJ02-FJ05 forklifts. In an automatic transmission, the clutch piston is the component that converts hydraulic fluid pressure into mechanical clamping force — when the transmission control valve directs pressurized ATF into the piston chamber, the piston moves axially against a return spring pack, compressing the clutch friction and steel plates together to engage a specific gear set. This piston is machined from aluminum alloy with a hard-anodized sealing surface to resist the abrasive wear caused by the constant cycling of the piston lip seal against the bore wall. The lip seal groove is machined to accept a square-cut PTFE seal (not an O-ring) — PTFE seals have approximately 3x the service life of rubber O-rings in this application because they are not susceptible to the compression set that causes rubber seals to leak after extended periods of heat exposure at 80-100°C transmission fluid temperatures.

Clutch piston replacement in a Nissan J02 transmission requires the transmission to be removed and disassembled. Before disassembly, perform an air-check of each clutch pack through the valve body passages using regulated compressed air at 6-8 bar — a piston that fails to move with an audible “thump” when air pressure is applied has either a torn lip seal or a cracked piston. The most common piston failure is a cracked piston skirt, which occurs when the transmission is operated with low fluid level and the clutch pack overheats, causing the piston to expand beyond the aluminum alloy’s thermal limit. When installing the new piston, the PTFE lip seal must be heated in transmission fluid at 60-70°C for 5-10 minutes before installation to make it pliable — installing a cold PTFE seal will cut the seal lip on the bore edge during insertion. The seal must be oriented with the lip facing the pressure side of the piston. Common failure symptoms: transmission slipping in one direction only (forward or reverse — the corresponding clutch piston not building pressure), delayed engagement of 2-3 seconds after selecting direction (piston lip seal bypass), and ATF appearing dark with a burnt smell (clutch pack slipping from insufficient piston clamping force).

This clutch piston fits Nissan J02 automatic transmissions in FJ02, FJ03, FJ04, and FJ05 forklifts. Verify OEM number 31515-40K00 on your transmission parts catalog. For related transmission components, visit our Forklift Hydraulic Transmission section.

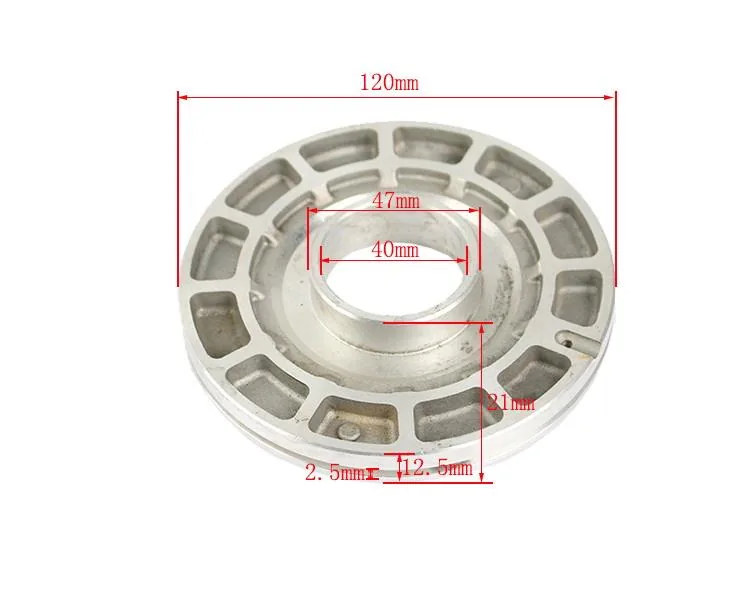

Technical Specifications

• Part Number: 31515-40K00
• Transmission: Nissan J02 Automatic
• Material: Aluminum Alloy, Hard-Anodized
• Seal Type: Square-Cut PTFE Lip Seal
• Air Check Pressure: 6-8 bar (Regulated Compressed Air)
• Application: Nissan FJ02-FJ05 Forklifts

Compatible Forklift Models

Each piston is inspected for anodizing integrity and seal groove dimensions, packed in protective packaging, and ships within 1-2 business days. 12-month warranty. Browse our Forklift Hydraulic Transmission catalog.
