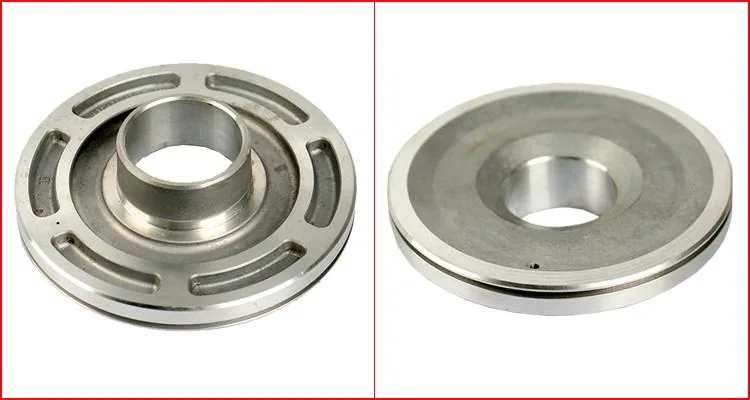

Forklift Clutch Piston 11801-55201 — OEM for TCM FD20-FD30 T3 Series

The 11801-55201 is an OEM clutch piston for TCM FD20, FD25, and FD30 T3 series forklifts with hydraulic power shift transmissions. Unlike the aluminum pistons used in Nissan J02 transmissions, the TCM T3 series uses a steel piston with a chrome-plated outer diameter — the chrome plating provides a harder, more wear-resistant sealing surface (approximately HRC 65-70 surface hardness vs HRC 40-45 for hard-anodized aluminum) that extends seal life in the TCM transmission’s higher operating pressure environment of 12-15 bar (compared to Nissan’s 8-10 bar). The piston uses two seals: an inner O-ring that seals against the clutch hub shaft and an outer lip seal that seals against the clutch drum bore. The outer lip seal is a Buna-N rubber design rather than PTFE, as Buna-N provides better dynamic sealing performance in the TCM T3’s higher-pressure, lower-cycle-rate application where the clutch engages and remains engaged for extended periods rather than cycling frequently.

The TCM T3 clutch piston is retained by a return spring pack with a Belleville washer that provides the initial return force. When removing the piston, the Belleville washer orientation must be noted — the concave side faces the piston, and installing it backwards will reduce the return spring preload by approximately 40%, causing the clutch to drag and overheat during neutral operation. The steel piston is susceptible to rust pitting on the back side (non-pressure side) if the transmission has been operated with water-contaminated ATF — inspect the piston back face with a magnifying glass for any pitting deeper than 0.1mm, as rust pits will propagate into cracks under cyclic pressure loading. When installing the new piston, lubricate both seals with clean ATF and ensure the piston enters the bore squarely — cocking the piston during insertion will cut the outer lip seal, and the resulting seal leak may not be apparent until the transmission reaches operating temperature and the ATF thins. Common failure symptoms: transmission creeping forward in neutral when hot (clutch pack drag from piston not fully retracting), delayed forward engagement of 1-2 seconds (worn outer lip seal bypassing), and ATF level dropping without visible external leak (piston inner O-ring leaking into the transmission bell housing through the input shaft seal).

This piston fits TCM FD20, FD25, and FD30 T3 series forklifts with hydraulic power shift transmissions. Verify OEM number 11801-55201 on your transmission parts catalog. For related TCM transmission components, visit our Forklift Hydraulic Transmission section.

Technical Specifications

• Part Number: 11801-55201
• Transmission: TCM T3 Hydraulic Power Shift
• Material: Steel with Chrome-Plated OD
• Seals: Inner O-Ring + Outer Buna-N Lip Seal
• Operating Pressure: 12-15 bar
• Application: TCM FD20, FD25, FD30 T3 Series

Compatible Forklift Models

Each piston is inspected for chrome integrity and seal groove dimensions, packed in protective packaging, and ships within 1-2 business days. 12-month warranty. Browse our Forklift Hydraulic Transmission catalog.
