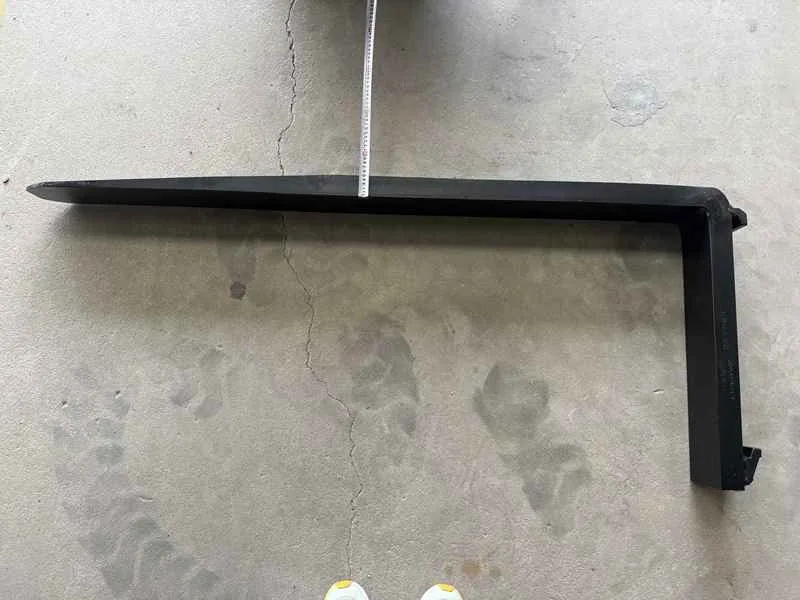

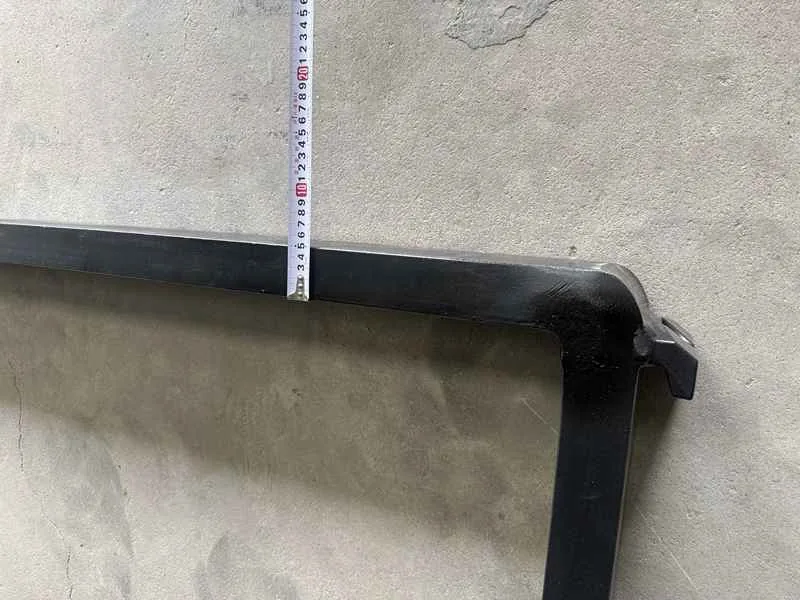

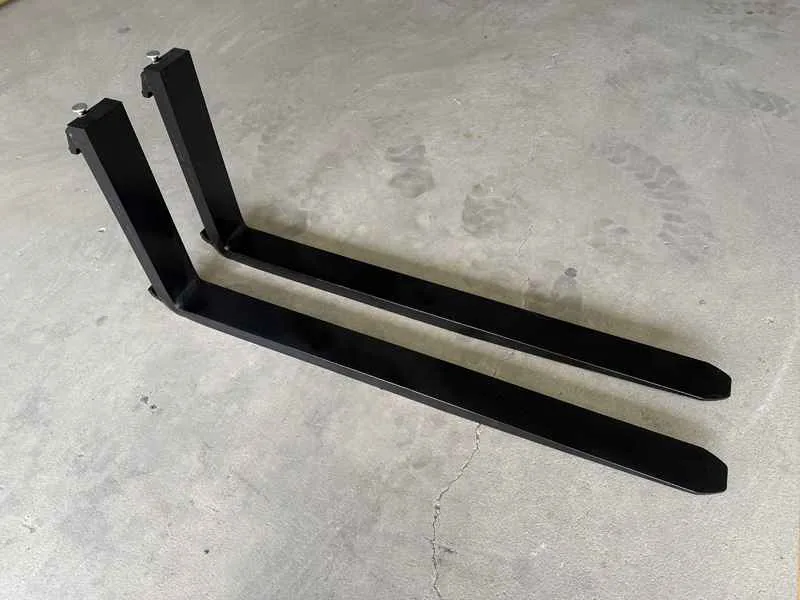

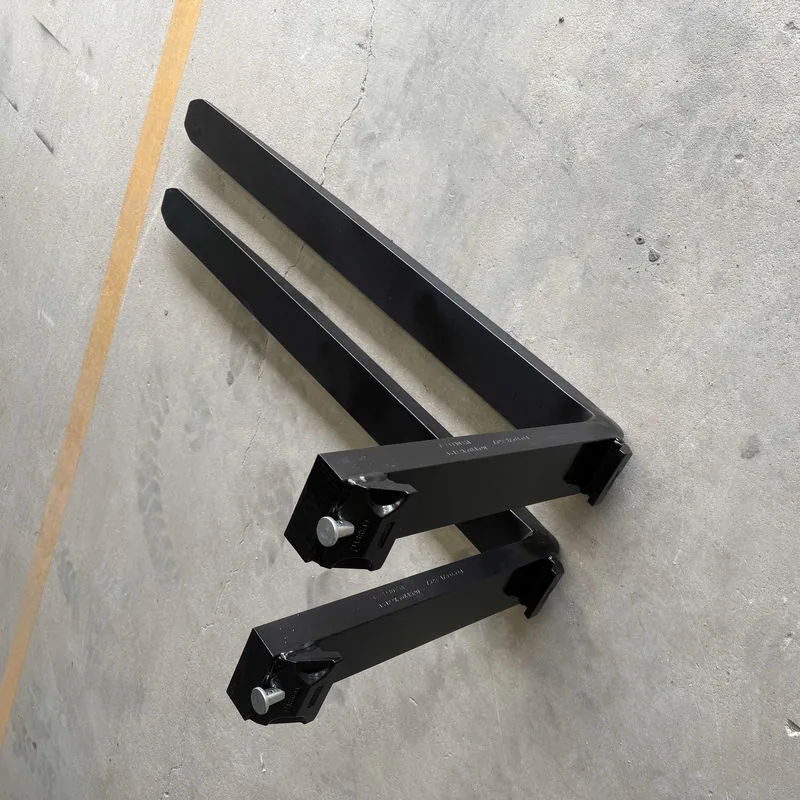

Stainless Steel Fork Carriage Bars 2A-100×35×1820mm — Extra Wide Custom Forklift Forks

These stainless steel fork carriage bars model 2A-100×35×1820mm are extra-wide custom fork bars designed for specialized forklift applications requiring corrosion resistance, sanitary operation, or non-contaminating material handling. With dimensions of 1820mm length, 100mm width, and 543mm height fork profile, these 124kg bars are manufactured from stainless steel — making them suitable for food processing, pharmaceutical, chemical, and marine environments where carbon steel forks would corrode or contaminate sensitive products. The extra-wide 100mm fork face distributes load weight over a larger contact area, reducing point-loading pressure on pallets and goods — a critical advantage for handling bagged products, finished goods, and fragile palletized loads in building material, food and beverage, garment, and general manufacturing applications. 1-year warranty included with single-unit order availability and 182×10×54.3cm package dimensions.

Installing stainless steel fork carriage bars requires verifying fork mounting compatibility with your carriage — the 100mm width must match your carriage bar slot dimensions, and the fork heel profile must be compatible with your carriage bar cross-section. Stainless steel forks are typically heavier than equivalent carbon steel forks due to the material density difference, which must be accounted for when calculating the forklift’s net lifting capacity. Before installation, inspect the fork heel contact surfaces on the carriage bar for wear or deformation — stainless steel heel surfaces are more susceptible to galling than carbon steel, so applying a thin anti-seize compound to the heel-to-carriage contact zone during installation prevents cold welding of the stainless steel surfaces under load pressure. Post-installation, verify fork positioning pins engage fully and forks slide freely across the carriage bar without binding. The primary advantage of stainless steel forks — corrosion resistance — is maintained through regular cleaning; chemical residues from food processing or pharmaceutical applications should be rinsed off after each shift to prevent pitting corrosion, particularly at weld zones and heel contact surfaces. 1-year warranty covers manufacturing defects.

These fork bars are designed for standard ITA Class II/III carriages. Confirm your carriage bar dimensions before ordering. Browse our Fork Carriage category for carbon steel forks and carriage components. For OEM specifications, visit HELI Forklift official site. For bulk orders or custom stainless steel specifications, contact us.

Technical Specifications

Compatible Applications

Each pair of fork bars is inspected for dimensional accuracy and surface finish before shipment. 1-year warranty. Standard export packaging. For bulk orders or custom specifications, contact us.
