Heavy Duty High Strength Steel Steering Shaft Assembly with Universal Joint

Heavy Duty Steering Shaft Assembly with Universal Joint — Forklift, Construction & Commercial Vehicle Application

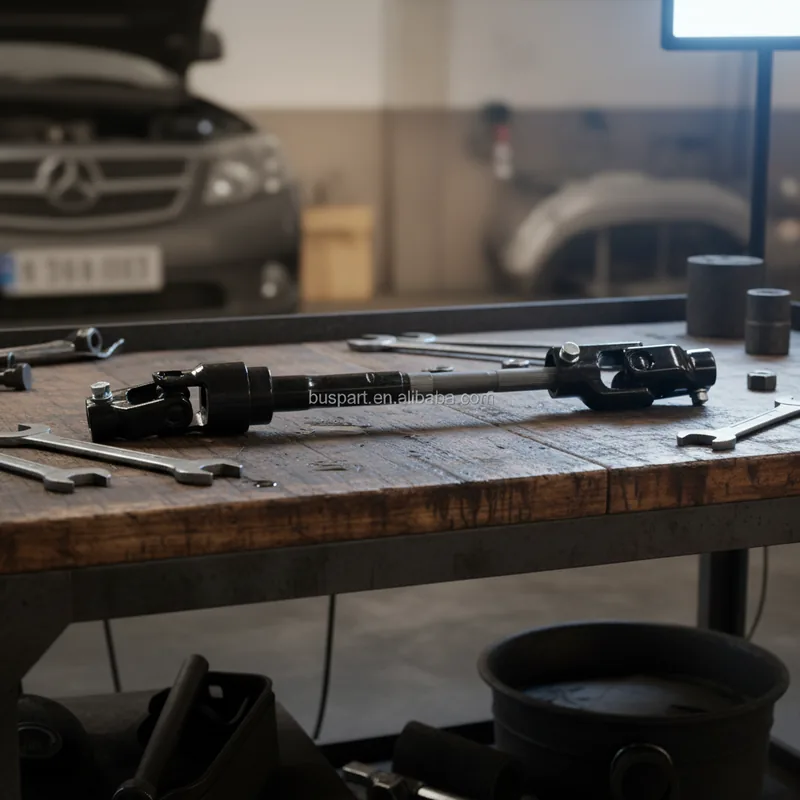

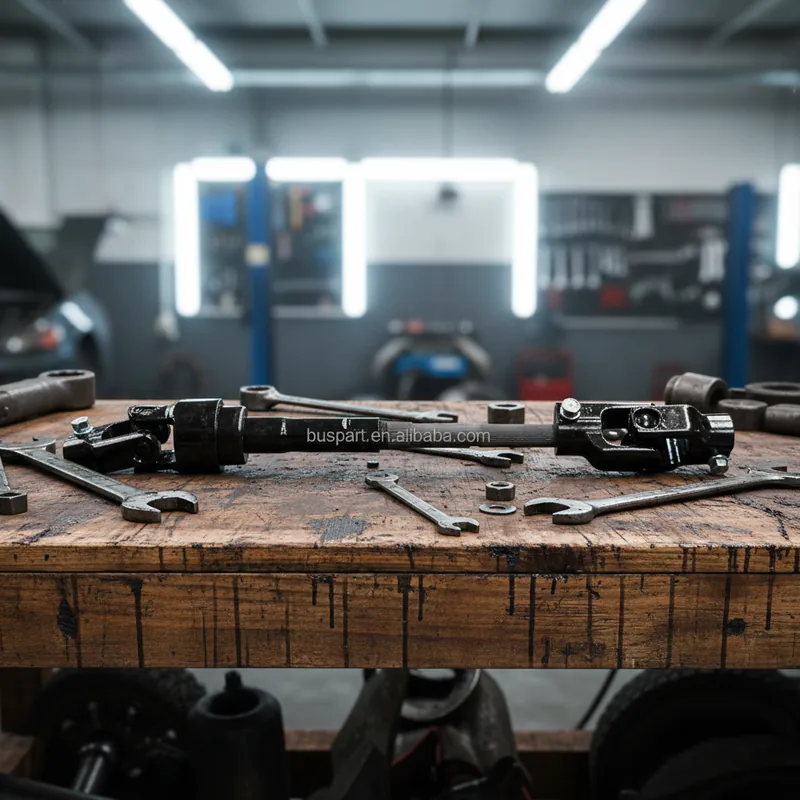

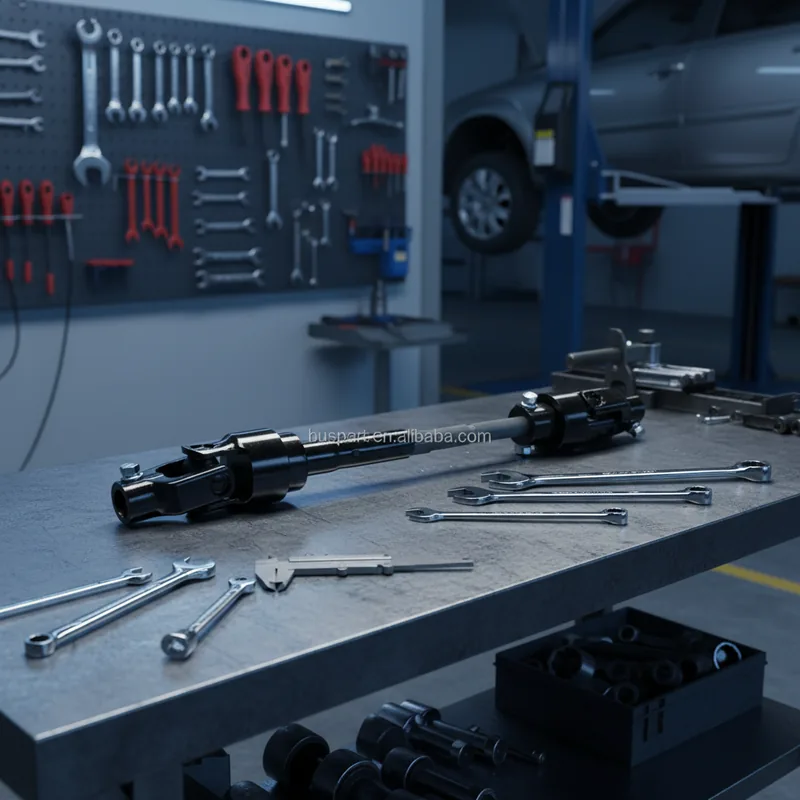

This heavy-duty steering shaft assembly is a complete telescopic steering column shaft with an integrated universal joint, engineered for forklifts, construction machinery, agricultural vehicles, and commercial vehicle applications. Constructed from high-strength steel with black paint or optional phosphating surface treatment, this assembly transmits steering torque from the steering wheel to the steering gearbox or orbitrol unit while accommodating angular misalignment and length variation through the telescopic shaft design. The integrated universal joint is built with hardened bearing crosses and precision needle bearings rated for the low-speed reciprocating duty cycle typical of off-highway steering systems. This assembly cross-references to multiple applications beyond forklifts — it also fits Jinbei, Hiace, Toyota commercial vans, Zhongshun, Foton View, and Jinlong vehicles, making it a versatile replacement part for fleet maintenance operations. If your vehicle or machine exhibits a clunking noise when turning the steering wheel at low speed, a loose or wobbly steering column, or excessive steering free play that cannot be adjusted out, the universal joint or telescopic splines in the shaft assembly are the likely failure points.

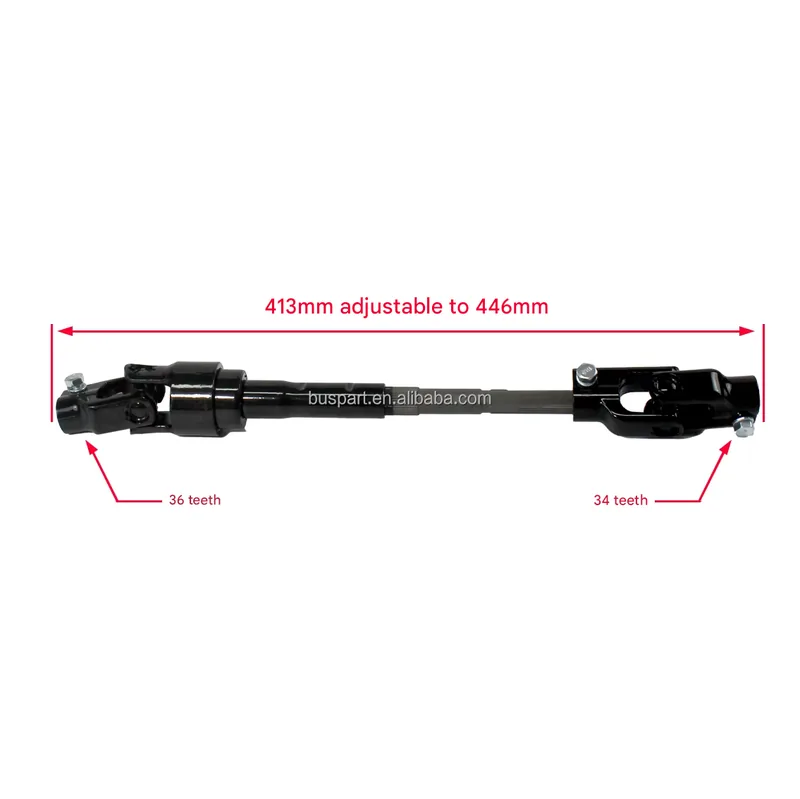

Installing a steering shaft assembly requires careful attention to phase alignment. Before removing the old shaft, mark the yoke orientation on both the steering column and steering gearbox/orbitrol input shafts — the universal joint yokes must be in phase (parallel) to prevent cyclic steering effort variation and premature U-joint wear. The telescopic section of the shaft allows for length adjustment during installation; extend or collapse it to match the exact distance between the column and gearbox mounting flanges, then tighten the clamping bolt. On forklifts, the shaft typically passes through a floor seal or boot — inspect and replace this seal if it is torn, as water and debris entering through the floor opening accelerate shaft spline corrosion. Apply anti-seize compound to the splined sections before assembly and torque all pinch bolts to the vehicle service manual specification. A loose pinch bolt at the universal joint yoke is the single most common cause of steering shaft-related noise and play complaints. After installation, cycle the steering lock-to-lock with the engine off (or hydraulic pump disabled) to verify smooth rotation without binding at any angle.

This steering shaft assembly is a multi-application replacement for forklifts, construction machinery, and commercial vehicles. Cross-references to OE numbers GM19169059 and 15907887 for GMC Yukon applications. Confirm your shaft length, yoke dimensions, and spline count before ordering. Browse our Universal Joint category for individual U-joints and steering column components. For OEM specifications, visit Toyota Forklift official site.

Technical Specifications

Compatible Vehicle Applications

Each steering shaft assembly is inspected for U-joint smoothness and telescopic slide function before shipment. Standard export packaging. For bulk orders or custom length and spline specifications, contact us with your requirements.
