Forklift LiFePO4 Battery Charger – 24V-80V 100A-200A 2400W CAN Bus Fast
$369.99
Forklift LiFePO4 battery charger 24V-80V 100A-200A 2400W. CAN bus BMS communication. ≥93% efficiency. REMA plug. Fast charging. 375x238x170mm. 12kg.

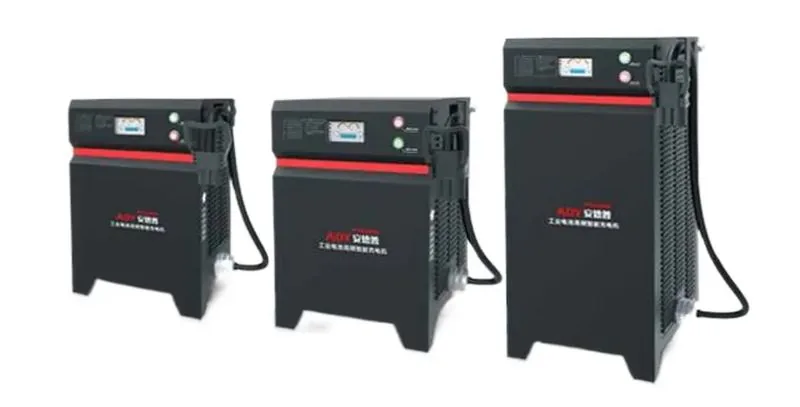

Forklift LiFePO4 Battery Charger — 24V-80V, 100A-200A, 2400W, CAN Bus Communication
This high-power LiFePO4 battery charger is designed for fast-charging lithium iron phosphate forklift batteries across a wide voltage range from 24V to 80V DC, with output currents up to 200A and 2400W total power. The charger connects to standard 220V AC 50Hz single-phase mains power and delivers a precisely controlled CC/CV (constant current/constant voltage) charging profile specific to LiFePO4 battery chemistry. CAN bus communication enables the charger to interface directly with the forklift’s battery management system (BMS) for real-time charge parameter adjustment, cell-level monitoring, and charge termination based on individual cell voltages rather than just pack voltage — critical for LiFePO4 batteries where cell imbalance is the primary failure mode.
The charger features REMA plug output connector, ≥93% efficiency, IP20 ingress protection, and comprehensive protection against overcharging, overcurrent, and overvoltage. Dimensions: 375×238×170mm, weight: 12kg. Ships from Shenzhen with 50,000 pieces per month supply capacity. The metal housing and forced-air cooling enable continuous operation without thermal derating. The 29.2V maximum output at 100A (one configuration) and 48V at 200A (another) cover the full range of forklift battery voltages from small pallet trucks to large counterbalance electric forklifts. SuperVOOC 1.0/2.0 fast-charging function reduces downtime by charging to 80% capacity in significantly less time than standard chargers.
Compatible with LiFePO4 forklift batteries from 24V to 80V. Browse our forklift battery charger selection for other chemistries and power ratings.
Technical Specifications
| Parameter | Value |
|---|---|
| SKU | LIFEPO4-CHARGER-2400W |
| Input | AC 220V, 50Hz |
| Output Voltage Range | 24V / 48V / 72V / 80V DC |
| Output Current | 100A-200A |
| Output Power | 2400W |
| Efficiency | ≥93% |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Communication | CAN Bus (BMS interface) |
| Output Connector | REMA Plug |
| Protection | Overcharge, Overcurrent, Overvoltage |
| IP Rating | IP20 |
| Dimensions | 375×238×170 mm |
| Weight | 12 kg |
| Origin | GUA (Shenzhen dispatch) |

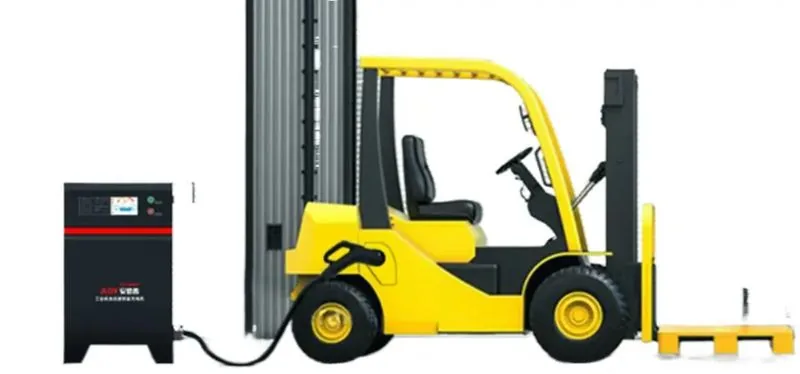

Compatible Applications
| Battery Voltage | Application |
|---|---|
| 24V | Small pallet trucks, walkie stackers |
| 48V | Mid-size electric forklifts (2-3T) |
| 72V-80V | Large electric forklifts (3-5T) |
CAN bus BMS communication. ≥93% efficiency. Specify your battery voltage and required charging current →
