Forklift Brake Assembly

Forklift Brake Assembly： Complete Wheel Brake Units for Drum & Disc Systems

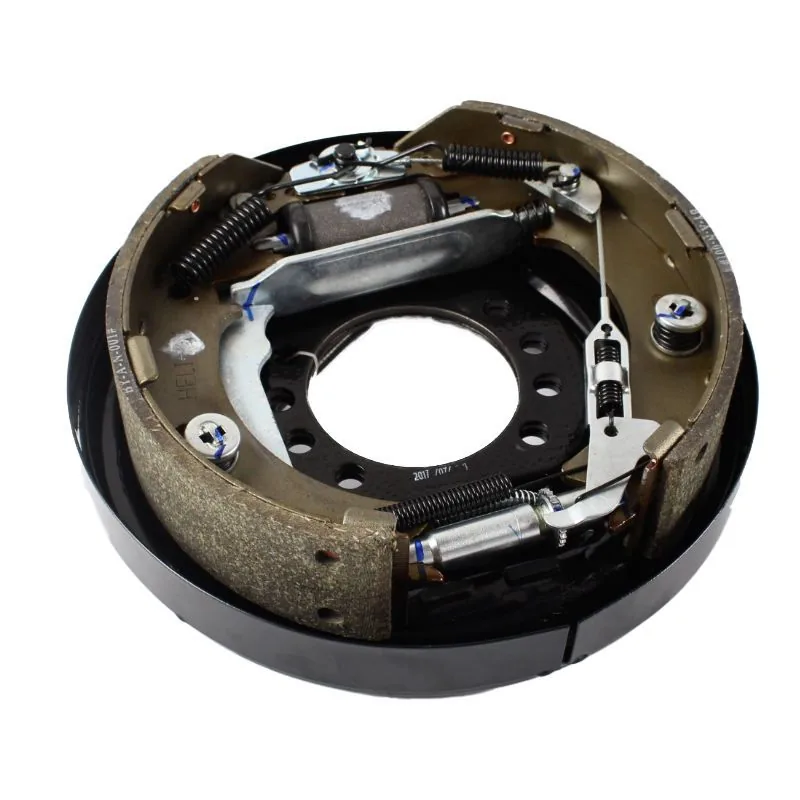

A forklift brake assembly is a pre-assembled wheel brake unit that includes the brake shoes, wheel cylinder, adjuster mechanism, backing plate, and hardware — ready to bolt onto the axle. Instead of rebuilding individual brake components, replacing the complete assembly saves hours of labor and eliminates the risk of misassembled springs or incorrectly adjusted shoes. Kingstream stocks forklift brake assemblies for Toyota, Komatsu, HELI, Hangcha, TCM, Nissan, Mitsubishi, and Hyundai forklifts from 3 to 10 tons capacity.

Complete Assembly vs Rebuilding Individual Parts

A forklift wheel brake assembly is the fast, reliable option for brake overhaul when the backing plate is corroded, the adjuster mechanism is seized, or the wheel cylinder has been leaking brake fluid onto the shoes. Rebuilding requires cleaning the old backing plate, pressing in new anchor pins, installing the wheel cylinder, mounting the shoes, connecting the springs, setting the adjuster, and bleeding the system — a process that takes a skilled mechanic 2-3 hours per wheel. Installing a complete forklift brake assembly takes 30 minutes: unbolt the old unit, bolt on the new one, connect the brake line, and bleed. For fleet maintenance operations where forklift downtime costs money, the labor savings of a complete forklift brake unit usually exceed the higher parts cost. Assemblies are also the best option when the backing plate is rusted or the brake shoe anchor points are worn oval.

Signs Your Brake Assembly Needs Replacement

A forklift brake assembly should be replaced when multiple components have failed simultaneously: the wheel cylinder is leaking and has contaminated the brake shoes with fluid — shoes soaked in brake fluid cannot be cleaned and must be replaced; the adjuster mechanism is seized from corrosion and cannot be freed without damaging the threads; the backing plate has rusted or the shoe contact pads have worn grooves that cause the shoes to stick; or the brake has been consistently pulling to one side, indicating uneven wear that a simple shoe replacement will not correct. When two or more of these conditions exist on the same wheel, replacing the entire forklift drum brake assembly is more cost-effective than rebuilding individual components.

How to Order the Correct Brake Assembly

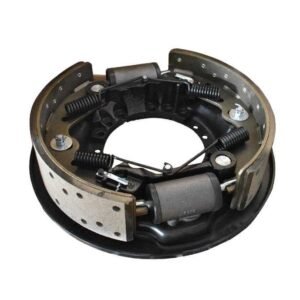

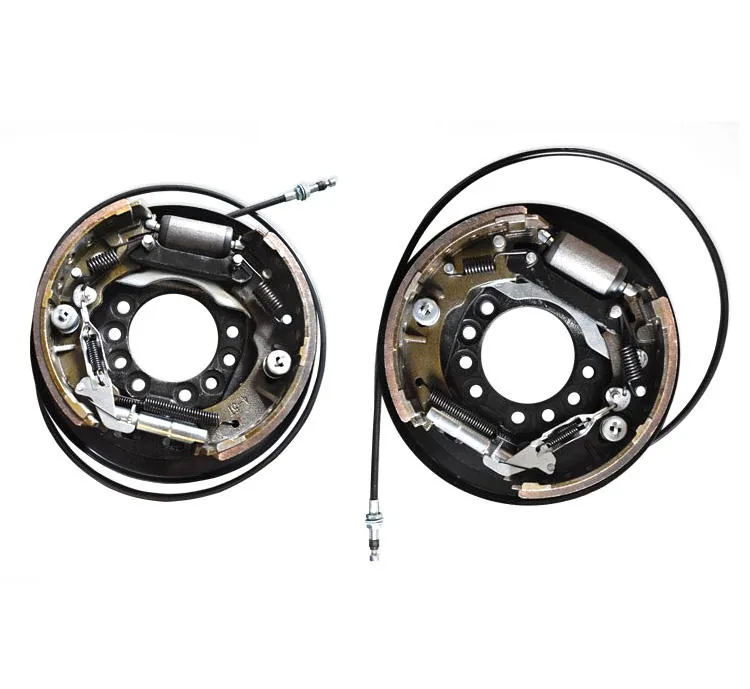

When ordering a forklift brake assembly, verify the forklift capacity — assemblies for 3-ton, 5-ton, and 8-10-ton forklifts are different sizes with different shoe widths and wheel cylinder bores. Confirm whether you need the left or right side assembly — they are mirror images with the wheel cylinder bleeder valve on opposite sides. Check whether your forklift uses drum brakes or disc brakes — drum assemblies include shoes and wheel cylinders, while disc assemblies include calipers and pads. Also verify the bolt pattern to the axle flange. The most reliable method is to send us your forklift brake assy OEM part number — for Toyota electric forklifts, 47403-12810 identifies the correct unit for 7FB15-18 models.

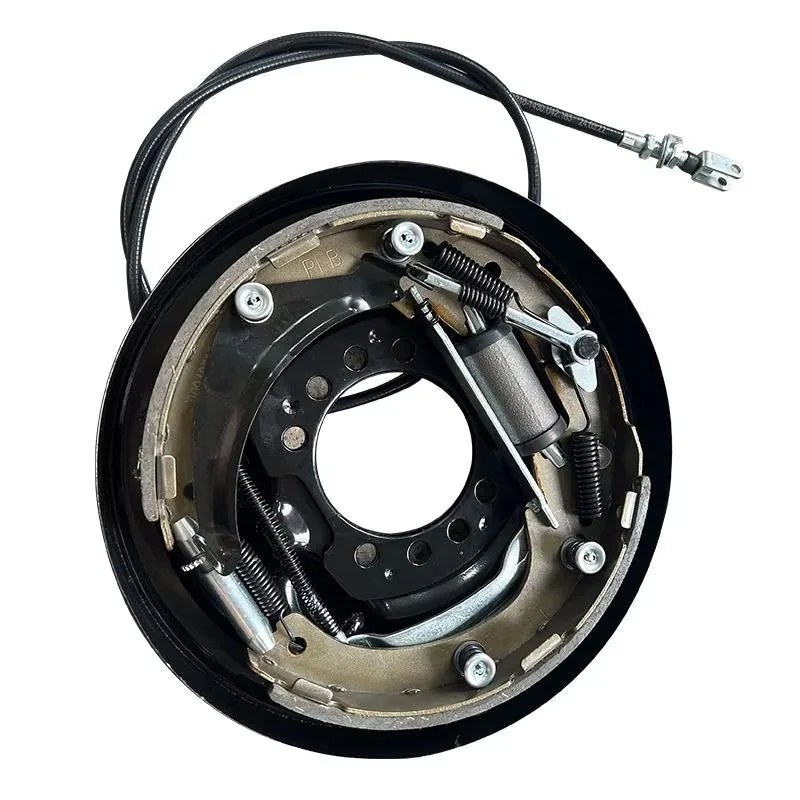

Popular Brake Assembly Cross-Reference

Quality Control at Kingstream

Every forklift brake assembly we ship is inspected: the wheel cylinder is pressure-tested for leaks; the brake shoes are checked for correct lining thickness, arc profile, and bonding integrity; the adjuster mechanism is cycled through its full range to confirm smooth operation; the backing plate is checked for flatness and correct hole positioning; and all springs, retaining clips, and hardware are verified present and correctly installed. You receive a forklift complete brake assembly that bolts on and functions correctly — not a unit with a misaligned shoe that drags or a seized adjuster that prevents proper brake adjustment.

Brake overhaul due? Send us your forklift model and capacity for a fast quote on brake assemblies. For other brake components, browse our complete forklift brake parts catalog.
