Forklift Spare Parts Brake Assembly for 5 Ton Forklift

5-Ton Forklift Brake Assembly — Heavy-Duty Drum Brake Set

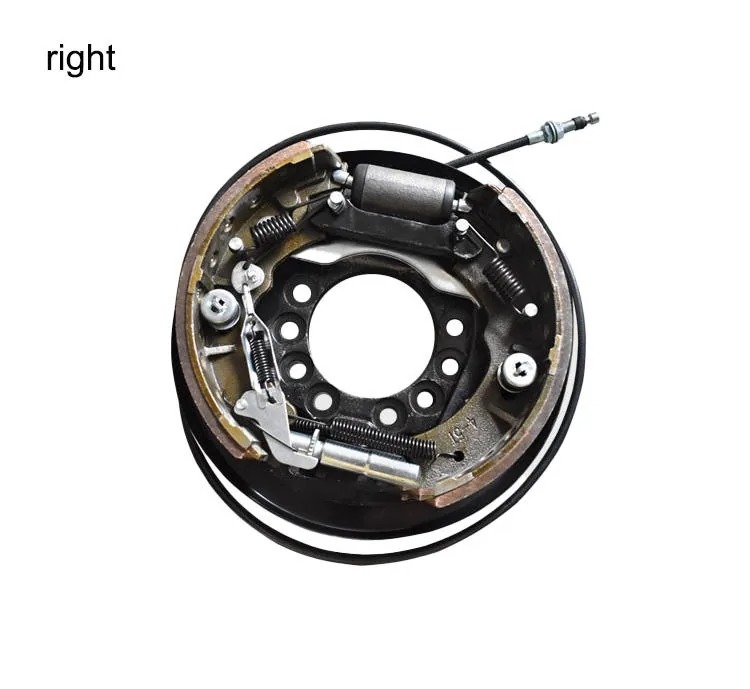

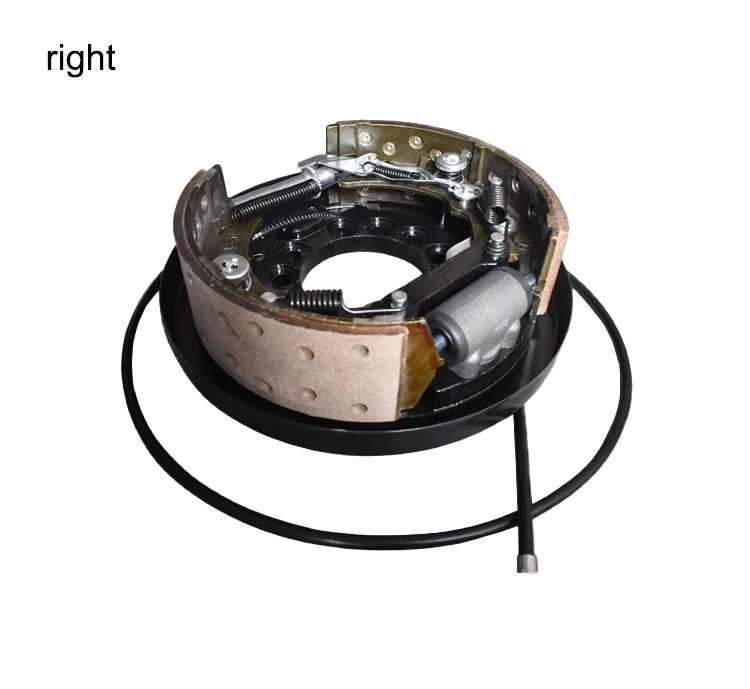

This heavy-duty brake assembly is engineered for 5-ton capacity internal combustion and electric counterbalance forklifts, providing the stopping power required for heavy-load material handling operations. The assembly includes a fully built brake backing plate with pre-installed brake shoes, wheel cylinder, return and hold-down springs, self-adjuster mechanism, and parking brake linkage — all factory pre-adjusted for immediate bolt-on installation. Designed for the demanding duty cycles of 5-ton forklifts operating in ports, steel mills, lumber yards, and heavy manufacturing facilities, this brake assembly uses oversized components with reinforced construction to handle the higher kinetic energy and heat loads generated when braking 5,000 kg loads.

The brake shoes feature extra-thick semi-metallic friction linings (25% thicker than standard 3T linings) bonded and riveted to heavy-gauge steel platforms for extended service life under severe-duty conditions. The wheel cylinder is an oversized twin-piston design with a larger bore diameter that delivers proportionally higher clamping force to match the heavier vehicle weight. The cylinder body is cast iron with honed bores, EPDM rubber seals, and stainless steel pistons for reliable operation with DOT 3 or DOT 4 brake fluid. The backing plate is fabricated from 5mm thick steel plate with reinforced mounting bosses and an anti-corrosion zinc-phosphate coating. High-tensile return springs ensure complete shoe retraction to prevent drag and overheating during travel between stops.

Compatible with HELI CPCD50, CPQD50, Hangcha CPCD50, and other domestic 5-ton forklift models using drum-type front brake systems. This assembly is a direct bolt-on replacement — remove the wheel and drum, disconnect the hydraulic line and parking brake cable, remove four mounting bolts, swap in the new assembly, reconnect, bleed, and reinstall the drum and wheel. After installation, perform a brake bedding procedure: 10-15 moderate stops from low speed to transfer lining material to the drum surface for optimal friction. Check and adjust parking brake cable tension to achieve 3-5 clicks on the handbrake lever at full engagement. For compatible brake drums, master cylinders, and DOT brake fluid, visit our Forklift Brake Parts section.

Technical Specifications

• SKU: BRAKE-ASSY-5T
• Capacity: 5.0 Ton Forklift
• Brake Type: Drum Brake (Pre-Assembled)
• Lining: Extra-Thick Semi-Metallic
• Wheel Cylinder: Oversized Twin-Piston
• Backing Plate: 5mm Steel, Zinc-Phosphate Coated
• Fluid: DOT 3 / DOT 4 Compatible

Compatible Forklift Models

Each brake assembly is factory pre-adjusted and pressure-tested: shoe clearance set to specification, wheel cylinder leak-tested at 1500 PSI, spring tension verified, and parking brake linkage checked for full travel range. The assembly is packaged in a reinforced cardboard box with foam padding and clearly marked with the axle position (left or right). 12-month warranty against manufacturing defects. For fleet orders, paired left-right sets, or compatibility verification with your specific 5-ton forklift model, contact our support team with your forklift model, serial number, and axle configuration details.
