Forklift Brake Wheel Cylinder

Forklift Brake Wheel Cylinder： Hydraulic Drum Brake Actuation

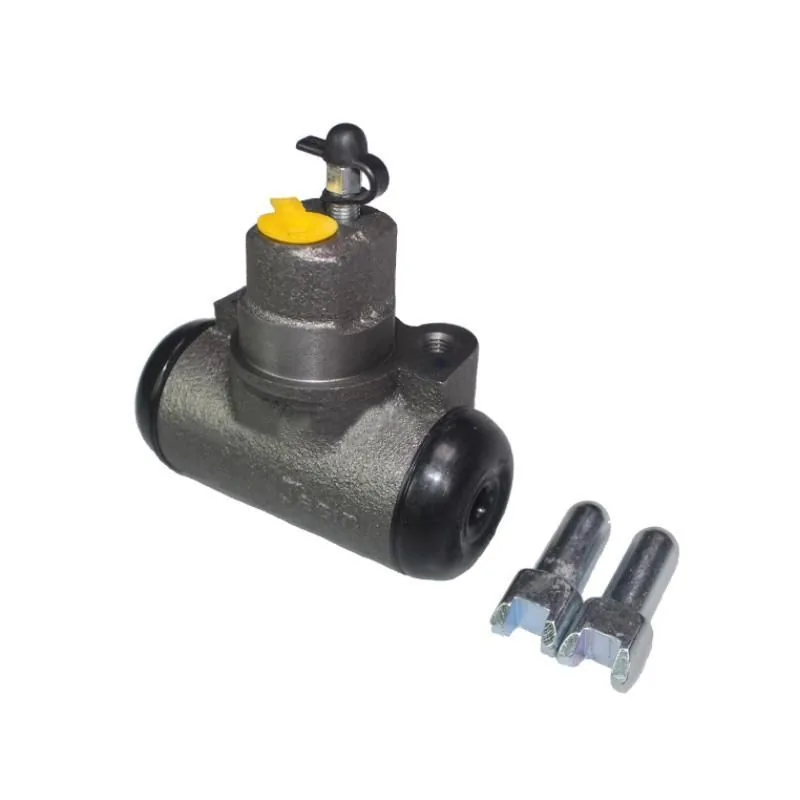

A forklift brake wheel cylinder converts hydraulic pressure from the master cylinder into mechanical force that pushes the brake shoes against the drum. When the cylinder leaks or seizes, that wheel loses braking force — causing the forklift to pull to one side during braking and dramatically increasing stopping distance. Kingstream stocks replacement forklift brake wheel cylinders for Toyota, Komatsu, HELI, Hangcha, TCM, Nissan, Mitsubishi, Hyundai, and Linde forklifts from 1 to 15 tons capacity.

How a Wheel Cylinder Works

The forklift wheel cylinder is a simple but precise hydraulic component. It consists of a cast iron or aluminum body with a cylindrical bore, two opposing pistons with rubber seals, and dust boots on each end. When the brake pedal is pressed, brake fluid from the master cylinder enters the wheel cylinder through an inlet port between the two pistons. Hydraulic pressure pushes both pistons outward simultaneously, forcing the brake shoes against the drum. When the pedal is released, the brake shoe return springs push the pistons back, and fluid returns to the master cylinder. A forklift brake cylinder operates in a harsh environment — exposed to brake dust, moisture, and heat from the drum — which is why the piston seals and dust boots are the primary wear items.

Signs Your Wheel Cylinder Needs Replacement

A failing forklift brake wheel cylinder produces these symptoms: brake fluid leaking from the dust boot area, visible as wetness or staining on the backing plate behind the wheel — this indicates the piston seal has failed; the forklift pulls to one side during braking because the leaking cylinder on the opposite side generates less braking force; the brake pedal feels soft or spongy due to air entering the system through a leaking cylinder seal; and in cases where the cylinder has seized from corrosion, that wheel provides no braking at all, and the brake drum on that wheel stays cool while the others heat up during use. A seized forklift drum brake cylinder is particularly dangerous because the operator may not notice the reduced braking until an emergency stop is required.

How to Order the Correct Wheel Cylinder

When replacing a forklift brake wheel cylinder, verify the bore diameter — this determines the hydraulic force multiplication and must match the original specification. Check the mounting bolt pattern and the inlet port thread size and type. Confirm which wheel position the cylinder fits — left and right cylinders are often mirror images with the bleeder valve on different sides. Also verify the piston diameter and whether the push rods are included or must be transferred from the old cylinder. The most reliable method is to send us your original forklift wheel cylinder part number or the forklift model and capacity. For Toyota forklifts, common OEM numbers like 47410-10480-71 provide an exact match.

Popular Wheel Cylinder Cross-Reference

Quality Control at Kingstream

Every forklift brake wheel cylinder we ship is inspected: the bore is checked for surface finish and diameter — any pitting, scoring, or oversize condition causes immediate seal failure; the pistons are verified for correct diameter and smooth movement in the bore without binding; the rubber seals and dust boots are inspected for correct material, proper fit, and freedom from cuts or manufacturing defects; and the inlet port threads are checked with a go/no-go gauge. You receive a forklift hydraulic wheel cylinder that holds pressure and actuates smoothly — not a cylinder with a poorly finished bore that destroys the seals within weeks.

Brake pulling to one side? Send us your cylinder part number or forklift model for a fast quote. For other brake components, browse our complete forklift brake parts catalog.
