Forklift Flywheel Ring Gear 490B-05102 – Xinchai 490B

Forklift Flywheel Ring Gear 490B-05102 — Xinchai 490B Diesel Engine Flywheel Ring Gear for Forklift Trucks

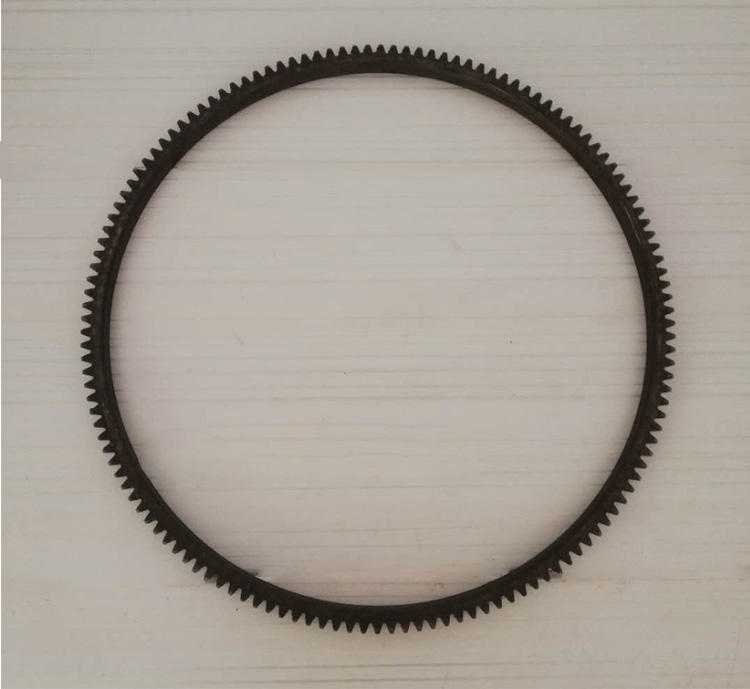

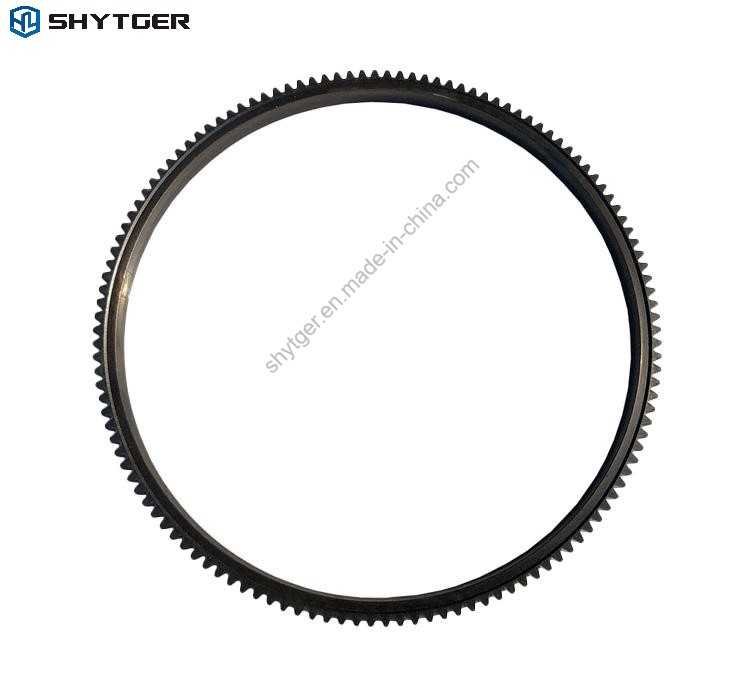

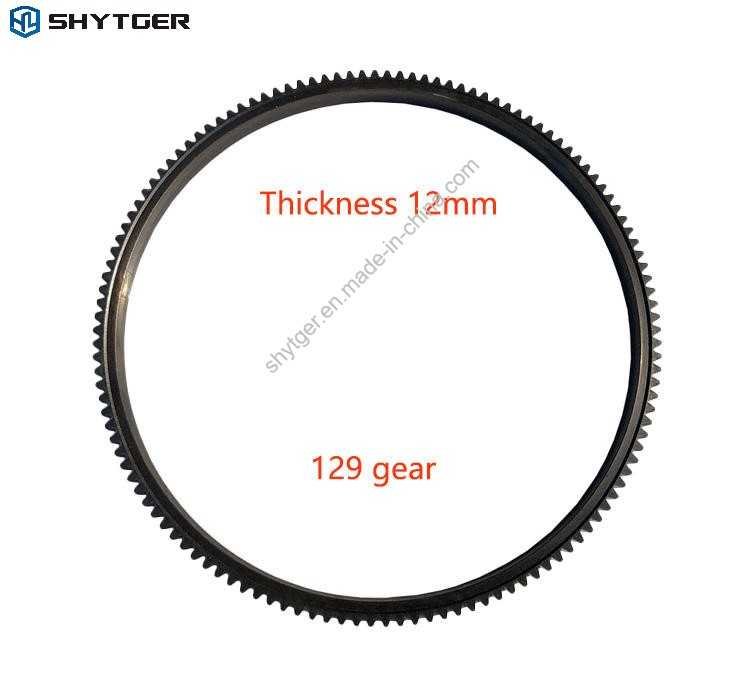

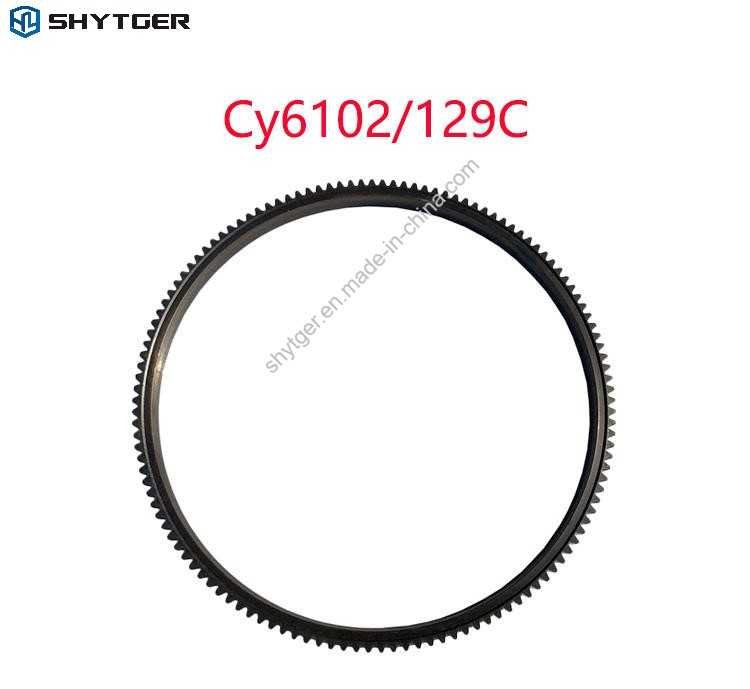

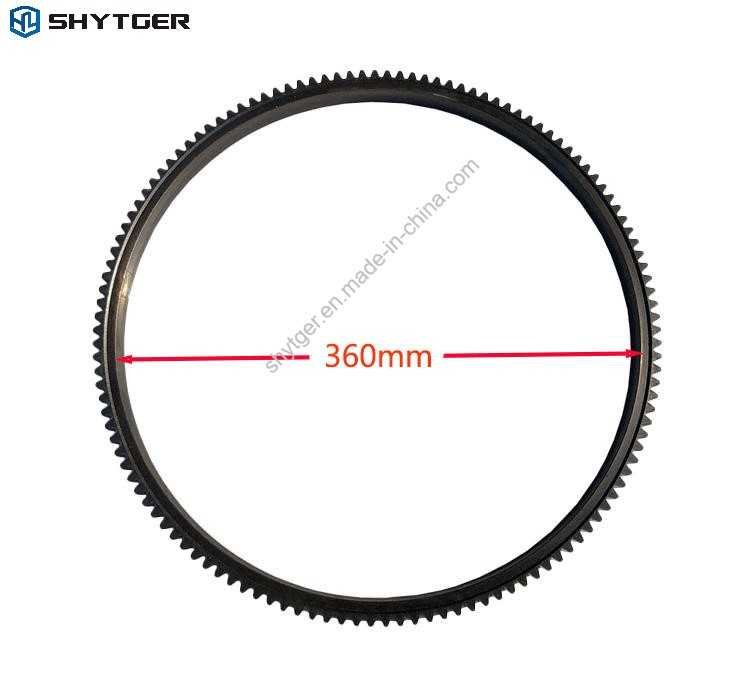

This forklift flywheel ring gear part number 490B-05102 is a Kingstream OEM replacement flywheel ring gear for Xinchai 490B 4-cylinder diesel engines in 1-3.5 ton forklift trucks. The ring gear is the toothed outer ring heat-shrunk onto the engine flywheel — the starter motor pinion gear engages these teeth to crank the engine during starting. Over time, ring gear teeth wear from repeated starter engagement, especially in applications with frequent start-stop cycles. 5kg with 100×100×40cm carton box packaging. 100% professional tested. 7-10 day delivery. Kingstream OEM quality for Xinchai 490B diesel engine forklift fleet operators.

INSTALLATION PROCEDURE: Step 1 — Remove the transmission and clutch assembly to access the flywheel. Step 2 — Remove the flywheel from the crankshaft by removing the flywheel bolts in a cross-pattern. Step 3 — Use a hammer and punch to drive the old ring gear off the flywheel — work evenly around the circumference. Step 4 — Clean the flywheel ring gear mounting surface with a wire brush. Step 5 — Heat the new ring gear evenly with a torch or oven to approximately 200-250°C (400-480°F) — the thermal expansion allows it to slip over the flywheel. Step 6 — Quickly position the heated ring gear onto the flywheel with the chamfered teeth facing the starter side. Step 7 — Allow the ring gear to cool and shrink onto the flywheel for a secure interference fit. Step 8 — Reinstall the flywheel onto the crankshaft with new bolts and thread locker, torquing in a cross-pattern. Step 9 — Reinstall the clutch and transmission. Step 10 — Test starter engagement for smooth, grind-free cranking. 100% professional tested. Kingstream OEM.

SYMPTOMS OF RING GEAR FAILURE: Grinding or screeching noise during engine cranking, starter pinion failing to engage or slipping, visible worn or chipped teeth on the ring gear, engine only cranking in certain flywheel positions, and starter motor pinion gear damage from engaging worn ring gear teeth. For Xinchai 490B diesel engine fleet flywheel maintenance, contact us. Kingstream OEM.

Technical Specifications

100% professional tested. Kingstream OEM. Contact us.
