Part Number CDB2-F15N6-A0-02 Forklift Parts Multi-Way Valve

CDB2-F15N6-A0-02 Multi-Way Control Valve for Forklift Hydraulic Systems

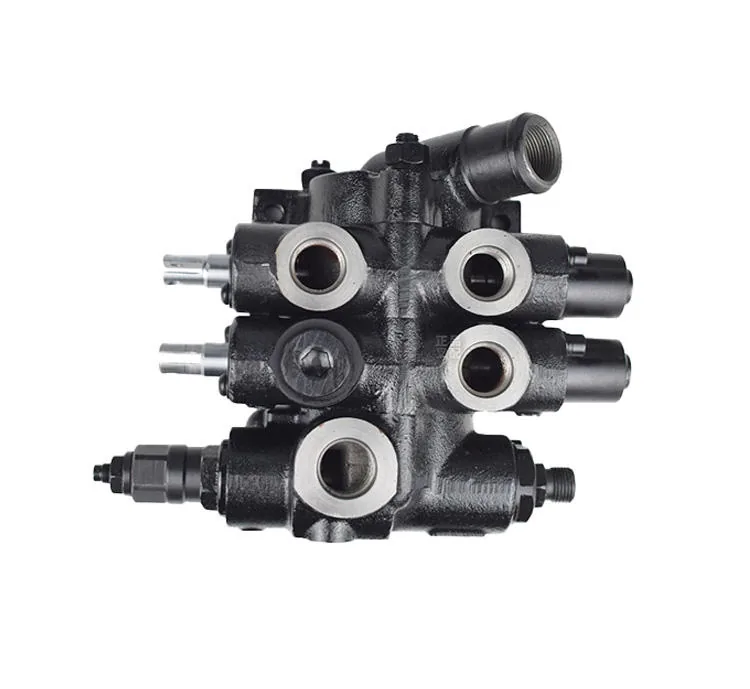

The CDB2-F15N6-A0-02 is a multi-way monoblock hydraulic control valve designed for 1-5 ton forklift hydraulic systems, providing independent directional control of multiple mast and attachment functions through its multi-spool configuration. The “N6” variant designation indicates a specific combination of spool types, port arrangements, and auxiliary function configurations commonly specified for standard forklift mast control applications — typically including lift/lower, tilt forward/backward, and one or two auxiliary circuits for attachments such as side shifters, fork positioners, or rotators. This valve serves as the central hydraulic control hub between the main pump and all mast-mounted hydraulic actuators, with each spool section operating independently to provide the operator with precise, proportional control of each function.

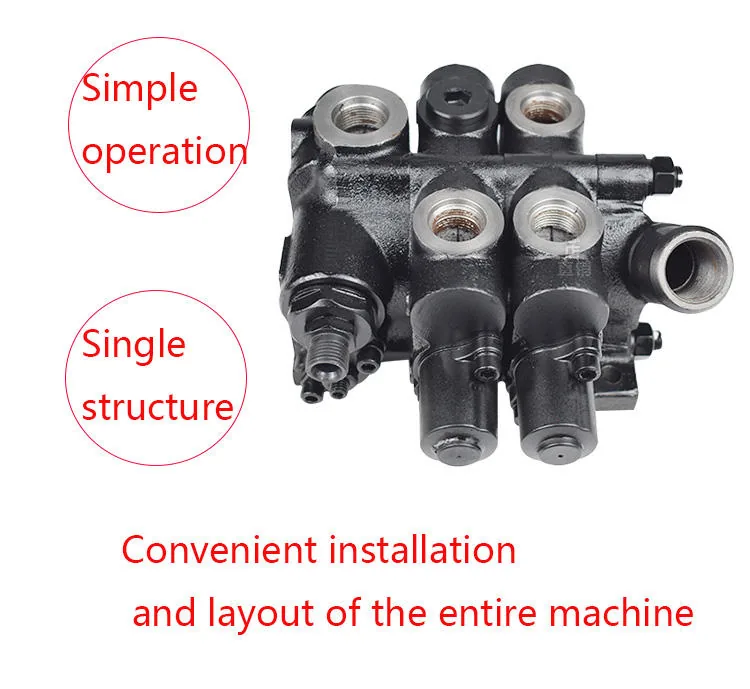

The valve body is manufactured from high-grade gray cast iron, cast as a single monoblock housing that eliminates the inter-section bolt joints and O-ring seals that are potential leak paths in sectional valve assemblies. After casting, the body undergoes CNC machining to achieve parallel spool bores with a surface finish of Ra 0.4μm or better, providing the precision foundation required for the hardened 20CrMnTi alloy steel spools that operate within a diametral clearance of 8-15 microns. Each spool surface is case-hardened to 58-62 HRC for wear resistance during millions of actuation cycles. Every spool section incorporates an integrated load check valve that prevents load drift during directional transitions, and the adjustable main relief valve — a direct-acting poppet design — provides complete hydraulic circuit over-pressure protection. The spring-centered spool design ensures automatic return to the neutral/hold position when the operator releases the control lever.

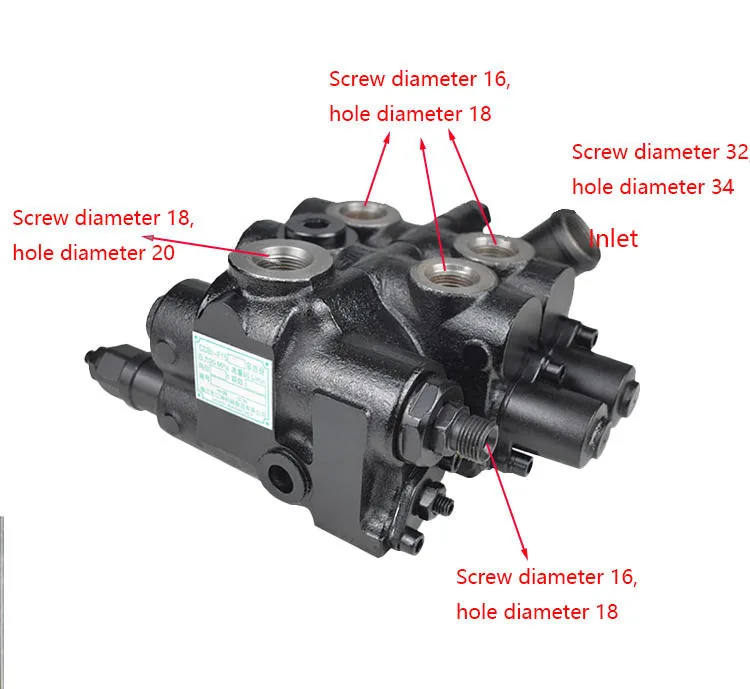

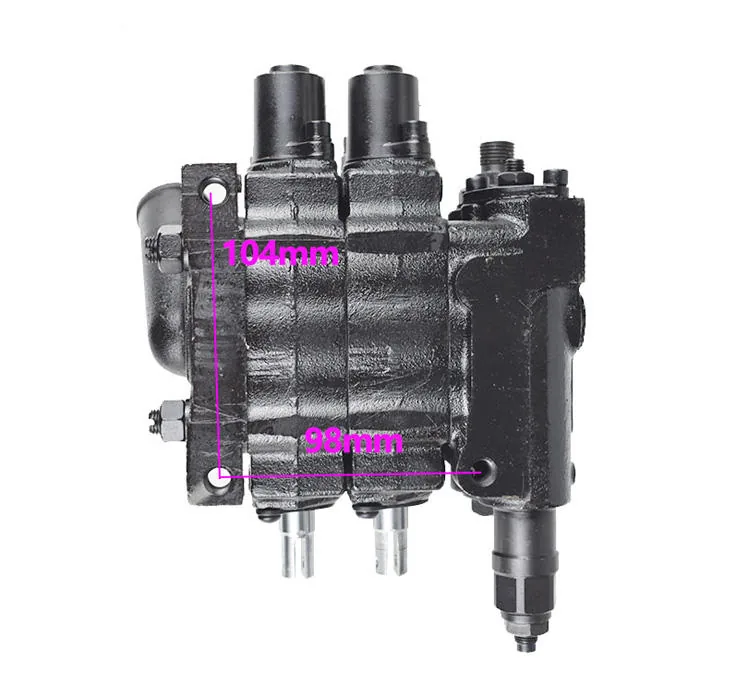

The open-center circuit architecture allows pump flow to return to the hydraulic reservoir at low back pressure when all spools are centered, minimizing parasitic pump load and reducing hydraulic oil heat generation during idle periods. Direct replacement for HELI, Hangcha, Lonking, and other domestic forklifts using CDB2-F15N6 series control valves in the 1-5 ton class. Before installation, verify the port thread sizes (typically metric M14-M22), the number and configuration of spool sections, and the mounting bolt center distance match your existing valve. Flush the hydraulic system and replace the return filter during valve replacement to remove any accumulated wear particles. Fill with manufacturer-specified hydraulic oil — typically ISO VG 32 or 46 — after completing all hydraulic connections. For compatible hydraulic hoses, quick-connect fittings, gear pumps, cylinders, and complete hydraulic system service kits, visit our Forklift Engine Parts section. For hydraulic valve selection and system design guidance, refer to Bosch Rexroth industrial hydraulics resources.

Technical Specifications

• PN: CDB2-F15N6-A0-02
• Type: Multi-Spool Monoblock Directional Control Valve
• Capacity: 1.0 – 5.0 Ton Forklift
• Body: Gray Cast Iron, CNC-Machined, Honed Bores
• Spools: 20CrMnTi Hardened Steel, 58-62 HRC, Spring-Centered
• Clearance: 8-15 Micron Diametral Fit
• Relief Valve: Adjustable Direct-Acting Poppet Type
• Circuit: Open-Center with Load Checks on All Sections
• Oil: ISO VG 32/46 Hydraulic Oil

Compatible Forklift Applications

Each CDB2-F15N6-A0-02 valve undergoes comprehensive pre-shipment testing: individual spool stroke and return force measurement, relief valve setting verification at rated pressure, internal leakage testing at 150 bar for 3 minutes per spool, and full function cycle testing with heated hydraulic oil to verify consistent performance across the operating temperature range. The valve ships with all ports capped to prevent contamination, wrapped in VCI anti-corrosion paper, and packed in a foam-lined reinforced carton. 12-month warranty against manufacturing defects. For technical assistance with valve identification, hydraulic system troubleshooting, or fleet maintenance programs, contact our support team with your forklift model, serial number, and photos of your existing valve and nameplate.
