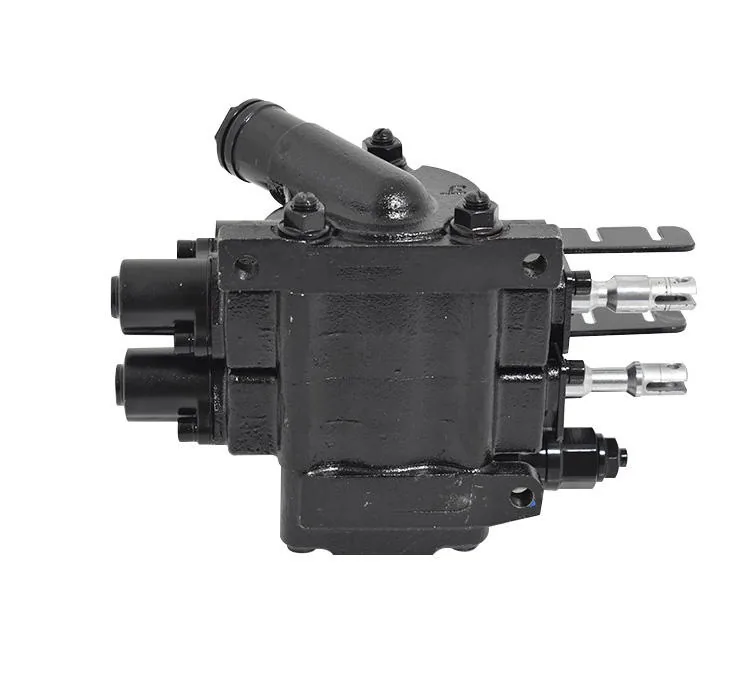

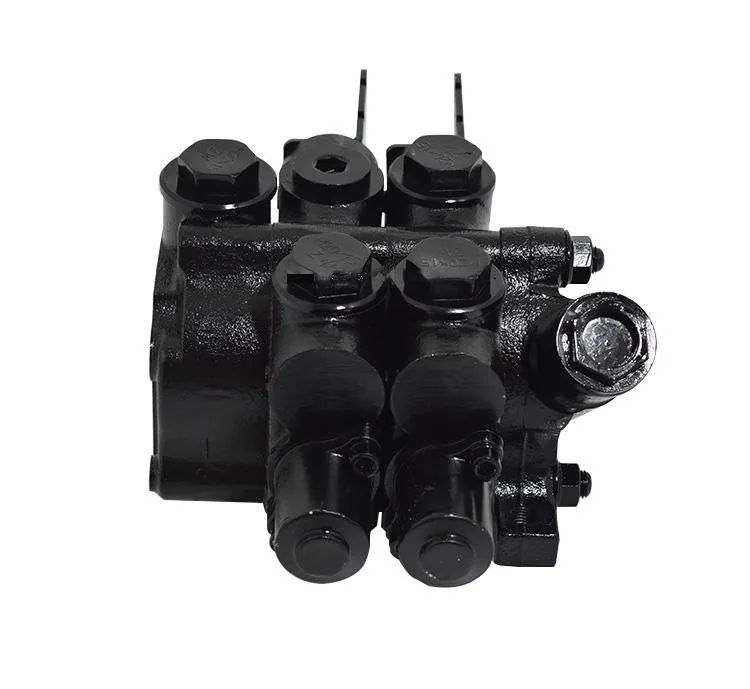

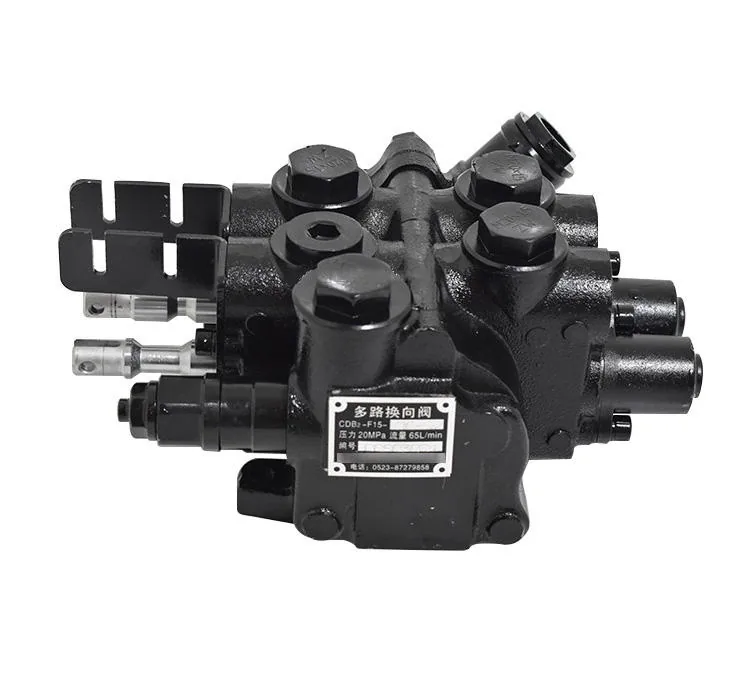

CDB2-F15DC-02 Multi-Way Control Valve for Electric Forklifts

The CDB2-F15DC-02 is a multi-way hydraulic control valve specifically engineered for 1-3 ton electric counterbalance forklifts, including HELI CPD10-CPD30, Hangcha CPD10-CPD30, BYD ECB series, and other battery-electric material handling equipment. This valve is distinguished from its IC-engine counterpart by optimized port sizing, spool metering characteristics, and flow passage geometry calibrated specifically for the lower, more consistent flow rates produced by electric motor-driven gear pumps — typically 15-30 L/min compared to the 20-40 L/min of IC engine-driven pumps. Electric forklifts demand precise low-speed hydraulic control for warehouse aisle maneuvering and rack placement operations, and the CDB2-F15DC delivers this through carefully designed spool metering notches that provide smooth, proportional flow control even at small spool displacements, enabling millimeter-precise mast positioning critical for high-bay pallet rack operations.

The valve body is precision-cast from high-grade gray iron and CNC-machined to achieve parallel honed spool bores with a surface finish of Ra 0.4μm or better. Each spool is manufactured from hardened and ground 20CrMnTi alloy steel with case-hardened surfaces to 58-62 HRC, operating with a precise diametral clearance of 8-15 microns in the honed bore. The DC variant designation indicates specific spool metering profiles and port flow characteristics optimized for the constant-displacement electric pump flow curve, which differs fundamentally from the engine-RPM-dependent flow curve of IC forklifts — electric pumps deliver full flow from zero RPM, requiring different spool feathering characteristics for smooth operation. Integrated load check valves on each section prevent load drift during directional transitions, and the adjustable main relief valve provides system over-pressure protection. The open-center circuit design allows pump flow to return to the hydraulic reservoir at low back pressure when spools are centered, minimizing battery energy consumption during idle.

Direct bolt-on replacement for electric HELI CPD10-CPD30, Hangcha CPD10-CPD30, BYD ECB series, Lonking CPD series, and other 1-3 ton electric forklifts using CDB2-F15DC series control valves. Verify port thread sizes, spool function assignments, and mounting bolt pattern before installation. The electric forklift hydraulic system operates at lower oil temperatures than IC forklifts, typically 40-60°C, so standard ISO VG 32 hydraulic oil provides optimal viscosity. Flush the hydraulic system and replace the return filter during valve replacement to remove any accumulated wear particles from the previous valve. For compatible electric hydraulic pump motors, controllers, hoses, and cylinders, visit our Forklift Engine Parts section. For electric forklift hydraulic system specifications, refer to HELI Forklift technical documentation.

Technical Specifications

• PN: CDB2-F15DC-02
• Type: Electric Forklift Multi-Way Control Valve
• Capacity: 1.0 – 3.0 Ton Electric Forklift
• Flow Rate: 15-30 L/min (Electric Pump)
• Body: Gray Cast Iron, Honed Bores Ra 0.4μm
• Spools: Hardened 20CrMnTi Steel, DC Metering Profile
• Relief Valve: Adjustable Poppet Type
• Circuit: Open-Center with Load Checks
• Oil: ISO VG 32 Electric Forklift Hydraulic Oil

Compatible Electric Forklift Models

Each CDB2-F15DC-02 valve undergoes full function testing including spool force measurement, relief valve setting verification, internal leakage testing at rated pressure, and cycle testing with electric pump-simulated flow rates. The valve ships with all ports sealed, wrapped in VCI anti-corrosion paper, and packed in a foam-lined reinforced carton. 12-month warranty against manufacturing defects. Note for electric forklift maintenance: always disconnect the battery before servicing any hydraulic component to prevent accidental pump motor activation. For fleet electric forklift hydraulic service programs, contact our team with your forklift model and serial number.
