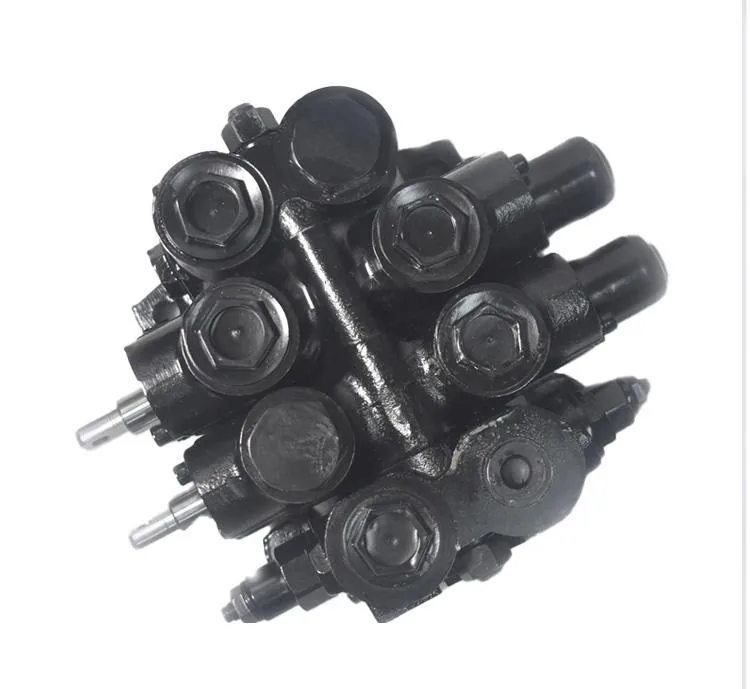

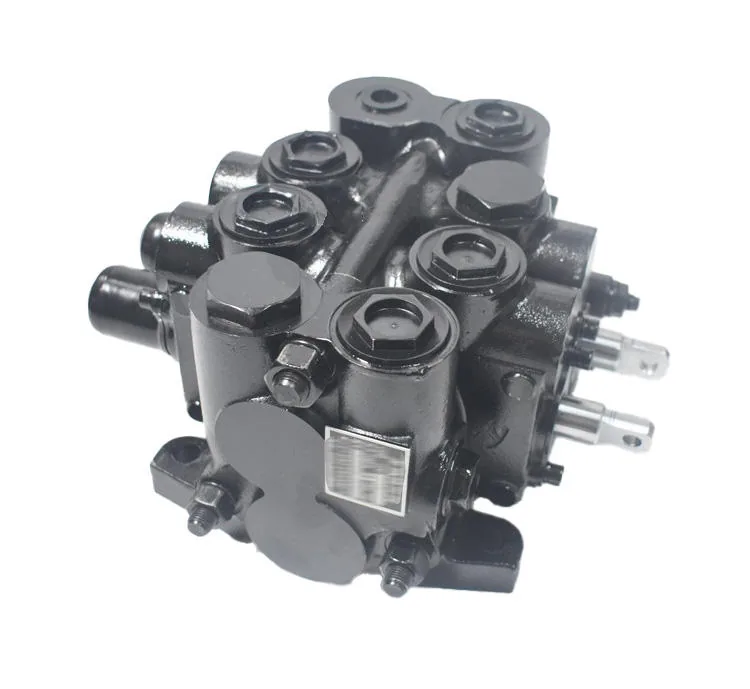

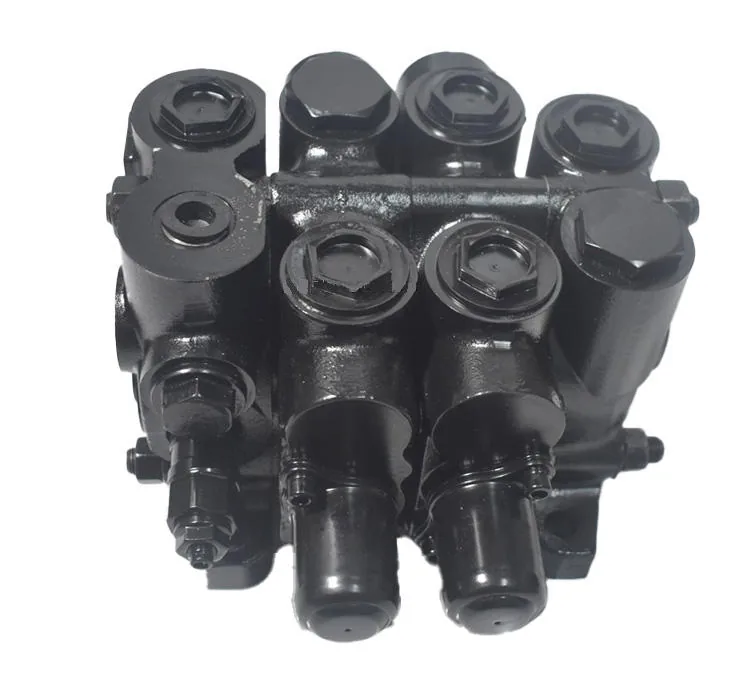

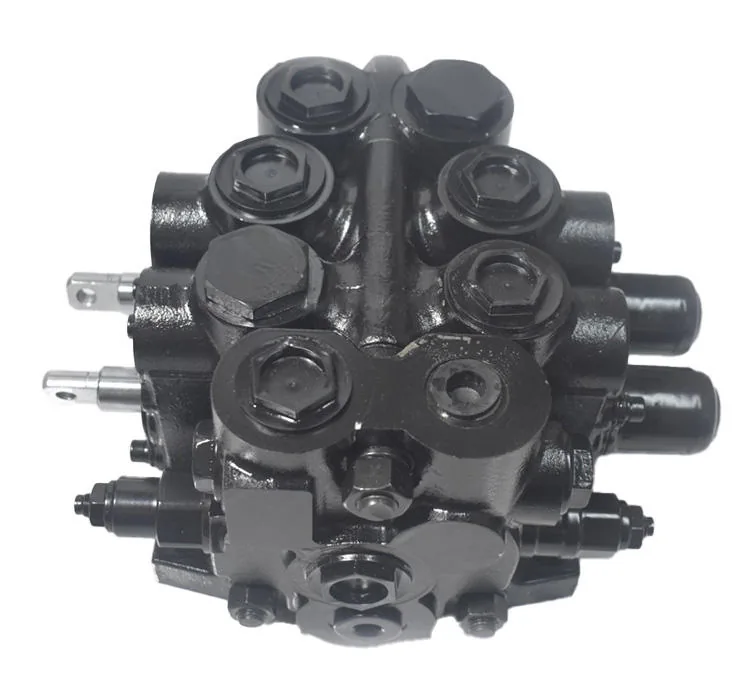

CDB-F20-02 Mast Control Valve — Multi-Way Monoblock for 5-10 Ton Forklifts

The CDB-F20-02 is a multi-way hydraulic monoblock control valve engineered specifically as the mast control valve for 5-10 ton heavy-duty internal combustion counterbalance forklifts, including HELI K50-K100, Hangcha CPCD50-CPCD100, and Lonking LG50-LG100DT series. This valve serves as the central hydraulic distribution hub between the main hydraulic pump and all mast-mounted functions — distributing pressurized hydraulic oil through independent spool sections to the lift cylinders (for raising and lowering the mast assembly), tilt cylinders (for forward and backward mast angle adjustment), and auxiliary circuits (for attachments such as side shifters, fork positioners, or rotators). The monoblock body construction integrates all spool sections in a single cast iron housing, eliminating external inter-section plumbing, O-ring seals between sections, and the bolt-together assembly points that are common leak sources in sectional valve stacks. This design philosophy dramatically reduces potential hydraulic leak points while providing a more compact overall package suitable for the space-constrained chassis installations of forklift counterweights.

The valve body is precision-cast from high-grade gray iron and then CNC-machined to achieve parallel spool bores with a surface finish of Ra 0.4μm or better. Each spool is manufactured from hardened and ground alloy steel (typically 20CrMnTi with case-hardened surfaces to 58-62 HRC), operating with a diametral clearance of 8-15 microns in the honed bore for smooth, low-friction actuation while maintaining minimal internal leakage — typically less than 15cc/min at rated pressure. Each spool section incorporates an integrated load check valve with a hardened steel poppet and seat that prevents load drift during directional transitions by trapping pressurized oil in the cylinder circuit until the spool is deliberately shifted. The adjustable main relief valve is a direct-acting poppet type with a spring-loaded adjustment screw that allows field-setting of system pressure between 160-250 bar depending on the specific forklift hydraulic system requirements. All spools are spring-centered to neutral position through pre-loaded return springs, ensuring the mast functions return to the hold/neutral position automatically when the operator releases the control lever — a critical safety feature that prevents unintended mast movement.

The CDB-F20-02 uses an open-center circuit architecture where pump flow is directed through the valve gallery and returns to tank at low pressure (typically 5-15 bar) when all spools are in the neutral position. This design minimizes parasitic pump load during idle periods, reducing both fuel consumption on IC forklifts and heat generation in the hydraulic oil — an important consideration for forklifts operating in high-ambient-temperature environments where hydraulic oil temperatures can approach 80-90°C under continuous load. Direct bolt-on replacement for 5-10 ton HELI K50-K100, Hangcha CPCD50-CPCD100, Lonking LG50-LG100DT, and other domestic forklift models using CDB-F20 series mast control valves. Before installation, verify port thread sizes (typically metric M18-M27), spool function assignments matching your specific forklift configuration, and the mounting bolt center distance. Always flush the hydraulic system and replace the return line filter to remove any metal particles or contamination. Fill with clean ISO VG 46 hydraulic oil (or the viscosity grade specified by your forklift manufacturer) after installation. For compatible hydraulic hoses, quick-connect fittings, gear pumps, lift cylinders, and complete hydraulic system service kits, visit our Forklift Engine Parts section. For hydraulic system design references and valve specifications, consult Bosch Rexroth industrial hydraulics documentation.

Technical Specifications

• PN: CDB-F20-02
• Type: Multi-Way Monoblock Directional Control Valve
• Capacity: 5.0 – 10.0 Ton Forklift
• Body: High-Grade Gray Cast Iron, CNC-Machined
• Spools: 20CrMnTi Alloy Steel, Case-Hardened 58-62 HRC
• Internal Leakage: <15cc/min at Rated Pressure
• Relief Valve: Direct-Acting Poppet, Adjustable 160-250 bar
• Circuit Type: Open-Center with Load Checks
• Oil: ISO VG 32/46/68 Hydraulic Oil

Compatible Forklift Models

Each CDB-F20-02 valve undergoes a comprehensive pre-shipment testing protocol: individual spool function verification (full stroke in both directions with force measurement), pressure relief valve setting confirmation at rated pressure, internal leakage test at 200 bar for 3 minutes per spool, and full function cycle test with hydraulic oil at 50°C to verify thermal stability. The valve ships with all ports capped to prevent contamination ingress, wrapped in VCI anti-corrosion paper, and packed in a foam-lined reinforced carton. 12-month warranty against manufacturing defects. Installation critical check: after mounting and connecting all hydraulic lines, start the engine and cycle each mast function through full travel 5-10 times at low RPM to purge air from the system before applying full load. For fleet hydraulic system maintenance programs or valve configuration assistance, contact our technical support team with your forklift model, serial number, and a photo of your existing valve nameplate.
