Forklift Synchronizer

Forklift Synchronizer： Gearbox Synchromesh Rings & Assemblies for Mechanical Transmissions

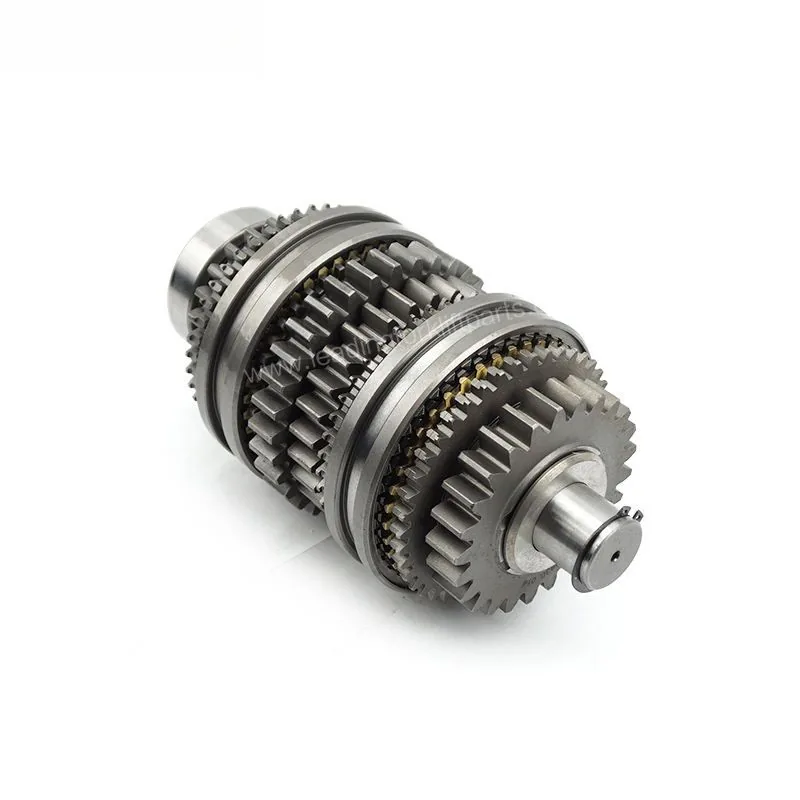

A forklift synchronizer is the brass or sintered-metal cone clutch inside a manual transmission that matches the rotational speed of the selected gear to the output shaft before the dog teeth engage — it is what enables smooth, grind-free gear changes without double-clutching. When synchronizers wear, shifting becomes difficult, gears grind during engagement, and the transmission may jump out of gear under load. Kingstream stocks replacement forklift synchronizers for Toyota, HELI, and ISUZU mechanical transmissions. The 12496-40201 and 12493-42001 are Toyota synchronizer rings, the BSX-12493-41000 covers HELI/ISUZU gearboxes, and all are inspected for cone surface condition, spline fit, and friction material integrity.

Synchronizers operate through three sequential phases during a gear change. First, the shift fork pushes the synchronizer sleeve toward the selected gear — the sleeve pushes against the synchronizer ring, which presses its conical inner surface against a matching cone on the gear. The friction between the two cones speeds up or slows down the gear to match the output shaft speed — this is the synchronization phase. Once speeds are matched, the sleeve slides over the synchronizer ring and its internal splines engage the dog teeth on the gear, locking it to the output shaft. A forklift synchro ring wears because the brass or sintered friction surface gradually erodes with each shift — as the cone wears, the ring moves closer to the gear, reducing the clearance that allows the sleeve to engage. When the clearance reaches zero, the sleeve contacts the dog teeth before speeds are synchronized, producing the characteristic grinding sound of a worn synchronizer. The 12496-40201 is the synchronizer ring for Toyota 7FG and 8FD series transmissions. The BSX-12493-41000 is specified for HELI forklifts with ISUZU-sourced gearboxes — these transmissions use a reinforced synchronizer design for the frequent forward-reverse shifts typical of forklift duty cycles. A forklift transmission synchronizer that is ignored will eventually chip or break the dog teeth on the gear itself, requiring complete gear replacement rather than just a synchronizer ring.

When replacing forklift synchronizer rings, always inspect the matching gear cone surface for scoring, galling, or blue discoloration from overheating. A scored gear cone will destroy a new synchronizer ring within weeks. Replace transmission oil after any synchronizer replacement — the brass or sintered metal particles from the worn rings contaminate the oil and will accelerate wear on the new synchronizers. Check the shift fork for wear at the pads that contact the synchronizer sleeve — a worn fork does not move the sleeve the full distance, preventing complete engagement and causing the transmission to jump out of gear. Adjust shift linkage after reassembly to ensure full engagement of all gears.

Popular Synchronizer Cross-Reference

Quality Control at Kingstream

Every forklift synchronizer we ship is inspected for cone surface finish, inner spline fit on the gear cone, and outer spline fit on the synchronizer sleeve. The friction material or brass surface is checked for galling, scoring, or uneven wear patterns. Dimensional checks confirm the ring thickness and the clearance gap between the ring and gear face. You receive synchronizers that match speeds smoothly and engage cleanly — not synchronizer rings with a worn cone surface that grinds on the first shift.

Gears grinding or jumping out? Send us your transmission model for a fast quote. Browse our complete transmission parts catalog.
