Customizable Fork Sleeve Protector — 1220×125×50mm Steel Fork Cover for Multi-Brand Forklifts

This customizable fork sleeve protector is a 1220mm (48-inch) steel fork cover designed to slide over existing forklift forks, protecting both the fork surface and the load from direct metal-to-metal contact while extending the effective load-bearing area for handling delicate, painted, or finished goods. With a cross-section of 125mm wide by 50mm thick — matching the most common ITA Class II standard fork profile — this sleeve fits Toyota, Komatsu, HELI, CAT, Mitsubishi, Hangcha, and most Asian-manufactured counterbalance forklifts in the 2-5 ton capacity range. The steel construction provides durability that plastic or rubber fork boots cannot match, while the customizable design allows for length, width, and surface finish modifications to suit specific fork dimensions and application requirements. Fork sleeves are widely used in appliance logistics, furniture handling, paper roll transport, and any operation where fork marks or scratches on the load are unacceptable. By creating a smooth, continuous contact surface between the fork and the load, the sleeve protector distributes weight evenly and eliminates point-load gouging that bare fork tips cause on palletized goods.

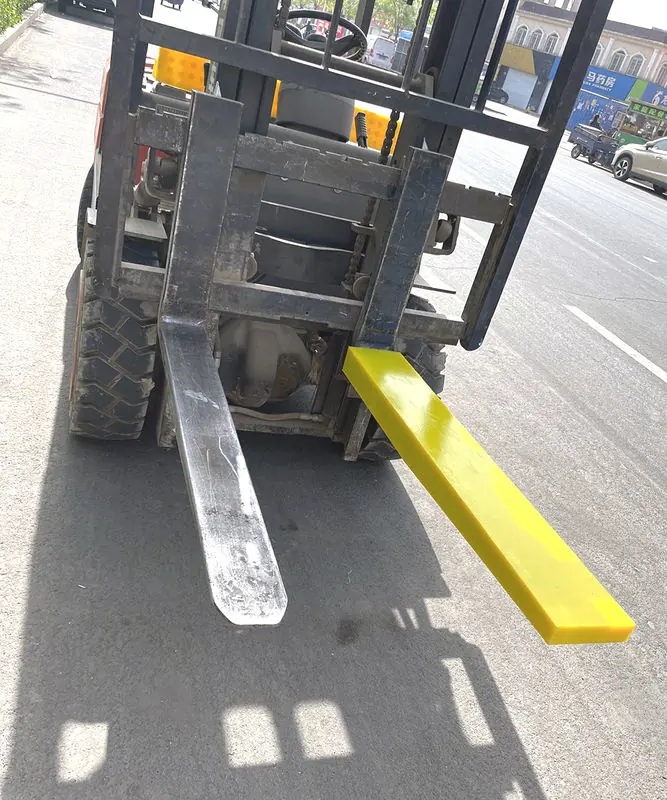

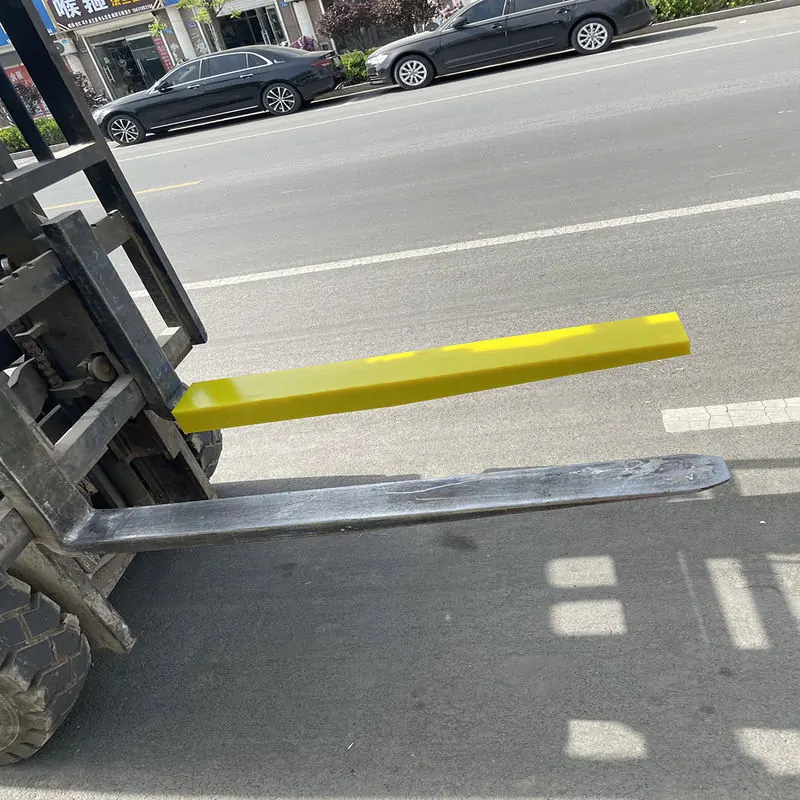

Installing fork sleeve protectors requires no tools — simply slide the sleeve over each fork until it bottoms out against the fork carriage heel. The 1220mm length provides full fork coverage on standard 48-inch forks, but custom lengths are available for longer fork applications. Before installation, inspect the parent forks for burrs, weld spatter, or rust scale that could prevent the sleeve from sliding fully onto the fork — any obstruction creates a gap between the sleeve and the fork surface, concentrating stress and causing premature sleeve deformation at the gap point. The sleeve interior should be periodically cleaned to remove accumulated debris that can score the parent fork surface over time. Common failure modes include longitudinal cracking at the bend radius from repeated flexing, heel deformation from impact with the carriage face during aggressive loading, and corrosion at the open end where moisture wicks between the sleeve and the parent fork. A sleeve that no longer fits snugly indicates the parent fork has worn or the sleeve channel has stretched — replace both if the gap exceeds 2mm.

This fork sleeve protector is compatible with most 2-5 ton forklifts using ITA Class II standard forks. Custom dimensions and surface finishes are available — specify your fork width, thickness, and required length when ordering. Browse our Fork Sleeve category for additional sizes and fork accessories. For material handling best practices, visit OSHA Material Handling Standards. Bulk orders and OEM customization accepted — contact us with your specifications.

Technical Specifications

Compatible Forklift Brands

Each sleeve protector is inspected for dimensional accuracy and surface finish before shipment. Standard export packaging. 1-year warranty against manufacturing defects. For bulk orders, custom dimensions, or OEM specifications, contact us.
