Fork Protector Sleeves – 3-5 Ton Forklift

Fork Protector Sleeves — Manganese Steel Fork Covers for 3-5 Ton Forklift Applications

These manganese steel fork protector sleeves are heavy-duty slip-on covers engineered for 3-5 ton counterbalance forklifts operating in demanding industrial environments including warehousing, ports, manufacturing plants, and mining operations. Unlike standard carbon steel sleeves, manganese steel (Hadfield steel) offers exceptional work-hardening properties — the surface hardness increases under impact and abrasion, making these sleeves ideal for applications where fork tips are subjected to continuous pallet entry friction, concrete floor scraping, and steel-on-steel contact during load handling. With a gross weight of 30kg per unit (35kg packaged), these are substantial industrial-grade protectors built for multi-shift continuous service, not lightweight occasional-use covers. The 250×50×125 cm package dimensions indicate sleeves designed for long fork coverage on medium-to-large capacity forklifts. These sleeves protect both the parent fork surface from wear and the load from fork-tip damage, making them suitable for handling painted goods, finished products, appliances, and any load where fork marks are unacceptable.

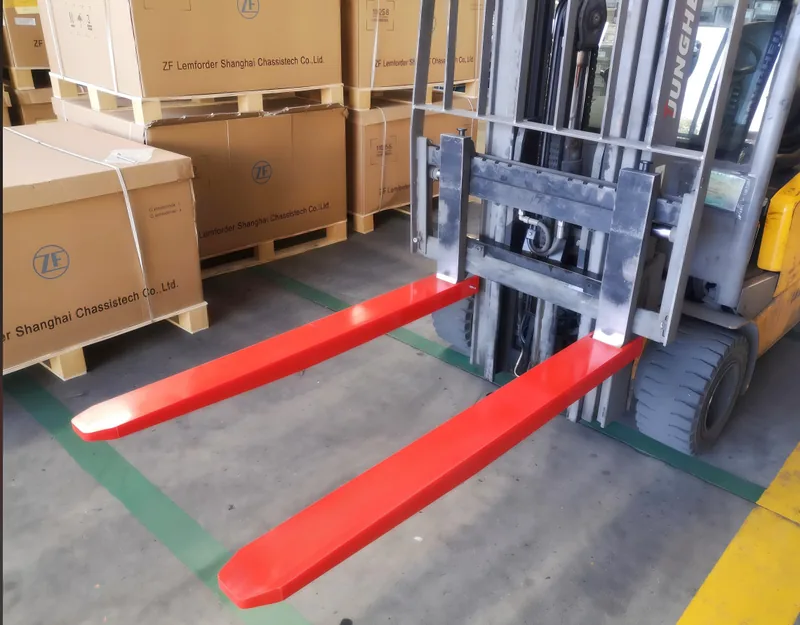

Installing manganese steel protector sleeves on 3-5 ton forklifts requires verifying fork width and thickness compatibility before attempting installation. Due to the 30kg weight per sleeve, two-person handling or mechanical assistance is recommended for safe positioning. Slide the sleeve over the fork until the heel contacts the carriage face — any gap between the heel and carriage concentrates bending stress and accelerates sleeve fatigue at the heel transition zone. Manganese steel’s work-hardening characteristic means the sleeve interior surface will conform to the parent fork surface over the first few operating hours, creating a self-fitting interface that reduces relative movement. However, this same characteristic means initial installation on worn or uneven fork surfaces may require light tapping to fully seat the sleeve. After installation, cycle the forks through full lift and tilt range to verify the sleeves do not contact the mast, carriage, or load backrest at any position. Common failure indicators include longitudinal cracking along the bottom channel bend, heel deformation from carriage impact, and abrasive wear-through at the fork tip end where floor contact occurs during low-level load entry.

These protector sleeves are designed for standard ITA Class II/III fork profiles on 3-5 ton forklifts. Confirm your fork dimensions — width, thickness, and length — before ordering. Browse our Fork Sleeve category for lighter-duty options and additional sizes. For material handling safety guidelines, visit OSHA Material Handling Standards. For bulk orders or custom specifications, contact us with your fork dimensions.

Technical Specifications

Compatible Forklift Brands

Each pair of protector sleeves is inspected for material integrity and dimensional accuracy before shipment. Heavy-duty export packaging. For bulk orders or custom material and size specifications, contact us.
