Speed Limiter Fuel Solenoid Valve Forklift Tilt Cylinder for HB Series 2-3 Ton Forklift
$124.99
HB Series Tilt Cylinder for 2-3T diesel and LPG forklifts. Double-acting with honed bore, chrome rod, PU lip seals. Replace as matched pair. Worldwide freight from Kingstream.

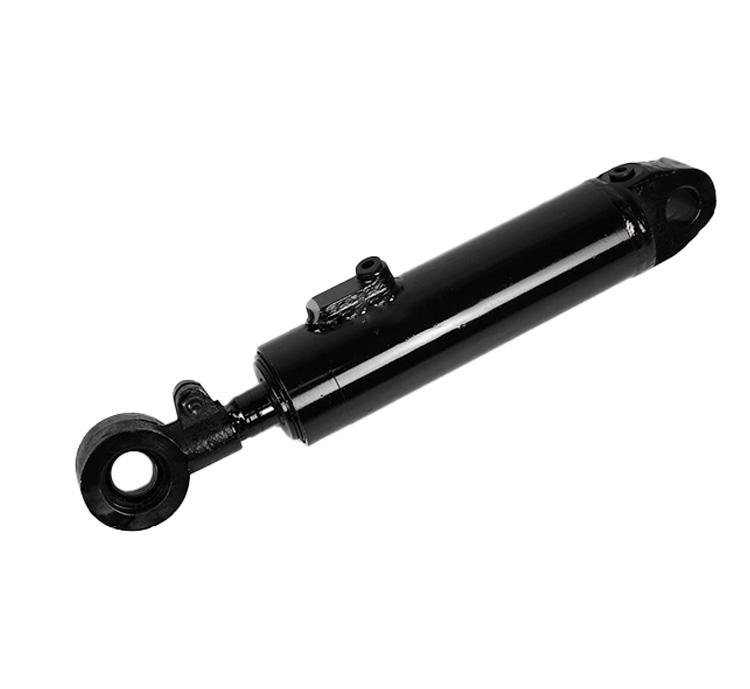

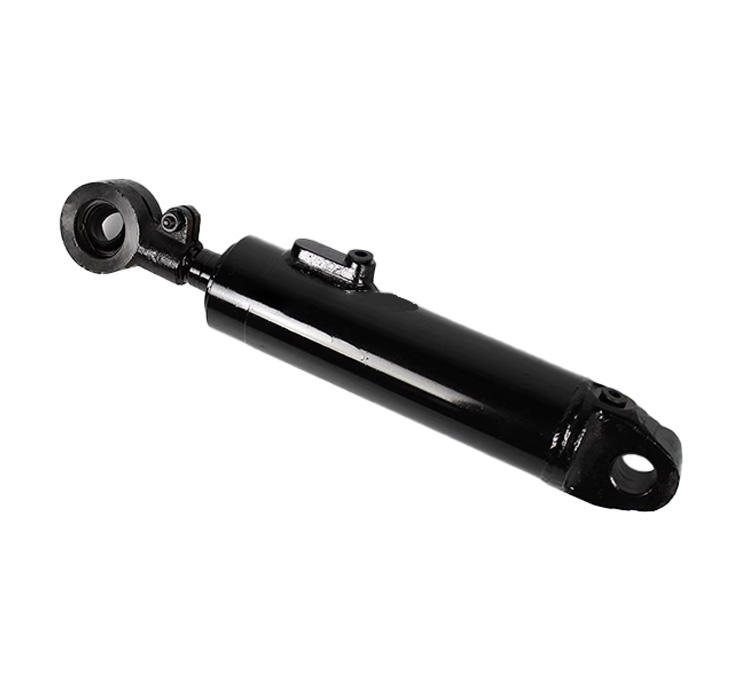

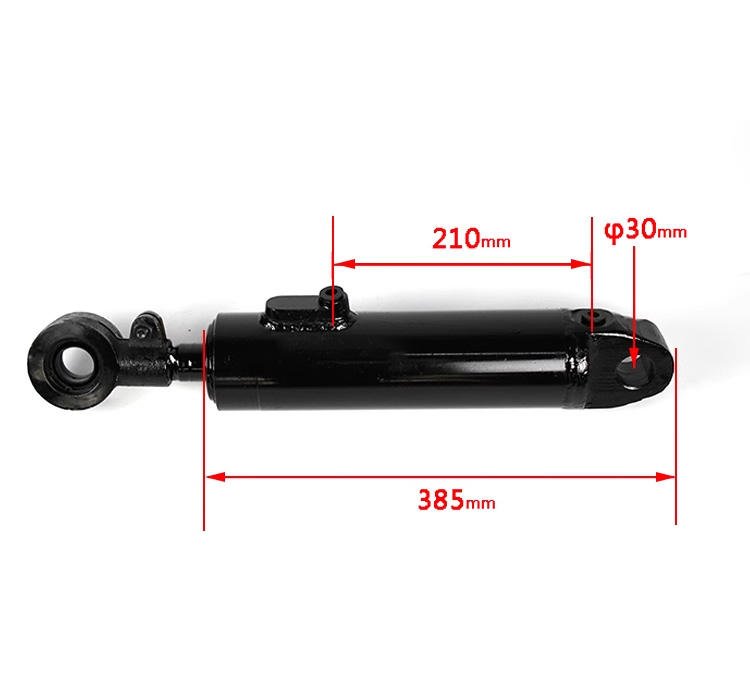

HB Series Tilt Cylinder for 2-3 Ton Forklift
The HB tilt cylinder is a double-acting hydraulic cylinder that controls mast forward and backward tilt on HB-series 2-3 ton diesel and LPG forklifts. Two HB tilt cylinders work in tandem — one on each side of the mast — with hydraulic pressure powering both the extend (tilt forward) and retract (tilt back) strokes. A leaking internal piston seal on one HB tilt cylinder causes that side to respond slower than the other, twisting the mast channels and accelerating wear on the carriage rollers, mast rail surfaces, and tilt cylinder mounting pins. A bent piston rod or scored cylinder bore demands immediate replacement — trying to straighten a bent rod or hone a scored bore on a hydraulic cylinder is never a lasting repair.
Manufactured to the HB-series OEM specification, this HB tilt cylinder features a honed steel cylinder bore, a hard-chrome plated piston rod, and double-acting polyurethane lip seals with a rod wiper at the gland. Always replace tilt cylinders as a matched pair — the new cylinder seal friction differs from the old, causing one side to extend faster and producing jerky, uneven tilt. Verify the HB series model and cylinder dimensions against the removed unit before ordering. For lift cylinders, seals, and hydraulic components, browse our forklift hydraulic components.
Technical Specifications
- SKU: HB-TILT-2-3T
- Type: Double-acting tilt cylinder — HB series
- Cylinder Body: High-strength steel, honed bore
- Piston Rod: Hard-chrome plated
- Seals: Double-acting PU lip seals, rod wiper
- Operating Pressure: 1,500-3,000 PSI
- Fitment: HB series 2-3T diesel/LPG forklifts
- Note: Replace as matched pair — verify HB model
Compatible Forklift Models
| Brand | Models / Series |
|---|---|
| HB Series | 2T, 2.5T, 3T diesel and LPG forklifts |
| HELI | HB-series architecture models (2-3T) |
| Other | HB tilt cylinder specification models |
Each HB tilt cylinder ships with ports plugged and rod protected. After installation, bleed both cylinders simultaneously by cycling mast tilt lock-to-lock at low engine speed until movement is smooth and both sides move evenly. For HB series hydraulic specifications, consult Baldwin Filters. Kingstream stocks HB series tilt cylinders — worldwide freight shipping with online tracking.
Brand
LINDE
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
