Forklift Speed Limiting Valve D28B8-60201

Forklift Speed Limiting Valve D28B8-60201：Precision Hydraulic Flow Control for Safe Forklift Operation

The D28B8-60201 speed limiting valve is a hydraulic flow control device that regulates the maximum descent speed of a forklift mast and attachment cylinders. When the operator lowers a loaded fork, gravity alone can accelerate the descent beyond safe limits if unrestricted. This valve meters the return oil flow from the lift or tilt cylinder back to the tank, capping the descent velocity at a factory-set maximum regardless of load weight. Internally, it uses a pressure-compensated spool and spring mechanism — the heavier the load (higher back pressure), the tighter the orifice restriction — ensuring consistent lowering speed whether the forks carry 100 kg or the rated capacity.

What sets the D28B8-60201 apart from standard check valves is its load-sensing pilot circuit. In forward-flow (lifting) mode, hydraulic oil bypasses the restriction through a free-flow check poppet, causing zero power loss. Only during reverse-flow (lowering) does the metering orifice engage. This two-stage design means it does not heat the hydraulic oil during lifting operations — a critical advantage for forklifts running continuous duty cycles in warehouses and cold storage where oil viscosity changes with temperature would otherwise cause inconsistent lowering speeds. A common failure mode is internal spring fatigue after 3,000–5,000 operating hours, leading to “jerky” or uneven lowering that operators often mistake for a cylinder seal problem.

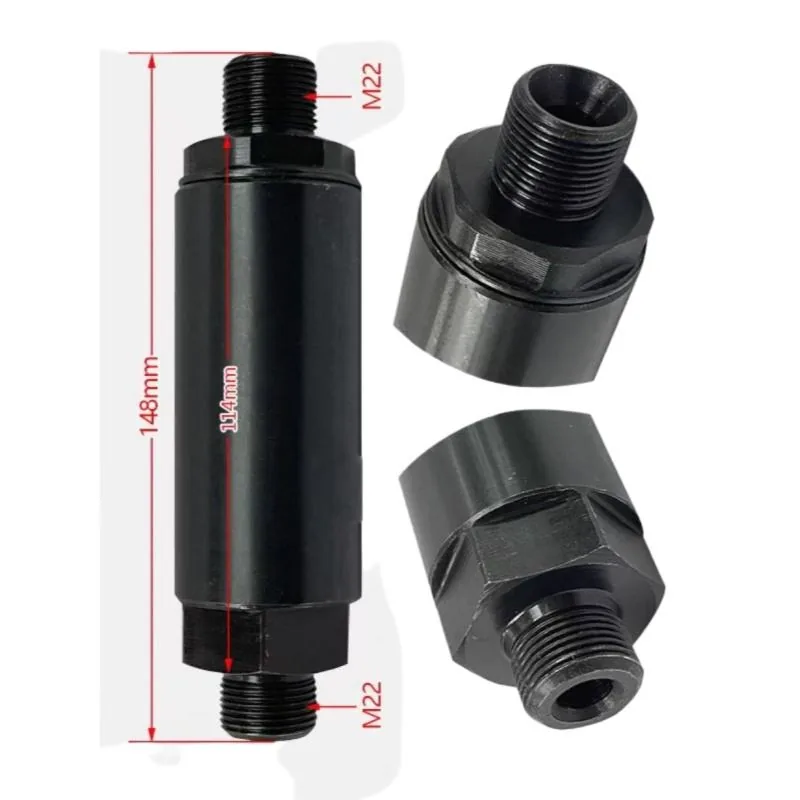

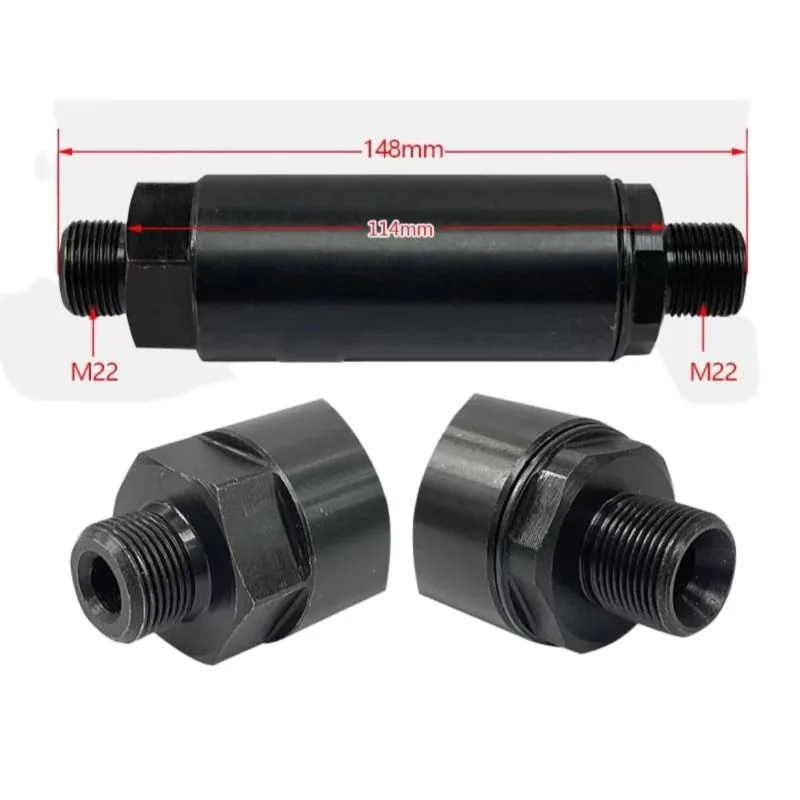

Installation requires attention to port orientation: the D28B8-60201 is directional, with supply and return ports clearly marked by cast-in arrows on the iron body. Mounting it backwards results in complete flow blockage during lifting. The 1 kg weight and compact form factor allow direct inline mounting on the lift cylinder port block without additional bracketry. Compatible with most Chinese-brand 1–3 ton counterbalance forklifts including those using ISO 4401 mounting pattern hydraulic components. Standard BSPP thread ports accept 3/8″ hydraulic fittings.

Kingstream supplies this speed limiting valve as a direct OEM replacement. Each unit undergoes factory pressure testing at 250 bar before shipment. Contact us with your part number for cross-reference verification.
