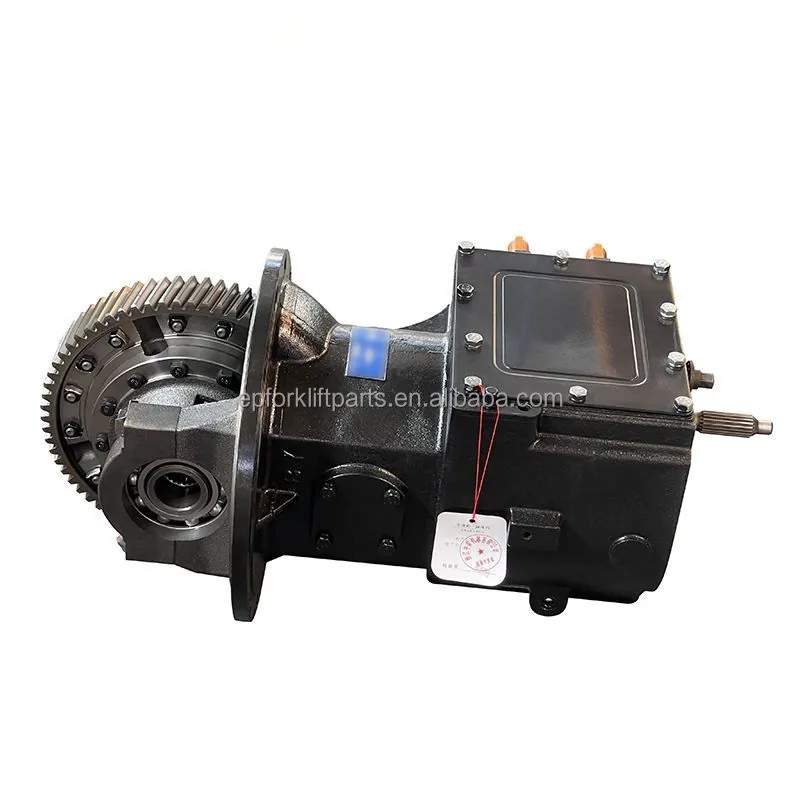

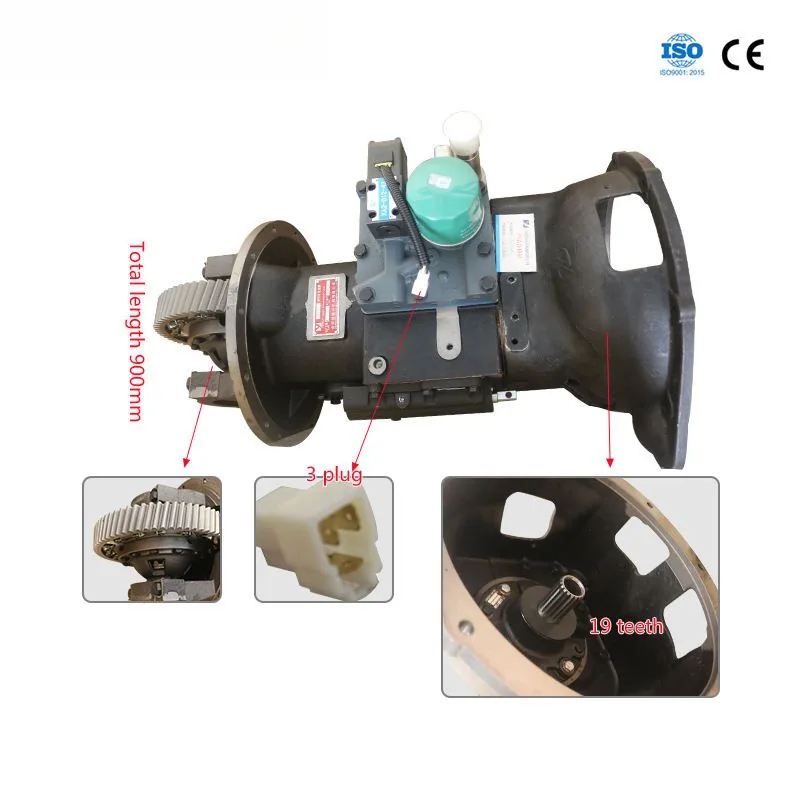

Forklift Parts 24462-52100G Hydraulic Transmission Forklift Transmission Gearbox
$599.99
OEM 24462-52100G hydraulic torque converter transmission for Heli & Hangcha 1.5-3T forklifts. Electro-hydraulic push-button shift with power shift gearbox. No clutch pedal — fluid-coupled smooth takeoff. Ready-to-install replacement unit.
Forklift Hydraulic Transmission Gearbox — Torque Converter Power Shift Unit (OEM 24462-52100G)
The 24462-52100G is a pure hydraulic transmission unit — not to be confused with the mechanical-hydraulic hybrid gearbox (14432-50001) designed for heavier 2.5-5T machines. The core design difference is in the power coupling method: this unit uses a torque converter for fluid-coupled power transfer, which eliminates the mechanical clutch entirely. This means no clutch pedal, no clutch disc wear, and dramatically smoother takeoff — ideal for the 1.5-3 ton forklift class where frequent stop-start duty cycles are common in warehouse and loading dock environments. The electro-hydraulic shift control system enables push-button forward/reverse selection, a significant ergonomic upgrade over mechanical lever shifting. This assembly is specifically engineered for Heli and Hangcha “new-style” 1-3 ton internal combustion forklifts and is NOT cross-compatible with the 14432-50001 gearbox or with electric forklift drive systems.
The torque converter in this 24462-52100G is pre-filled with transmission fluid from the factory — do NOT drain and refill before installation unless you detect contamination. Using the wrong ATF specification is the most common installation error: this unit requires Dexron III or equivalent hydraulic transmission fluid, not gear oil. Filling with gear oil will cause immediate torque converter cavitation and complete loss of drive within the first hour of operation. The electro-hydraulic control valve solenoid connectors are polarity-sensitive; reversing the wiring will cause the transmission to default to neutral regardless of shift lever position. During break-in, expect slightly delayed 1-2 shift engagement for the first 5-10 operating hours — this is normal as the shift valve accumulator charges. Common failure indicators specific to this unit include: torque converter shudder during acceleration (stator one-way clutch failure), transmission slipping in forward but not reverse (forward clutch pack wear), and erratic shifting accompanied by transmission warning light (electro-hydraulic solenoid contamination).
The 24462-52100G fits Heli CPCD15-CPCD30 and Hangcha CPCD15-CPCD30 new-style forklifts equipped with the electro-hydraulic shift system. Always verify your transmission tag part number before ordering — early production models used a different control module that is not backward-compatible. For related drivetrain components including clutch packs, shift solenoids, and torque converter seals, visit our Forklift Mechanic Transmission Parts collection. For OEM technical reference specifications, consult the Heli Official Website.
Technical Specifications
- OEM Part Number: 24462-52100G
- Transmission Type: Hydraulic Torque Converter + Power Shift
- Control System: Electro-Hydraulic (Push-Button F/R Selection)
- Suitable Forklift Class: 1.5T — 3T Internal Combustion Forklifts
- Required Fluid: Dexron III ATF (Not Gear Oil)
- Shell Material: High-Strength Alloy Steel / Stainless Steel Internals
Compatible Forklift Models
| Brand | Compatible Models / Series |
|---|---|
| Heli | CPCD15-CPCD30 (New-Style, Electro-Hydraulic Shift) |
| Hangcha | CPCD15-CPCD30 (New-Style, Electro-Hydraulic Shift) |
| TCM | FD15T-FD30T (Hydraulic Torque Converter Variant) |
Each transmission assembly undergoes full bench testing before shipment, is packed in a reinforced export-grade plywood case, and ships within 1-2 business days. We provide a 12-month warranty against manufacturing defects. For bulk pricing or custom transmission requirements, contact our sales team. Browse our full Forklift Mechanic Transmission Parts catalog for complete drivetrain solutions.
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
Follow these four steps to get the fastest and most accurate quotation. The more details you provide, the quicker we can confirm compatibility and pricing.
Send Your Part Number or Forklift Information
Provide the OEM part number, a clear photo of the old part, or the forklift brand and model. Any one of these works. We'll use it to cross-match the correct part.
Tell Us Your Quality Preference and Quantity
Choose Original, OEM, or Aftermarket quality. Let us know how many pieces you need — a single trial unit or a bulk order. We'll quote accordingly.
Provide Your Destination and Shipping Preference
Tell us the destination country and preferred shipping method (sea freight, air freight, or express courier). This helps us calculate delivery time and cost accurately.
Combine Related Parts (Optional)
If you need other forklift parts, include them in the same inquiry. We support mixed order consolidation — less freight cost, less paperwork.
Request Forklift Parts Quotation
📦 Part Number
If you already have the OEM number or reference number, quotation and matching will usually be much faster.
🚜 Forklift Model or Serial
If the exact part number is not available, forklift model details can help narrow the correct product range.
📸 Product Photos
Clear old-part photos, labels or packaging images are useful when buyers need help confirming the correct part.
🌍 Quantity & Destination
Quantity, country and shipping terms help improve quotation structure for EXW, FOB or CIF comparison.
