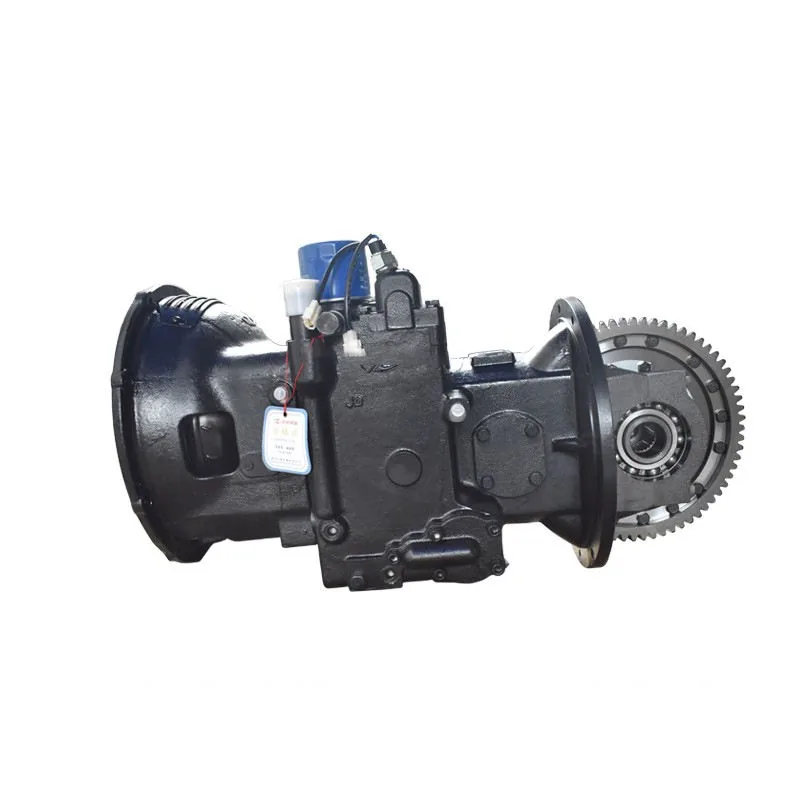

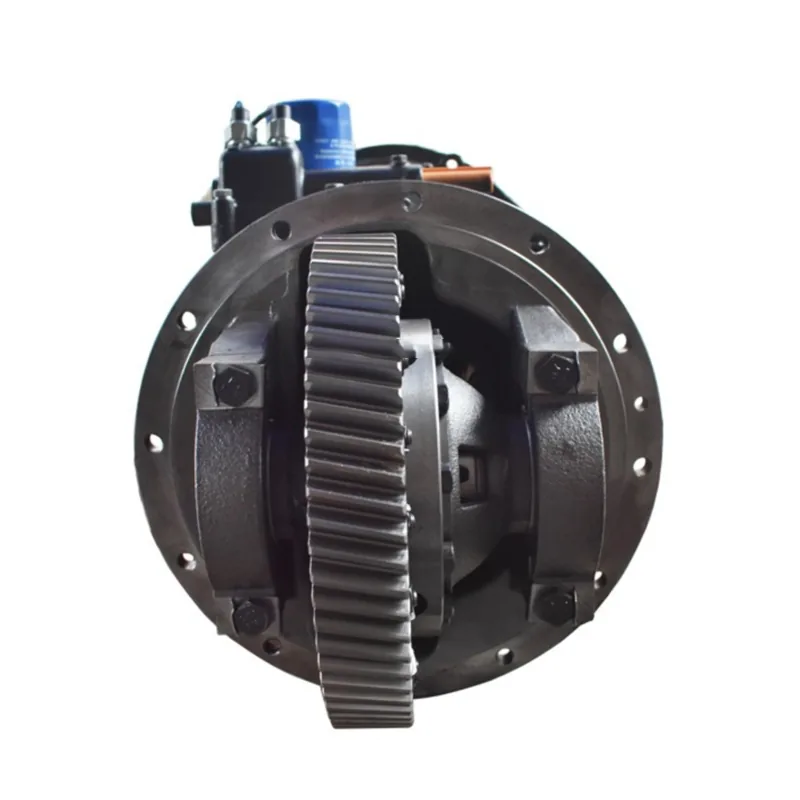

Forklift Gearbox Assembly — Mechanical Hydraulic Transmission Unit (OEM 14432-50001)

This gearbox assembly (OEM 14432-50001) is a complete mechanical hydraulic transmission unit designed for forklift chassis systems. Unlike standalone transmission components such as individual gears, shafts, or clutch packs, this assembled unit comes as a ready-to-install replacement — no rebuilding, no sub-component matching required. The key technical differentiator is its dual-mode power transfer design: mechanical gear meshing handles the main torque transmission path, while the hydraulic control circuit manages smooth clutch engagement and synchronized gear shifting. This hybrid approach reduces operator fatigue by eliminating the clutch-pedal shock common in purely mechanical transmissions, while maintaining the high torque efficiency of gear-drive — a distinct advantage over fully hydrostatic systems that lose approximately 10-15% of power through fluid coupling. It is important to note that this specific assembly (14432-50001) is not interchangeable with electric-drive forklift transmissions; it is specifically engineered for internal combustion engine forklifts in the 2.5-ton to 5-ton load class that require mechanical-hydraulic shifting capability.

Installing a complete gearbox assembly requires attention to three critical alignment points that frequently cause premature failure if overlooked. First, the input shaft-to-flywheel pilot bearing fit must be verified — a radial play exceeding 0.05mm will induce input shaft wobble, leading to accelerated input seal wear and eventual oil contamination of the clutch disc. Second, the hydraulic shift control valve body inside this assembly is factory pre-calibrated; do not attempt to adjust shift pressure without a calibrated gauge — incorrect pressure settings are the leading cause of harsh 1-2 upshift engagement and burnt synchronizer rings within the first 200 operating hours. Third, the transmission mounting bolt torque sequence is critical: tighten from the center bolts outward in a cross pattern at 85 N·m (±5 N·m), and always re-torque after the initial 50-hour break-in period. Common failure symptoms of a worn unit include difficulty engaging reverse gear (indicating a worn reverse idler bushing), grinding noise during 2-3 upshift (synchronizer cone wear), and hydraulic fluid temperature consistently exceeding 95°C during continuous operation — which typically signals internal pump bypass rather than adequate shift pressure delivery.

This 14432-50001 gearbox assembly is compatible with Heli, Hangcha, TCM, Doosan, and Toyota internal combustion forklifts in the 2.5-5 ton class equipped with mechanical-hydraulic transmission systems. Confirming your existing transmission tag number before ordering is the most reliable method to ensure correct fitment. For related components such as clutch discs, input shafts, and shift cables, visit our Forklift Mechanic Transmission Parts collection. For OEM technical reference specifications, consult the Heli Official Website.

Technical Specifications

• OEM Part Number: 14432-50001
• Transmission Type: Mechanical-Hydraulic (Dual-Mode)
• Material: High-Strength Alloy Steel (Housing) / Stainless Steel (Internal Components)
• Suitable Forklift Class: 2.5T — 5T Internal Combustion Forklifts
• Shift Mechanism: Hydraulic-Assisted Synchronized Gear Engagement
• Mounting Bolt Torque: 85 N·m (±5 N·m)

Compatible Forklift Models

Each gearbox assembly is fully inspected, securely packed in a reinforced plywood case, and ships within 1-2 business days. We offer a 12-month warranty against manufacturing defects. For custom transmission parts or bulk orders, contact our sales team. Browse our full Forklift Mechanic Transmission Parts catalog for complete drivetrain solutions.
