HELI H2000 Forklift Transmission JDS30X-3 – Zhongchai Mechanical Gearbox 2-3T

HELI H2000 Forklift Mechanical Transmission JDS30X-3 — Zhongchai Brand, 2-3T, Factory Direct

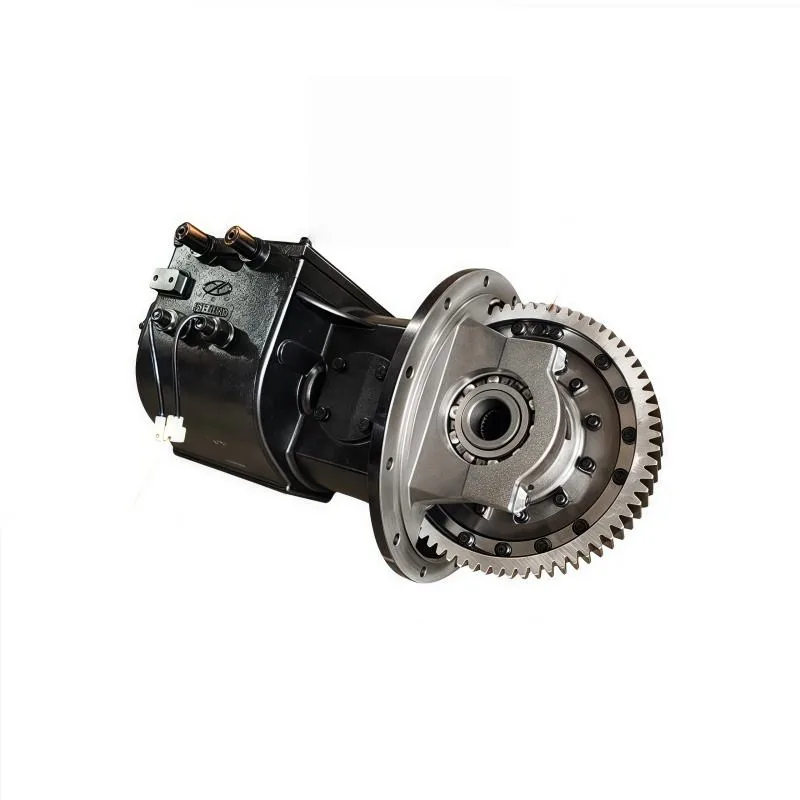

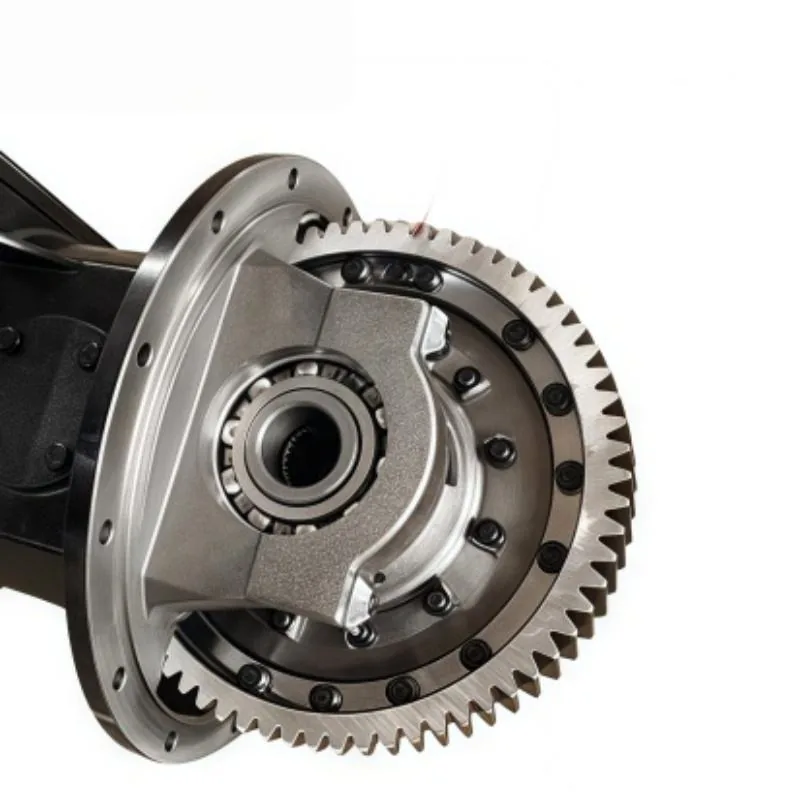

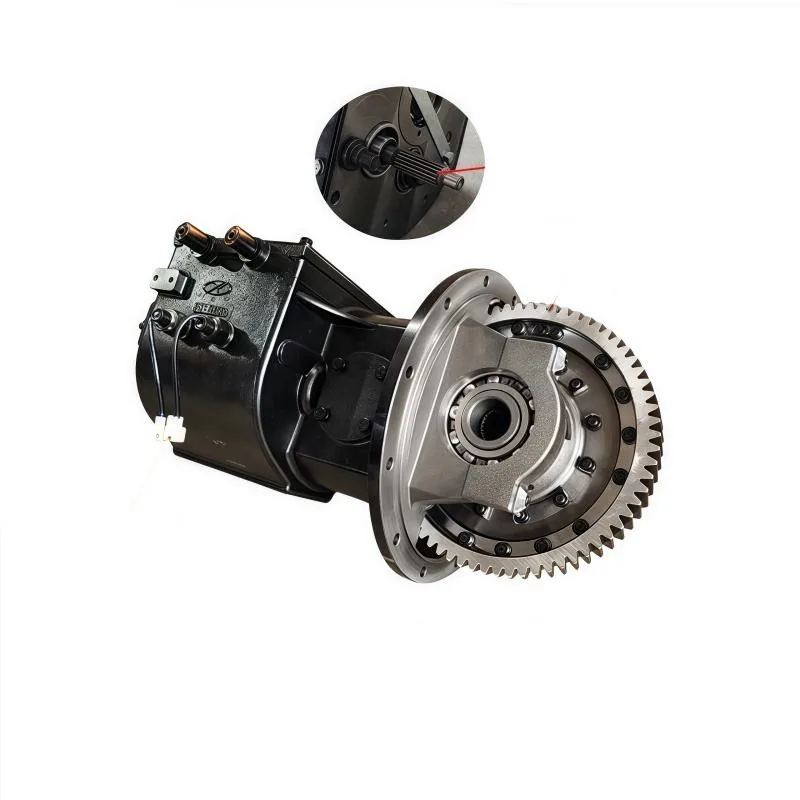

This is the mechanical transmission assembly (part number JDS30X-3) for HELI H2000 series 2-3 ton forklifts — the standard manual transmission used in the most widely deployed 3-ton IC forklift platform in the world. The JDS30X-3 is a mechanical (manual shift) transmission with typically 2-3 forward speeds and reverse, designed for the HELI H2000 chassis with the engine and transmission mounted longitudinally in a rear-wheel-drive configuration. The transmission case is a cast iron housing containing the gear train on parallel shafts with synchronizers for smooth forward gear engagement and a sliding gear mechanism for reverse. On a 3-ton HELI forklift operating 8-16 hours per day in a warehouse or manufacturing environment, the transmission undergoes hundreds of forward/reverse direction changes per shift — each direction change involves clutch disengagement, gear deselection, reverse gear selection, and clutch re-engagement, all within 2-3 seconds. The synchronizer rings bear the brunt of this wear: the brass or sintered steel cone clutches that match gear speeds before the dog teeth engage wear down with every shift, and when the synchronizer ring is worn below its minimum thickness, the driver feels increasing grinding during shifts because the gear speeds cannot be matched before the dog teeth attempt to engage. A transmission that requires double-clutching to avoid grinding, that pops out of gear under engine braking or acceleration, or that produces a bearing whine that changes with road speed has internal wear that requires replacement or rebuild.

Zhongchai brand, manufactured in Anhui, China with high-quality standards. Black color, small size classification. Model number JDS30X-3, applicable to HELI H2000 2-3 ton forklifts. Mechanical transmission assembly, forklift parts type. Customized services available. When replacing a JDS30X-3 transmission, always check the clutch assembly condition — worn clutch components will shorten the new transmission’s synchronizer life because the driver must slip the clutch more to compensate. Replace the input shaft pilot bearing in the crankshaft — a worn pilot bearing allows the input shaft to wobble, which accelerates transmission input bearing wear and causes seal leakage. Verify the transmission-to-engine bell housing dowel pins are present and undamaged — the dowels provide alignment, not the bolts. Fill with the correct gear oil before operation — the JDS30X-3 typically uses SAE 80W-90 GL-4 gear oil. Check the oil level after the first 50 hours of operation.

Compatible with HELI H2000 series 2-3 ton forklifts. Browse our gearbox assembly selection for YQXD30 and HDCS30 options. Visit HELI official website.

Technical Specifications

Compatible Models

Zhongchai factory direct. Confirm your HELI model →
