Hydraulic Cylinder Electric Lift 136x115mm Tie-Rod – Forklift

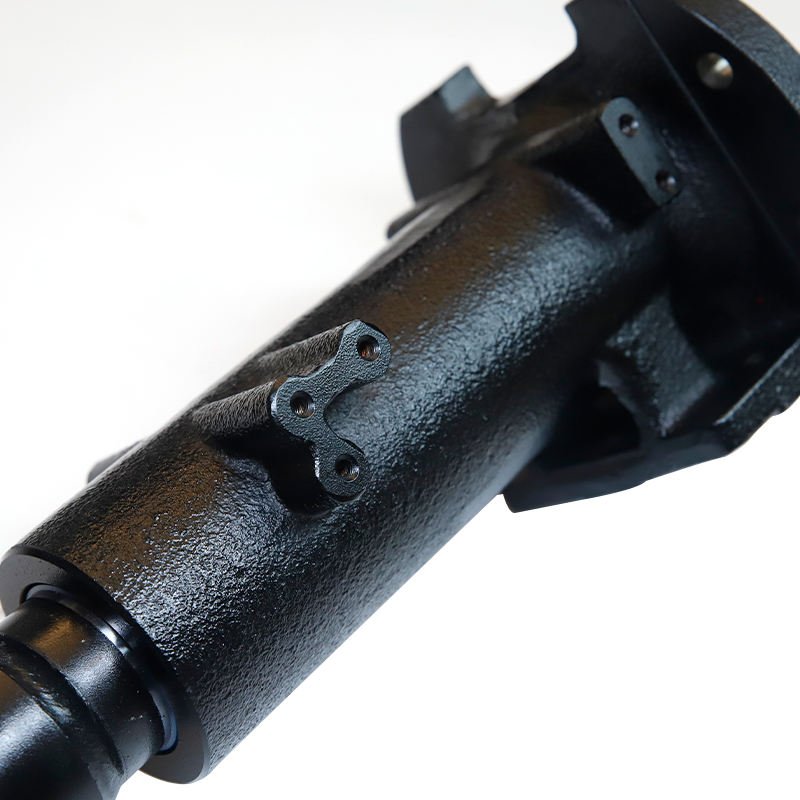

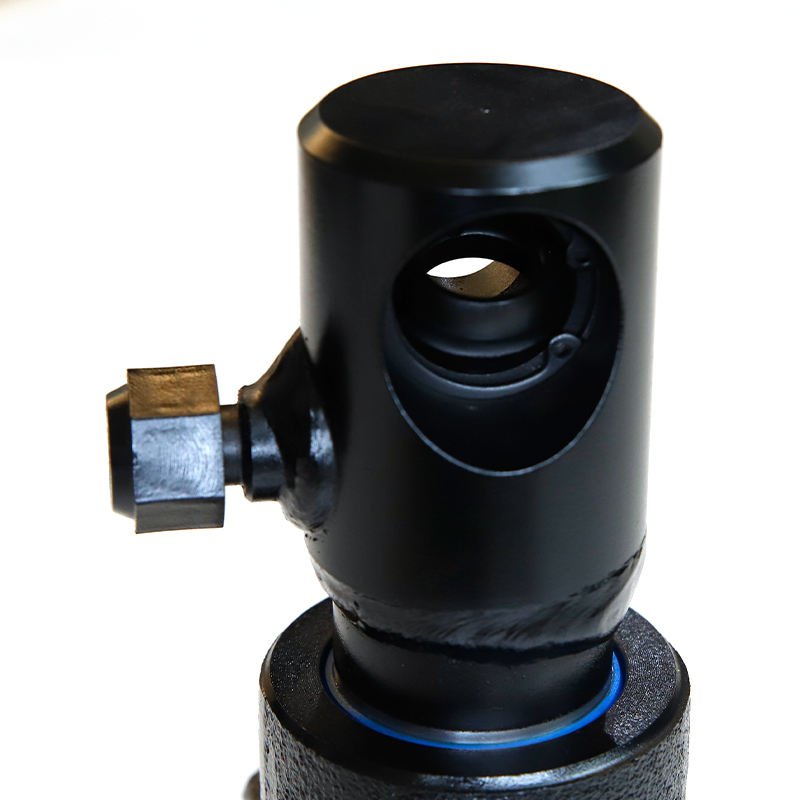

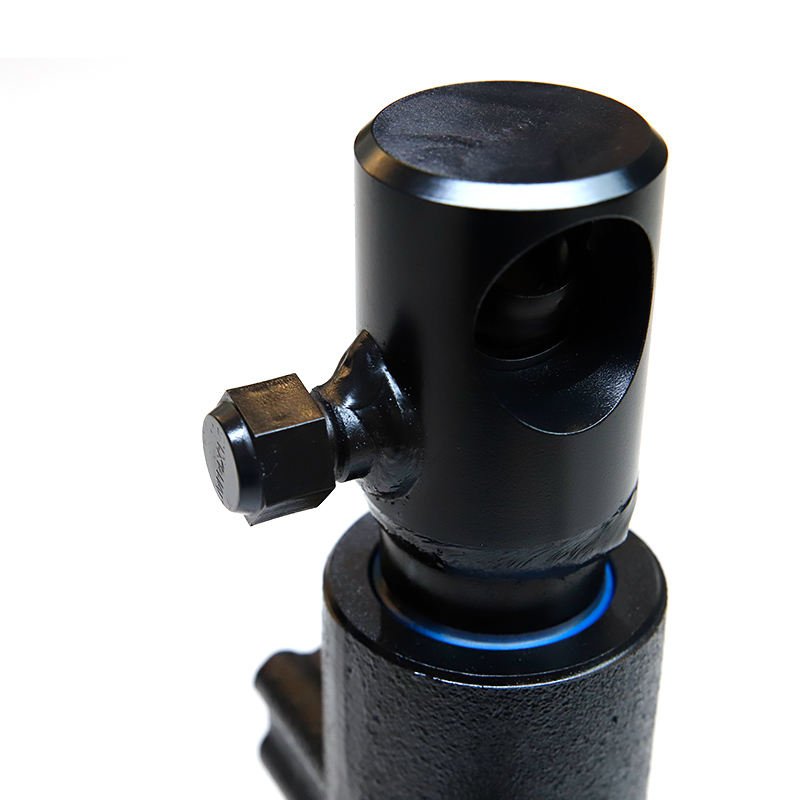

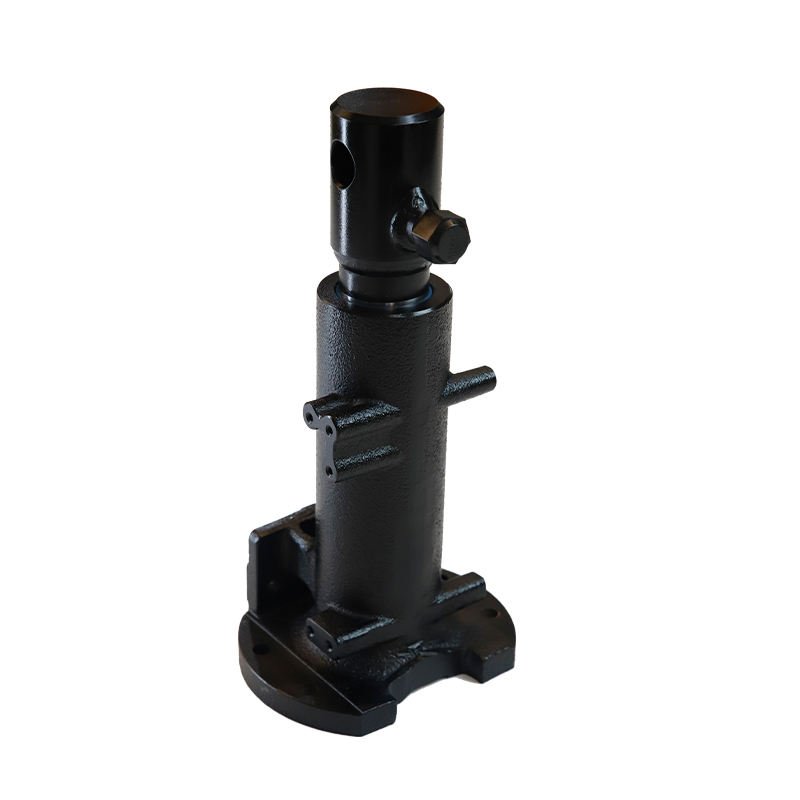

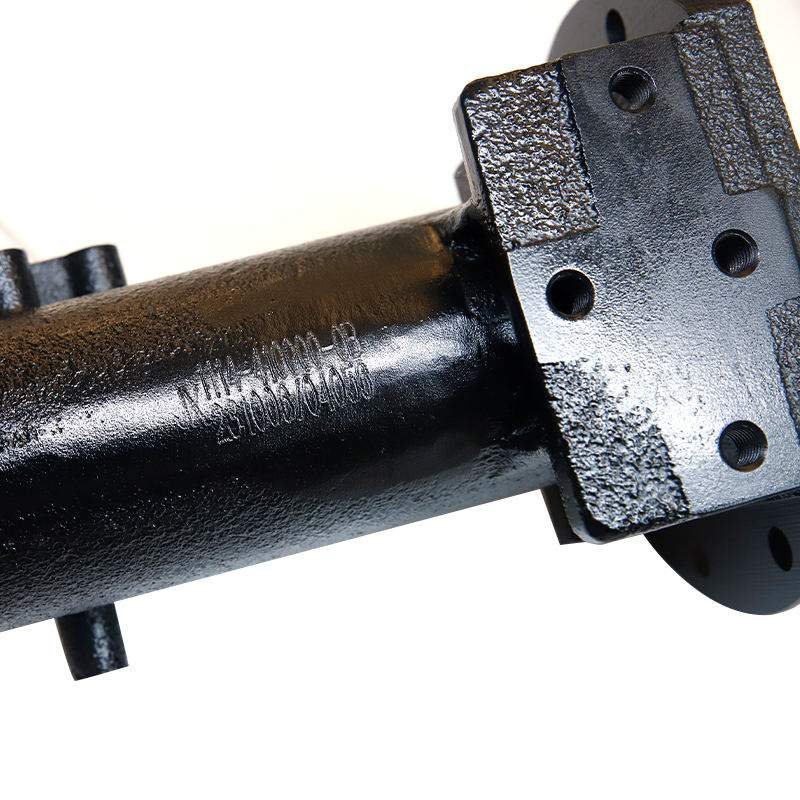

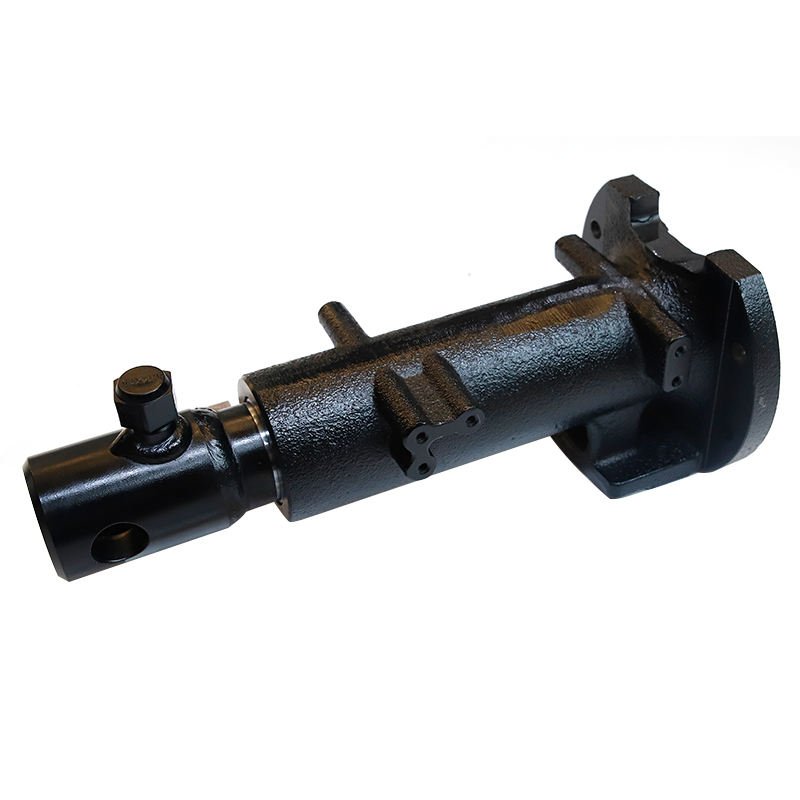

Hydraulic Cylinder Single Acting 136mm Bore × 115mm Stroke — Electric Forklift Lift Cylinder, Tie-Rod Design, Hard Chrome Plated Rod

This hydraulic lifting cylinder is a Kingstream OEM single acting tie-rod hydraulic cylinder for electric lift trucks, pallet stackers, scissor lifts, and material handling equipment. Specifications: inner tube (bore) diameter 136mm, outer tube diameter 44mm, rod diameter 40mm, maximum stroke 115mm, overall length 254mm, dimensions 155×136×281mm. Hard chrome plated piston rod for corrosion resistance and long seal life. Steel body construction with painted surface for rust protection. Imported seals provide extended service life during continuous operation. 5.6kg. ISO9001 and CE certified. 1-year warranty. MOQ 1 piece. 9-15 day delivery. Kingstream OEM for electric forklift fleet hydraulic cylinder replacement.

MANUFACTURING QUALITY: All raw materials undergo top-level heat treatment and are processed with imported CNC lathes, grinders, and drills. The tie-rod design uses four high-strength tie rods to clamp the cylinder end caps, providing easy disassembly for seal replacement compared to welded cylinders. The hard chrome plated rod surface provides a hardness of 60-70 HRC with excellent resistance to scoring from side loading and abrasive contaminants. Imported polyurethane and PTFE seals maintain consistent performance across the full stroke with minimal internal leakage. Painted exterior surface provides corrosion protection in warehouse and outdoor environments. Customizable bore size, rod diameter, stroke length, and color available for non-standard applications. Kingstream OEM.

INSTALLATION: Mount the cylinder using the clevis or flange mounting points — ensure the cylinder is aligned with the load direction to prevent side loading that causes premature rod and seal wear. Connect the hydraulic hose to the single port with the correct fitting and O-ring. Bleed air by cycling the cylinder 5-10 times without load — trapped air causes spongy operation and uneven lifting. Check for hydraulic fluid leaks at the rod seal and fittings after the first hour of operation at working pressure. Inspect the hard chrome rod surface every 250 hours for scoring or pitting. For electric forklift fleet hydraulic cylinder replacement and custom configurations, contact us. Kingstream OEM.

Technical Specifications

ISO9001/CE. 1-year warranty. Custom sizes available. Kingstream OEM. Contact us.
