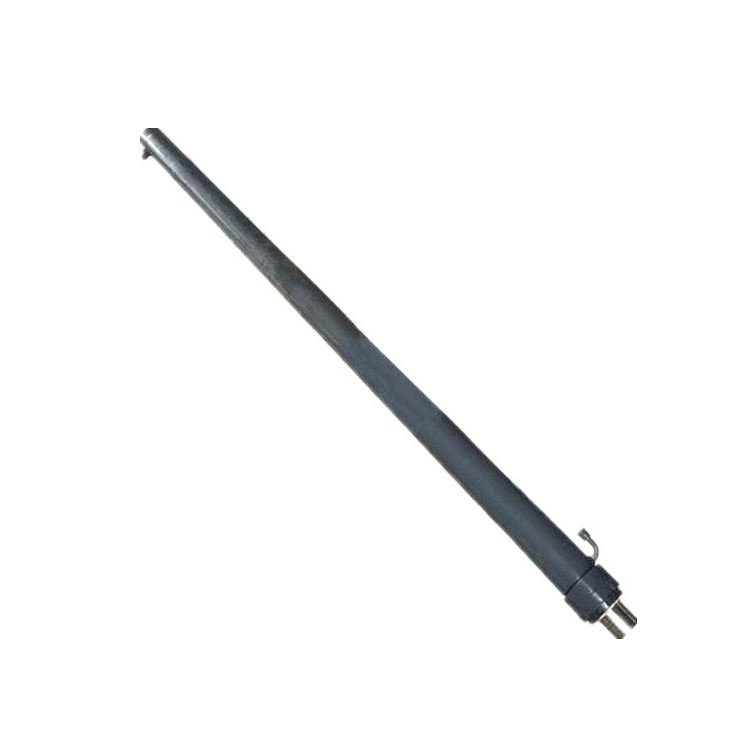

Forklift Lift Cylinder Hydraulic – Mast Lift Cylinder 20kg

Forklift Mast Lift Cylinder — Hydraulic Lift Cylinder for Counterbalance Forklift Trucks

This forklift lift cylinder is a Kingstream OEM hydraulic mast cylinder for counterbalance forklift trucks in manufacturing, construction, warehousing, and material handling applications. The lift cylinder is the main hydraulic actuator that raises and lowers the forklift mast and forks — it converts hydraulic pressure from the control valve into linear lifting force to elevate loads to working height. 20kg with 80×15×10cm heavy-duty container shipping packaging (triangular wood/iron brackets for secure transit). 6-month warranty. Machinery test report and video inspection provided. Showrooms in Canada, UK, USA, Philippines, Indonesia, Mexico, Russia, Thailand, Kenya, Sri Lanka, South Africa, and Uzbekistan. Kingstream OEM for forklift fleet mast cylinder replacement.

LIFT CYLINDER WORKING PRINCIPLE: When the operator moves the lift control lever, the hydraulic control valve directs pressurized oil from the hydraulic pump into the lift cylinder through a single port at the base. The oil pressure acts on the piston or plunger, extending the cylinder rod upward with the lift chains and carriage. The lifting force is proportional to the hydraulic pressure and piston area. When the operator lowers the forks, the control valve opens the cylinder port to the tank return line, and gravity or the load weight forces oil out of the cylinder. For forklift mast cylinder maintenance, contact us. Kingstream OEM.

INSTALLATION AND MAINTENANCE: Lower the forks completely and relieve hydraulic pressure before removing the cylinder. Disconnect the hydraulic hose and the lift chain anchors. Remove the cylinder mounting pins and carefully extract the cylinder from the mast channel. Install the new cylinder in reverse order — ensure the rod guide bearing is properly aligned in the mast channel to prevent binding. Bleed the hydraulic system by cycling the mast up and down 5-10 times. Check for external oil leaks at the rod seal and hose fitting under load. Inspect the chrome rod surface for scoring or pitting every 250 operating hours. 6-month warranty. Kingstream OEM.

Technical Specifications

6-month warranty. Global showrooms. Kingstream OEM. Contact us.
