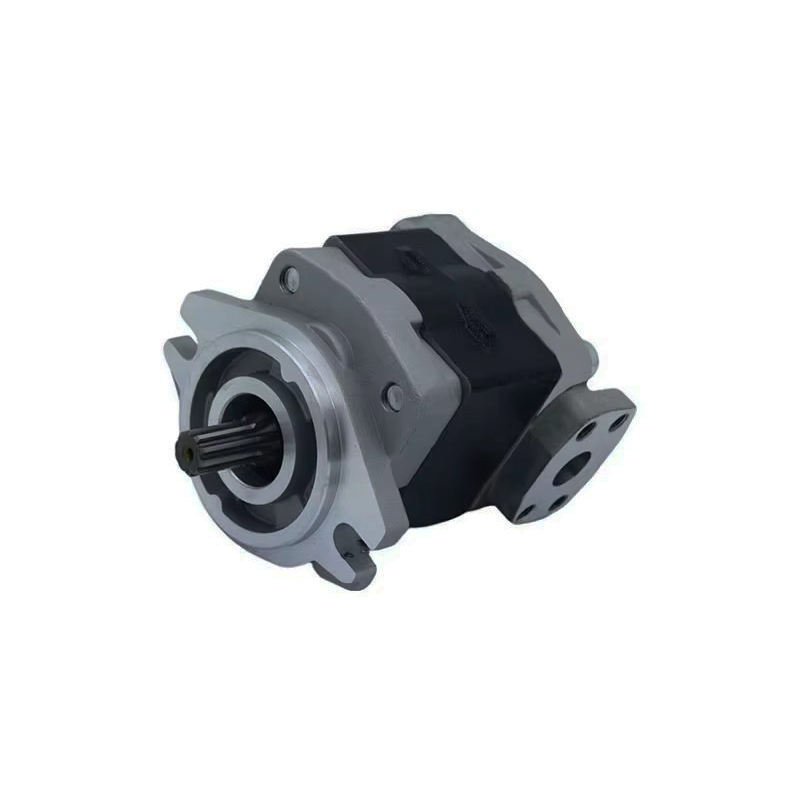

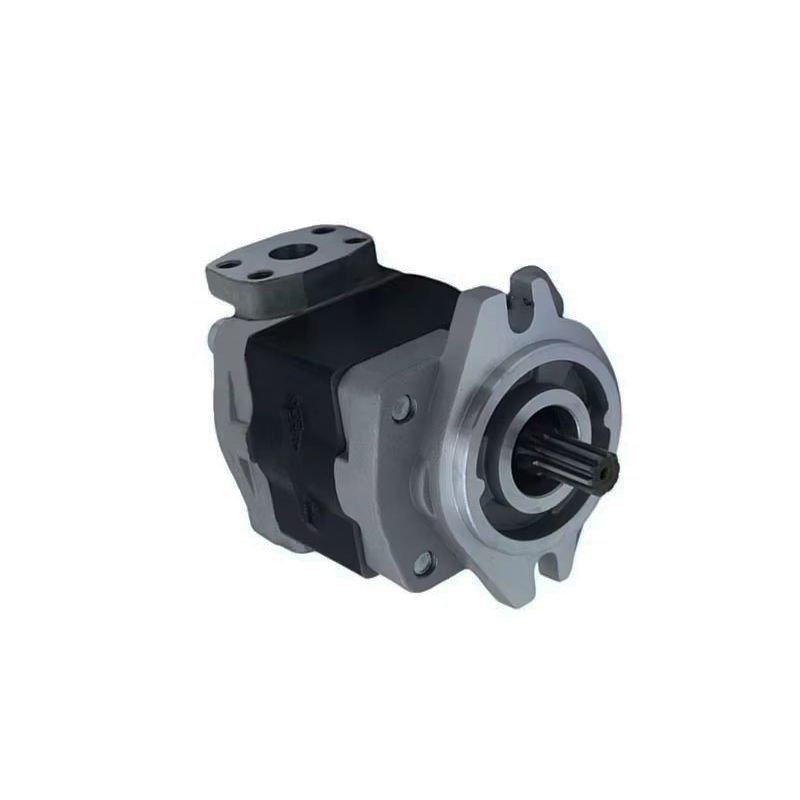

Forklift Hydraulic Pressure Pump FG20 / H20 / FG30 250bar — Flange Mount Single-Stage Forklift Gear Pump

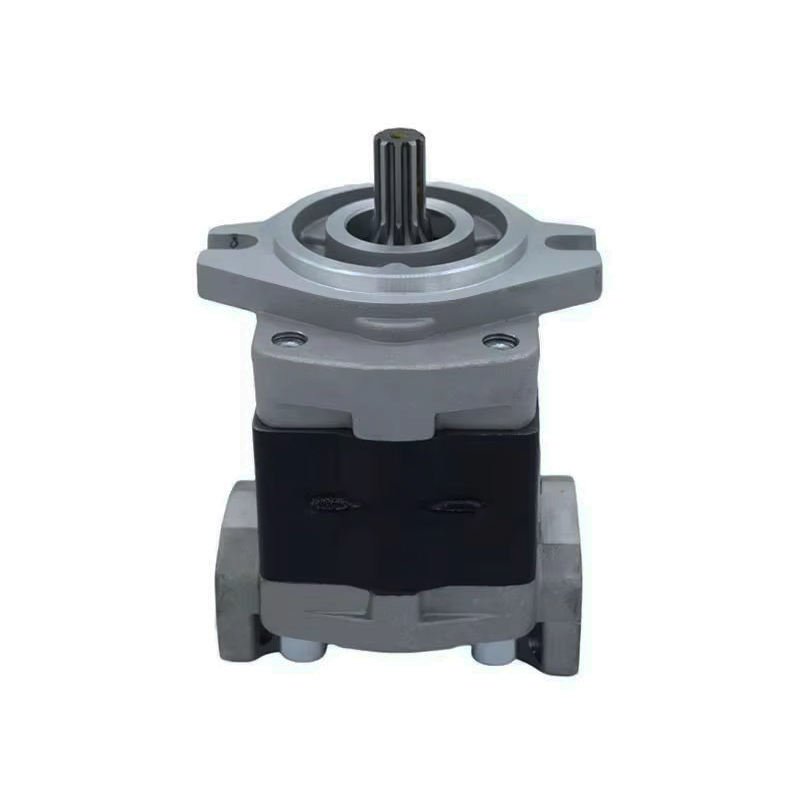

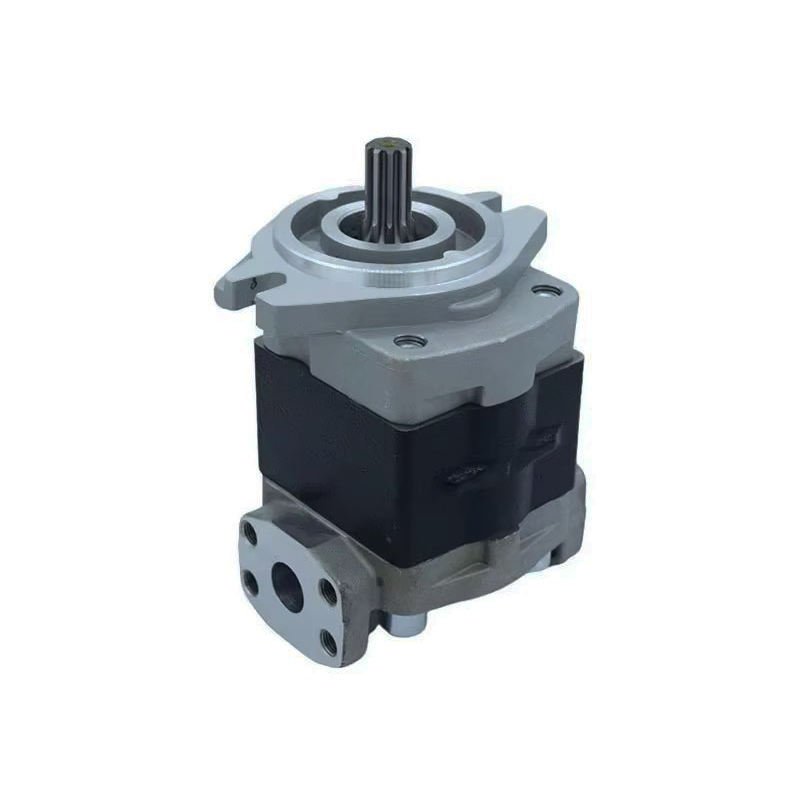

This forklift hydraulic pressure pump model FG20 / H20 / FG30 (cross-references 37B, 1KA-3020, 69101, 51K01) is a Kingstream OEM single-stage hydraulic gear pump for forklift trucks in manufacturing, construction, warehousing, and material handling applications. Operating pressure: 250 bar with 5 HP maximum horsepower rating. Flange connection for direct bolt-on mounting to the forklift engine or transmission PTO adapter. Dimensions: 18×15×20cm. 5kg. 1-year warranty. Kingstream OEM for forklift hydraulic system pump replacement.

GEAR PUMP OPERATION: The forklift hydraulic pump is a positive displacement gear pump — as the engine rotates the drive gear, meshing teeth create suction at the inlet port that draws hydraulic oil from the reservoir. The oil is trapped between the gear teeth and the pump housing and carried to the outlet side where the teeth re-mesh, forcing oil out under pressure. The single-stage design provides a constant flow rate proportional to engine RPM. Flow goes to the hydraulic control valve which directs it to the lift cylinder, tilt cylinder, or auxiliary attachments based on operator input. For forklift fleet hydraulic pump replacement, contact us. Kingstream OEM.

INSTALLATION: Drain the hydraulic reservoir. Disconnect the pump inlet hose from the reservoir and the pressure outlet hose to the control valve. Unbolt the pump from the PTO adapter or mounting bracket. Install the new pump with a new mounting O-ring or gasket — improper sealing at the intake side causes cavitation and pump failure. Reconnect hoses with new O-rings or sealing washers. Before starting, fill the pump inlet port with clean hydraulic oil to ensure the pump is primed — dry starting destroys gear pumps within seconds. Start the engine at idle and verify pump pressure reaches 250 bar under load. Check all connections for leaks. For forklift fleet hydraulic system maintenance, contact us. Kingstream OEM.

SYMPTOMS OF PUMP FAILURE: Slow or jerky lift and tilt operation, excessive hydraulic system noise or whining, pump cavitation (growling sound from air in oil), hydraulic fluid overheating, metal particles in hydraulic oil, and complete loss of hydraulic functions. 1-year warranty. Kingstream OEM.

Technical Specifications

1-year warranty. Kingstream OEM. Contact us.
