Forklift Hydraulic Gear Pump CBHYCK-C32 F3.5-AT – Cast Iron

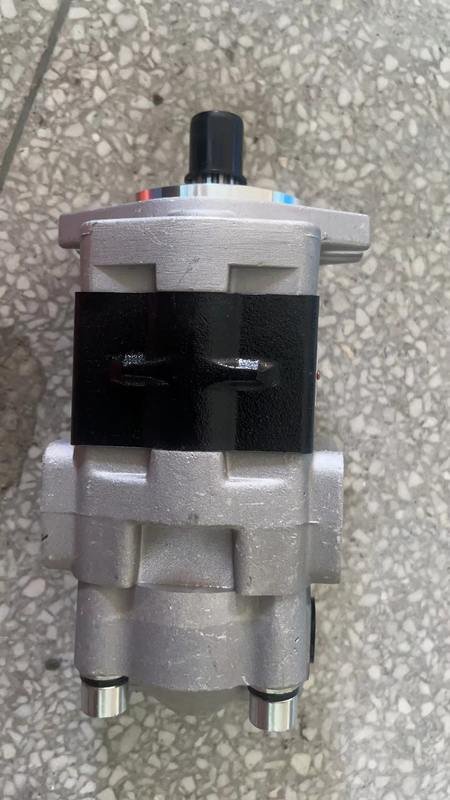

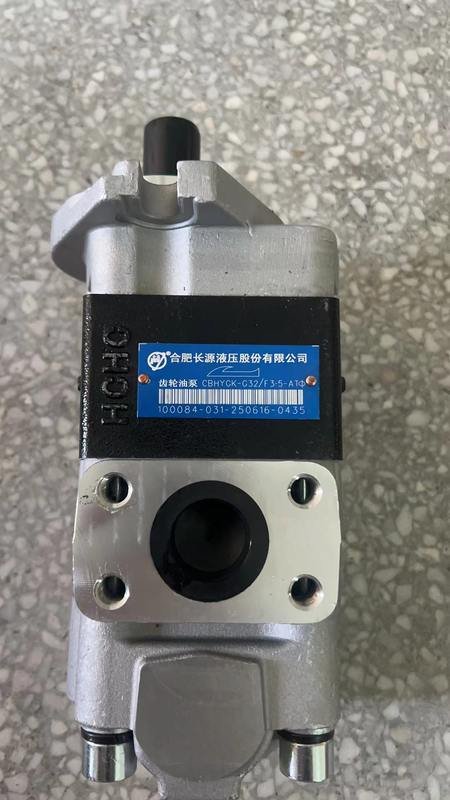

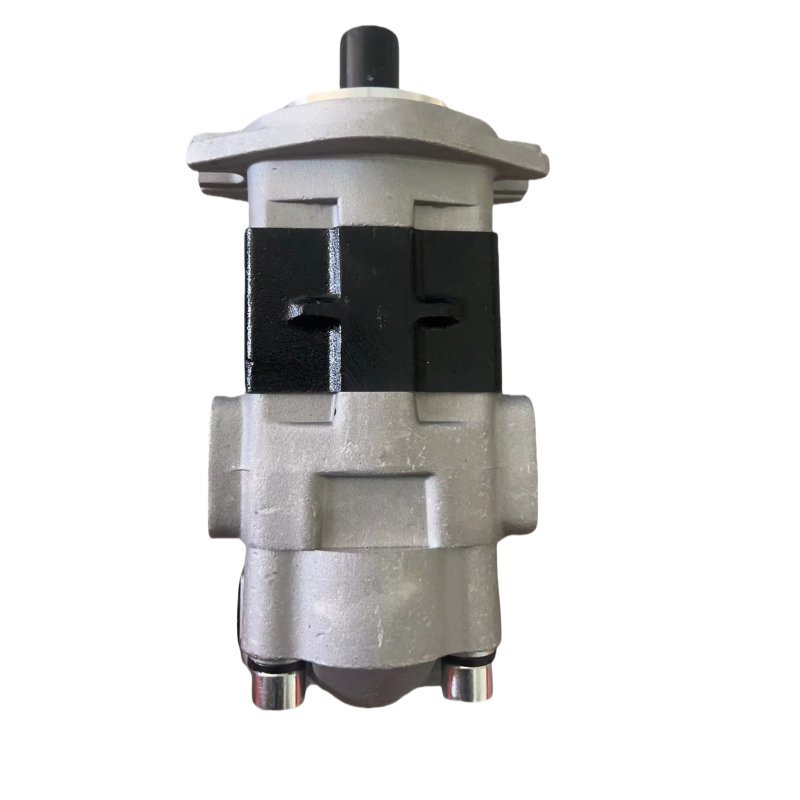

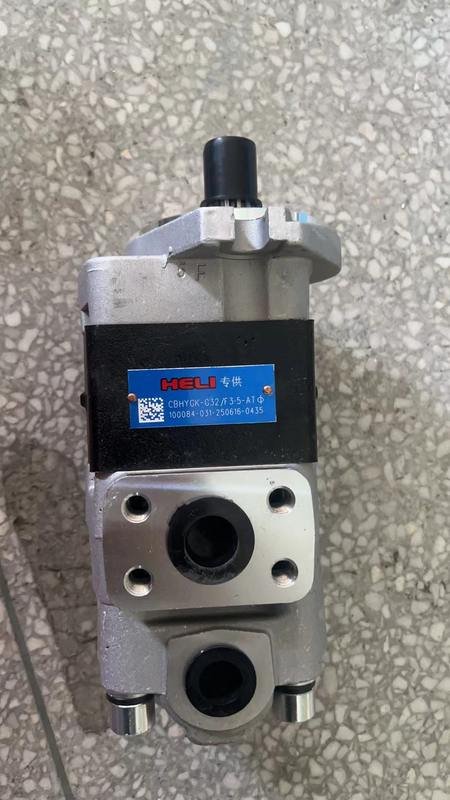

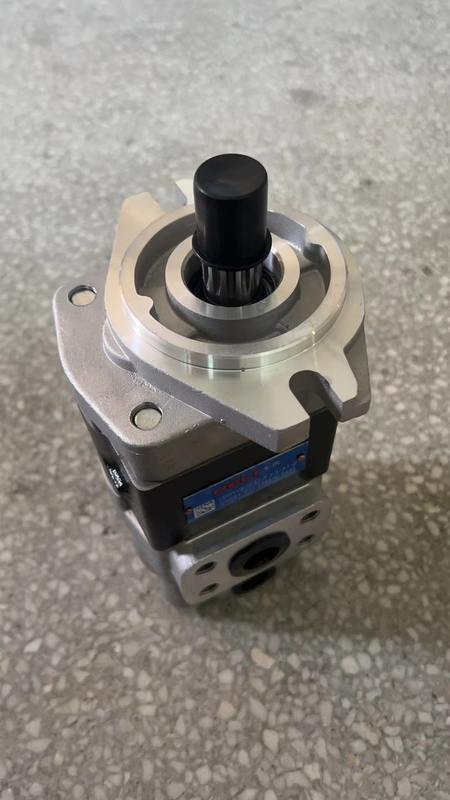

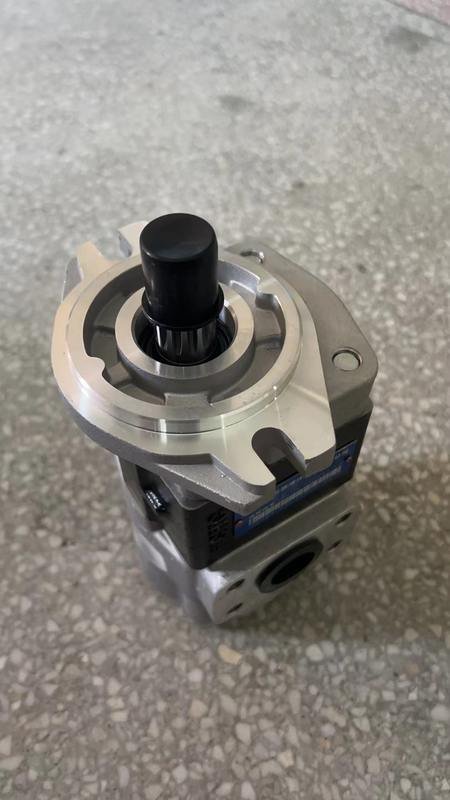

Forklift Hydraulic Gear Pump CBHYCK-C32 / F3.5-AT — Cast Iron Gear Pump for Forklift Hydraulic System

This forklift hydraulic gear pump model CBHYCK-C32 / F3.5-AT is a Kingstream OEM cast iron hydraulic gear pump for forklift trucks, construction equipment, and industrial hydraulic systems. The gear pump is the heart of the forklift hydraulic system — it converts engine mechanical power into hydraulic fluid flow and pressure by meshing two rotating gears inside a precision-machined housing, pumping oil from the reservoir through the control valve to the lift cylinder, tilt cylinder, and auxiliary attachments. The CBHYCK series features heavy-duty cast iron construction for durability in continuous-duty industrial applications. 10kg with 50×45×40cm wooden case packaging (80kg gross shipping weight). 1-year warranty. Online after-sales service. Custom color available. MOQ 1 piece. Kingstream OEM for forklift fleet hydraulic pump replacement.

GEAR PUMP OPERATING PRINCIPLE: The hydraulic gear pump consists of a matched pair of gears inside a close-tolerance housing — one gear is driven by the engine or PTO shaft, and the other is idler. As the gears rotate and the teeth unmesh on the inlet side, they create a vacuum that draws hydraulic oil into the pump. The oil is carried around the outside of the gears in the tooth spaces and discharged at high pressure on the outlet side where the teeth re-mesh. Gear pumps provide a steady, pulse-free flow of oil proportional to engine speed. The CBHYCK series includes multiple internal precision components: cylinder block, press pin, valve plate, barrel washer, piston motor, piston shoe, snap ring, shoe plate, oil seal, retainer plate, coil spring, bearing plate, friction plate, ball guide, disk spring, swash plate, and steel plate. Kingstream OEM.

INSTALLATION: Drain the hydraulic reservoir, disconnect the pump inlet and outlet hoses, unbolt the pump from its mounting bracket or PTO adapter, install the new pump with a new mounting gasket or O-ring, reconnect hoses with new O-rings and torque fittings to specification, refill hydraulic fluid, prime the pump by filling the inlet port with clean hydraulic oil before starting, start the engine at low idle and verify pump output pressure within specification, check for leaks at all connections. For forklift fleet hydraulic system pump replacement, contact us. Kingstream OEM.

Technical Specifications

1-year warranty. Kingstream OEM. Contact us.
