Forklift Control Box DQH-012 – CPCD30 4 Waterproof Plug 9+6+1+1

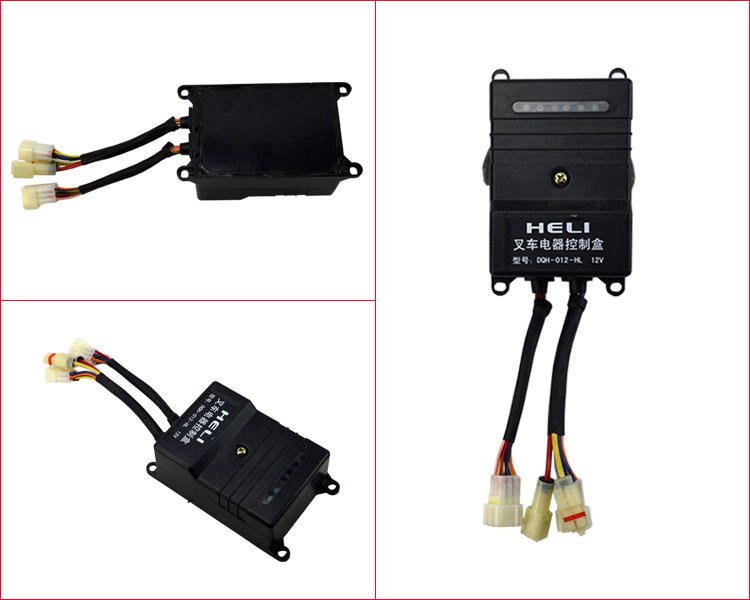

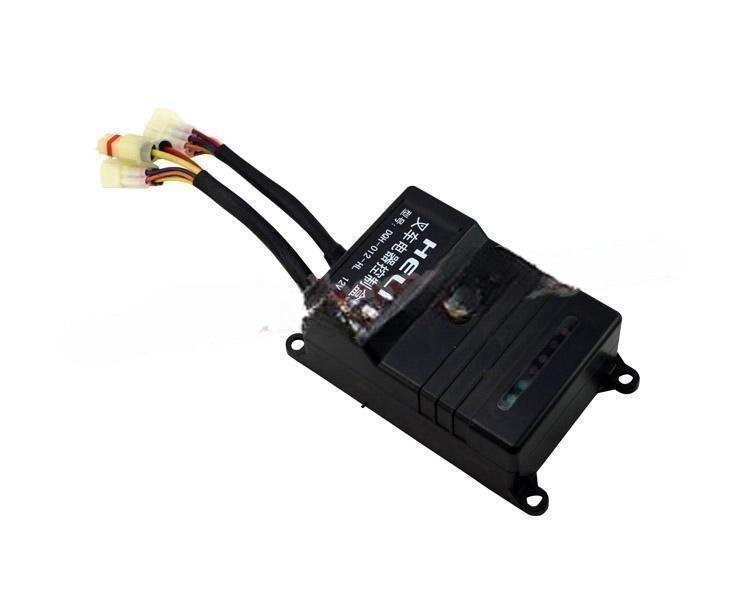

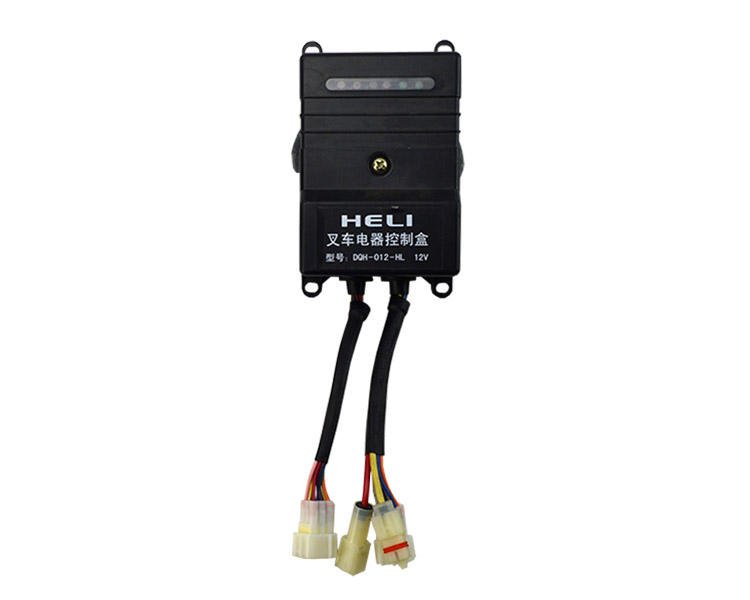

Forklift Control Box DQH-012 — Central Electrical Control Unit with 4 Waterproof Plugs (9+6+1+1) for HELI CPCD30 Forklift

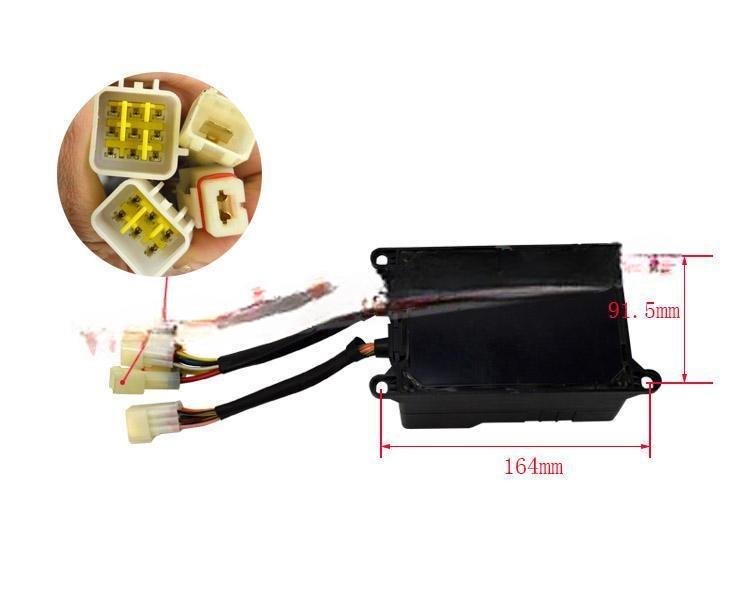

This forklift control box model DQH-012 is an OEM central electrical control unit designed specifically for HELI CPCD30 diesel forklifts in building material, manufacturing, retail, construction, and food and beverage environments. The DQH-012 serves as the central power distribution and circuit protection hub for the entire forklift electrical system — routing battery and alternator power through fused and relay-controlled circuits to the starter motor, glow plug system, lighting, instrument panel, horn, turn signals, ECU, and auxiliary equipment. The defining feature of this control box is its 4 waterproof plug configuration with a 9+6+1+1 port distribution: the 9-pin main connector handles the primary engine and drive circuits, the 6-pin connector manages the instrument panel and lighting circuits, and the two single-pin connectors provide dedicated power for high-current loads such as the starter relay and glow plug bus. This partitioned connector design prevents a single corroded or loose pin from disabling multiple unrelated systems — if the lighting circuit fails, the engine start and instrument panel circuits remain unaffected, improving diagnostic speed and reducing downtime. The waterproof plug design protects internal connectors from moisture ingress in washdown environments, outdoor rain exposure, and condensation from temperature cycling between cold storage and ambient warehouse conditions. ISO9001:2015 certified with 100% professional testing. 100% brand-new with 6-month warranty. 0.8kg net weight with 25×23×20cm compact packaging. Premium original quality compatible with CPCD30 and hl series forklifts.

Installing the DQH-012 control box requires disconnecting the battery negative terminal before any electrical work. The old control box is typically mounted on the firewall, under the dashboard, or in a dedicated electrical enclosure near the battery compartment. Before disconnecting the old box, label or photograph every plug position — the 9+6+1+1 port layout is keyed to prevent misconnection, but forcing a plug into the wrong socket can bend pins and cause intermittent electrical faults that are extremely difficult to diagnose because they appear as random system failures that come and go with vehicle vibration. After seating all four plugs in the new DQH-012, ensure each waterproof connector is fully locked — listen for the audible click from the locking tab on each plug. Test every electrical function systematically: turn signals left and right, headlights high and low beam, horn, instrument panel self-test at key-on, glow plug indicator, starter engagement, and any auxiliary equipment. For CPCD30 forklifts, pay special attention to the glow plug circuit — the 9-pin main connector typically routes glow plug power and a loose connection here will cause hard cold starting. 6-month warranty covers manufacturing defects in the internal relay and fuse contacts.

Browse our complete Forklift Control Box category for additional electrical control units and fuse panels. For HELI CPCD fleet maintenance programs, contact us.

Technical Specifications

Compatible Forklift Models

100% brand-new. 100% professional tested. ISO9001:2015 certified. 6-month warranty. Premium original quality. For bulk orders, contact us.
