Forklift Parts DC 24V Control Box for JAC Forklift, 100_ Premium (JAC-033)
$79.99
JAC-033 premium DC 24V control box for JAC CPCD 1T-7T diesel/LPG forklifts. Sealed steel IP55 enclosure with EPDM gasket, tin-plated copper bus bars, Deutsch-style waterproof connectors. Vibration-dampened relay mounting. OEM-spec replacement.

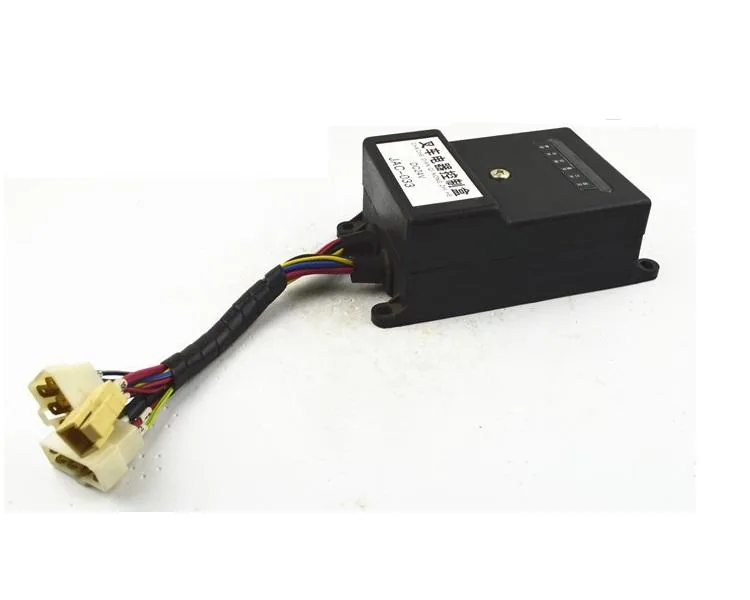

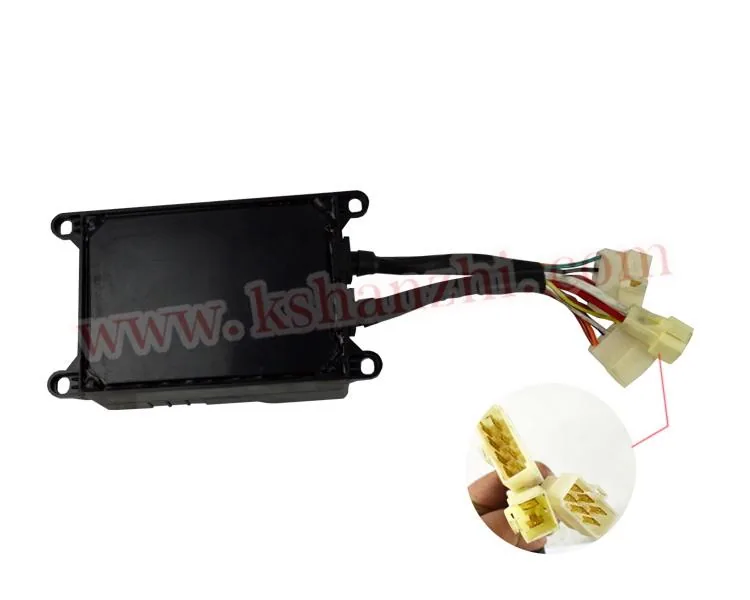

JAC-033 DC 24V Premium Control Box for JAC CPCD Diesel/LPG Forklift
The JAC-033 is a premium DC 24V control box assembly engineered as an OEM-spec replacement for JAC CPCD series diesel and LPG counterbalance forklifts. This sealed enclosure houses the main power relays, fuse panel, and terminal block — the electrical nerve center distributing 24V battery power to the starter solenoid, glow plug preheat relay, instrument cluster, lighting circuits, horn, wiper motor, and auxiliary systems. The control box is the single most common point of electrical failure on JAC forklifts in high-humidity Southeast Asian and coastal Chinese environments, where unsealed enclosures accumulate condensation that corrodes relay contacts and fuse holders within 2-3 service years.
The JAC-033 features a sealed steel enclosure with a continuous perimeter EPDM gasket and waterproof cable entry grommets achieving an IP55 protection rating — capable of withstanding low-pressure water jets during equipment washing. Internal relay mounts use vibration-dampening rubber isolators to prevent contact chatter, while the tin-plated copper bus bar assembly has each circuit labeled in Chinese and English for simplified field troubleshooting. External connectors use weatherproof Deutsch-style connectors matching the JAC factory wiring harness without adapter leads. Forklift control box category.
Technical Specifications
- OEM: JAC-033
- Type: DC 24V control box, premium grade
- Voltage: 24V DC nominal, 100A total load
- Enclosure: Sealed steel, EPDM gasket, IP55
- Cable Entries: Waterproof Deutsch-style grommets
- Bus Bar: Tin-plated copper, labeled CN/EN
- Relay Mounting: Rubber vibration isolators
- Circuits: Starter, glow plug, instruments, lights, horn, wiper, auxiliary
- Connectors: Deutsch-style panel connectors
- Fitment: JAC CPCD 1T-7T diesel/LPG
Compatible JAC Models
| Series | Capacity |
|---|---|
| CPCD10 | 1.0T diesel |
| CPCD15-18 | 1.5T-1.8T diesel/LPG |
| CPCD20-35 | 2.0T-3.5T diesel/LPG |
| CPCD50-70 | 5.0T-7.0T diesel/LPG |
Each JAC-033 ships sealed with a desiccant packet. Photograph existing wiring before removal — model year variations exist. Cycle each circuit individually before closing the enclosure. If a relay buzzes instead of clicking cleanly, check battery state of charge and clean all ground strap connections. Baldwin Filters. Kingstream stocks JAC-033 premium control boxes for same-day dispatch — worldwide shipping with online tracking.
