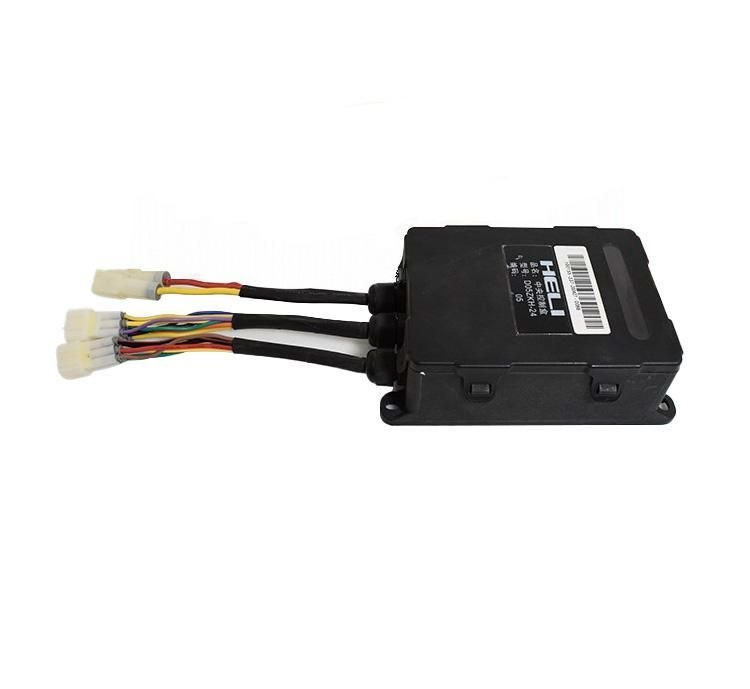

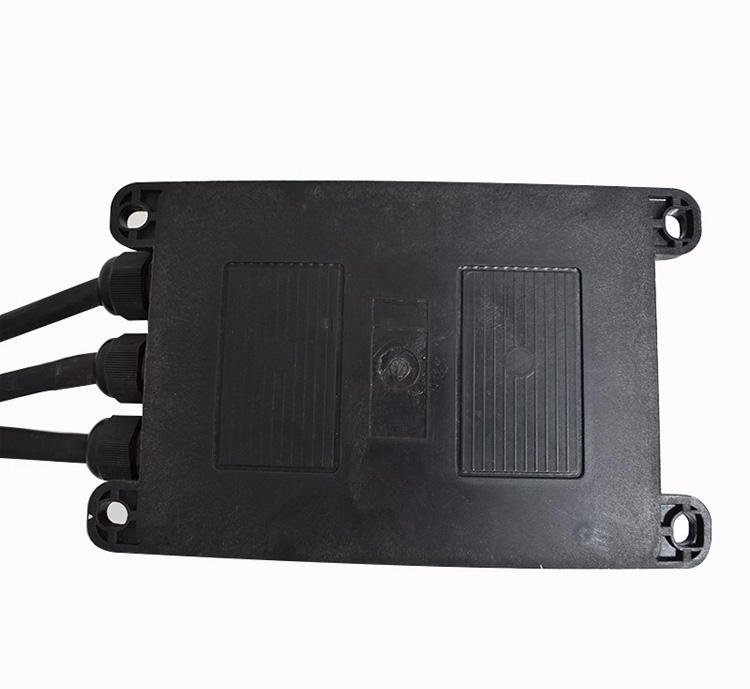

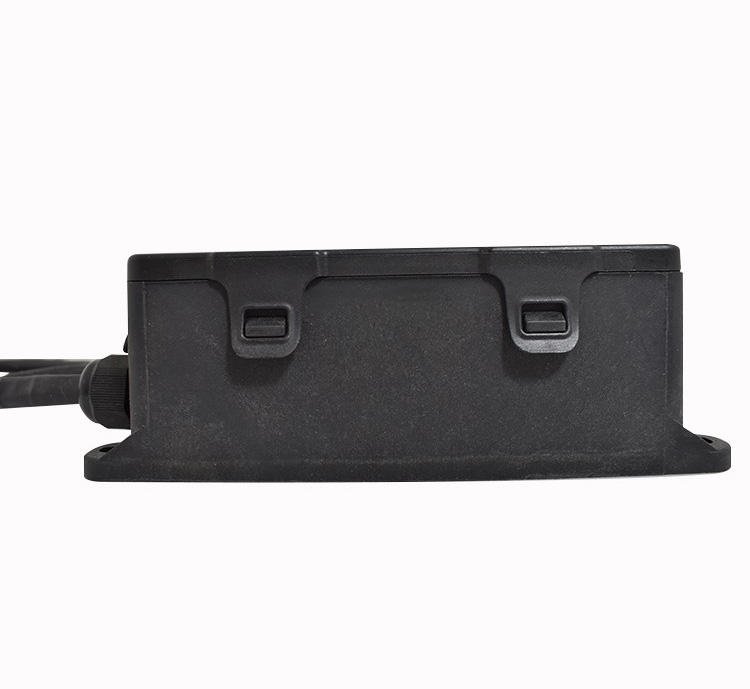

Forklift Control Box D05ZKH-24 — Electric Central Control Unit for 5-10 Ton Forklift Trucks

This forklift control box model D05ZKH-24 is an Kingstream OEM electric central control unit designed for 5-10 ton heavy-duty forklift trucks in building material, manufacturing, food and beverage, construction, port, logistics, freight yard, and mining environments. The D05ZKH-24 serves as the main electrical distribution and protection hub for 5-10 ton electric forklifts — a substantially more demanding application than smaller forklifts because the higher-capacity drive motors, hydraulic pump motors, and power steering systems draw significantly more current, requiring heavier-gauge internal bus bars, higher-rated relays, and more robust fuse protection within the control box. The increased current demands of 5-10 ton electric forklifts mean that a failed or undersized control box can experience internal overheating, melted fuse holders, welded relay contacts, and insulation breakdown — problems that cascade from a single failed component to a complete electrical system failure if not addressed. The D05ZKH-24 is engineered specifically for this heavy-duty current range with appropriately rated internal components. Each unit undergoes 100% professional testing before shipment with carton box packaging and 7-15 day delivery. 1kg net weight. OEM available for fleet operators.

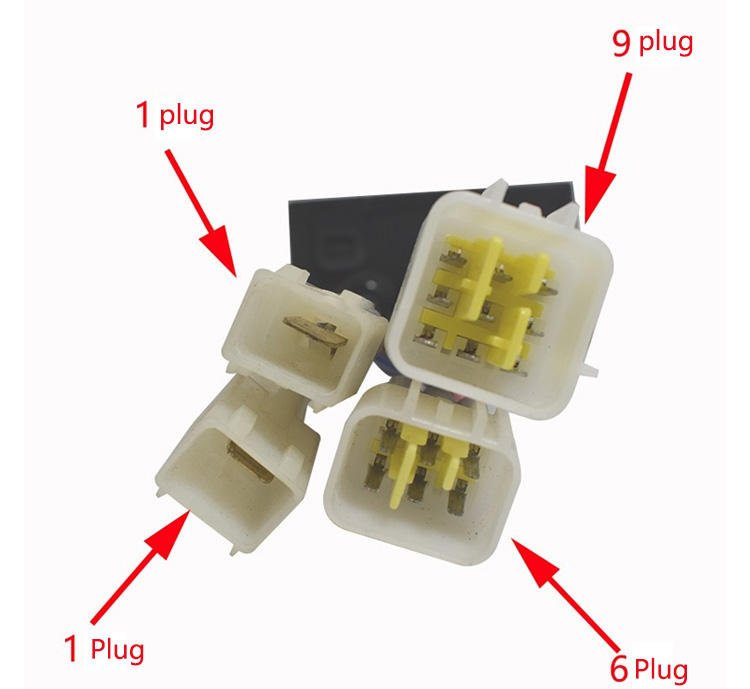

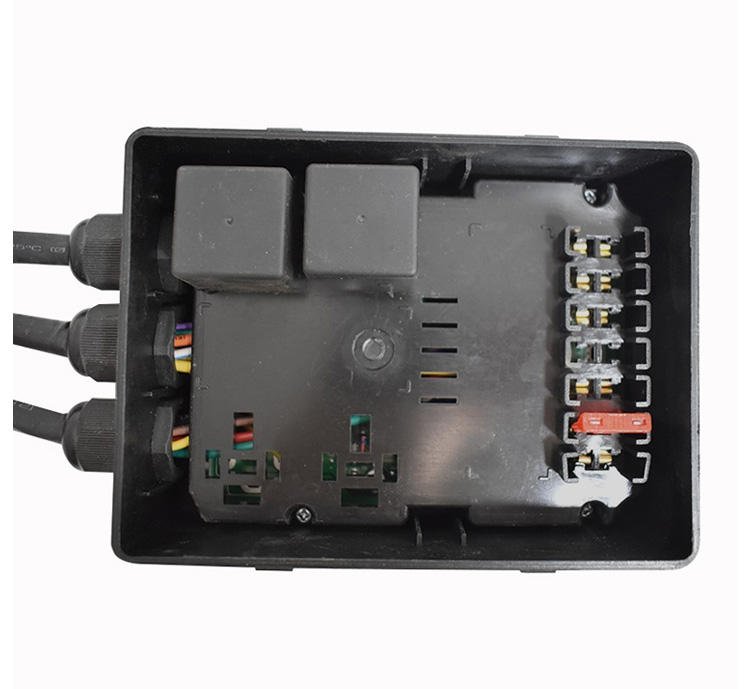

Installing the D05ZKH-24 control box on a 5-10 ton electric forklift requires disconnecting the battery — on electric forklifts this means disconnecting the main battery connector, not just turning the key off, because the control box is directly connected to the battery bus and any short circuit during installation can cause an arc flash capable of severe injury and equipment damage. Before removing the old control box, photograph every connector position and label each wire harness plug. The internal relays and fuse holders in a 5-10 ton control box handle significantly higher sustained current than smaller forklift control boxes — after installation, load-test every high-current circuit by operating the forklift under full rated load (lift 5-10 tons) while monitoring for any burning smell, unusual heat from the control box housing, or intermittent electrical faults that indicate poor internal contact. The control box housing should remain warm but not hot to the touch during sustained operation. For electric forklifts, also verify the battery charge indicator and hour meter function correctly through the control box circuits. 100% professional tested quality.

Browse our complete Forklift Control Box category for additional control units for CPCD30 and JAC series forklifts. For heavy-duty electric forklift fleet maintenance programs, contact us.

Technical Specifications

Compatible Forklift Models

100% professional tested. Carton box packaging. OEM available. For bulk orders, contact us.
