Forklift Parts HELI 3t Forklift Control Box 30E Central Control Box Fuse Box
$89.99
HELI OEM 30E central control box and integrated fuse panel for CPCD30/CPD30 3T H2000 forklifts. Formed steel IP43 enclosure, tin-plated copper bus bars, ATO/ATC blade fuse circuits 5A-40A. Bolt-in and plug-in OEM replacement.
HELI 30E Central Control Box Fuse Panel for CPCD30/CPD30 3T Forklift

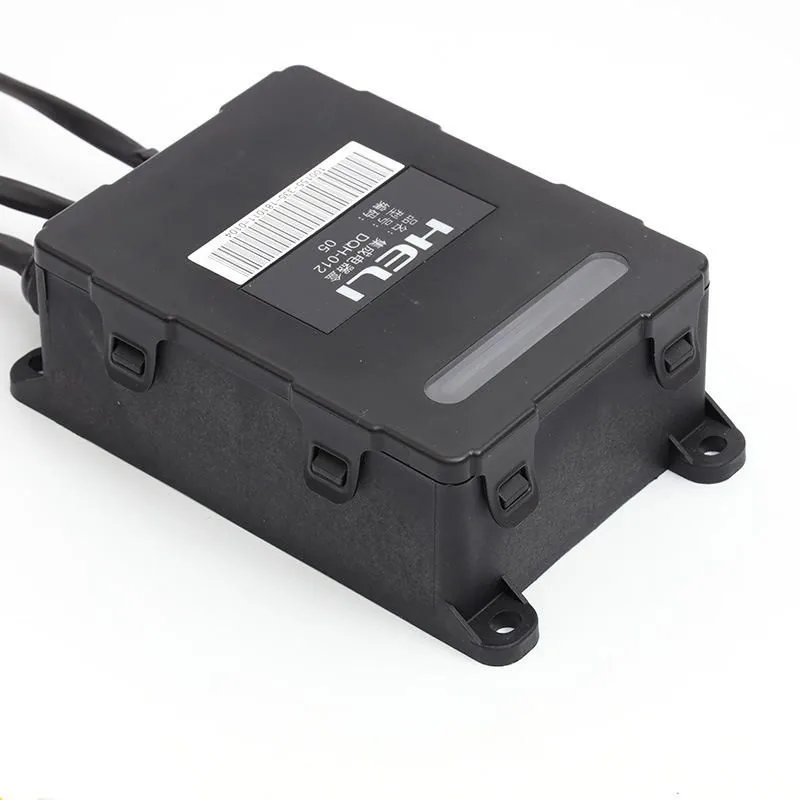

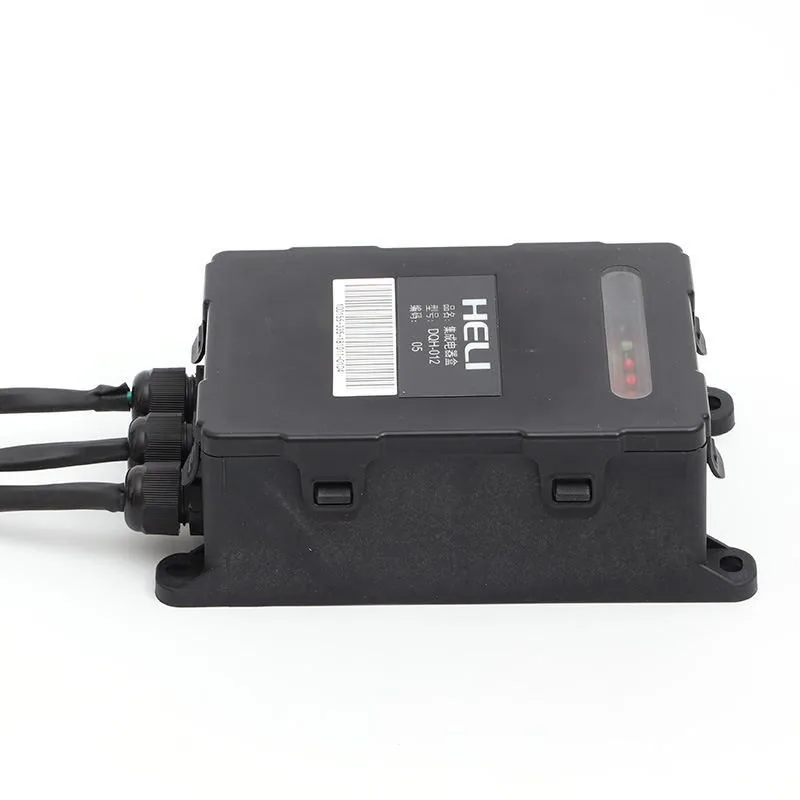

The HELI 30E central control box is an OEM electrical distribution and fuse panel assembly for HELI CPCD30 (diesel/LPG) and CPD30 (electric) 3-ton H2000 series forklifts. This enclosed enclosure serves as the single-point power distribution hub routing battery or alternator power through individually fused circuits to the traction controller, hydraulic pump contactor, instrument cluster, lighting, horn, wiper motor, and auxiliary DC-DC converter. When a HELI 3T forklift presents multiple simultaneous electrical failures — dead dashboard, no-crank, inoperative lights, and silent hydraulic pump — the root cause frequently traces to internal corrosion, overheated bus bars, or melted fuse holders within the 30E control box, not individual component failures.
The 30E features a formed steel enclosure with a hinged gasketed access cover providing tool-free fuse inspection while maintaining an IP43 seal against dust and dripping water. Internal bus bars use tin-plated copper for maximum conductivity with ATO/ATC blade fuse receptacles rated from 5A (instrument panel) to 40A (hydraulic pump contactor coil). The enclosure bolt pattern matches HELI H2000 chassis weld-nuts, and the multi-port connector panel accepts OEM wiring harness connectors without adapter leads — a bolt-in and plug-in replacement completed within 30 minutes. Forklift control box category.
Technical Specifications
- OEM: 30E (HELI H2000)
- Type: Central distribution control box with integrated fuse panel
- Voltage: 48V-80V DC (electric), 12V DC (diesel/LPG auxiliary)
- Enclosure: Formed steel, hinged gasketed cover, IP43
- Bus Bar: Tin-plated copper
- Fuse Type: ATO/ATC blade, 5A-40A circuits

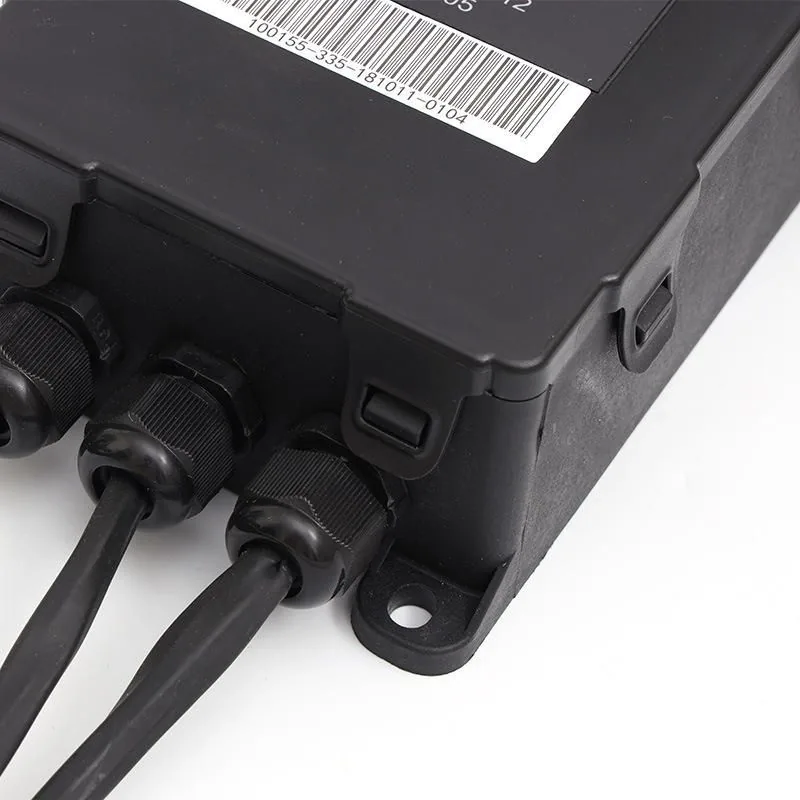

- Connector: Multi-port panel, HELI OEM harness compatible
- Circuits: Traction controller, hydraulic pump, instruments, lights, horn, wiper, DC-DC converter
- Fitment: CPCD30/35 (A30/A35), CPD30/35, CPCD25/CPD25
Compatible HELI Models
| Model | Series / Capacity |
|---|---|
| CPCD30 | A30 series, 3.0T diesel/LPG |
| CPCD35 | A35 series, 3.5T diesel/LPG |
| CPD30 | 3.0T electric |
| CPD35 | 3.5T electric |
| CPCD25 | 2.5T diesel/LPG (cross-compatible) |
| CPD25 | 2.5T electric (cross-compatible) |
Each 30E ships with cover secured. Before installation, disconnect both battery terminals and verify zero voltage at the main contactor — CPD30 capacitor banks retain over 300V DC for up to 10 minutes after disconnect. Cycle each fused circuit individually after installation. Never replace a blown fuse with a higher amperage rating. Baldwin Filters. Kingstream stocks HELI 30E control boxes for same-day dispatch — worldwide shipping with online tracking.
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
