10T Brake Shoe Spare Parts Forklift Accessories Forklift Brake Shoe for Heli Forklift
$249.99
10-ton brake shoe set for HELI CPCD100 heavy-duty forklifts. Full axle set (4 shoes), extra-thick semi-metallic lining, 4mm high-carbon steel backing plates, brass rivets. OEM replacement, 12-month warranty at Kingstream.

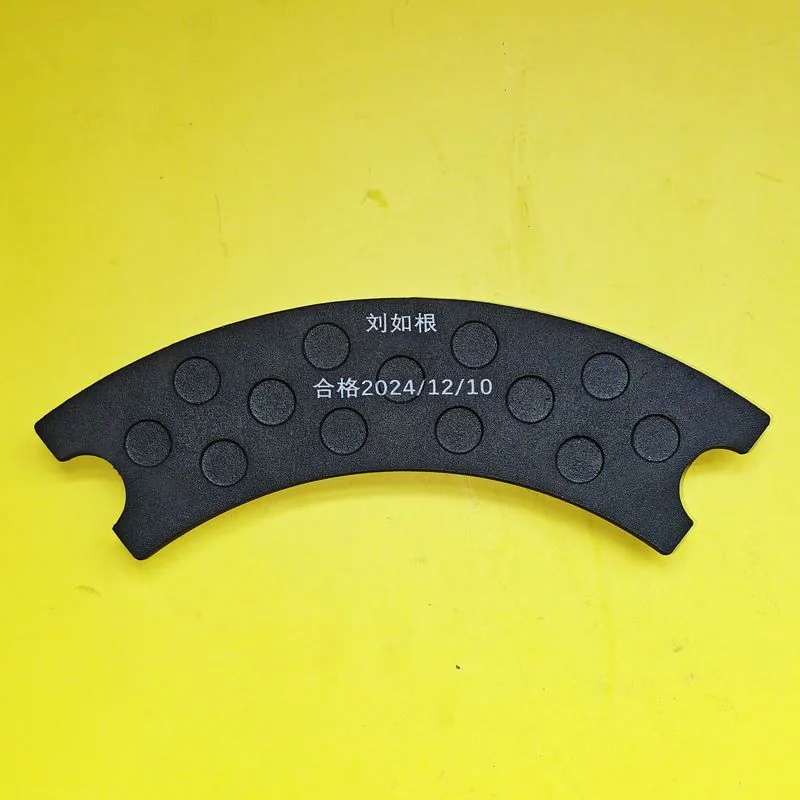

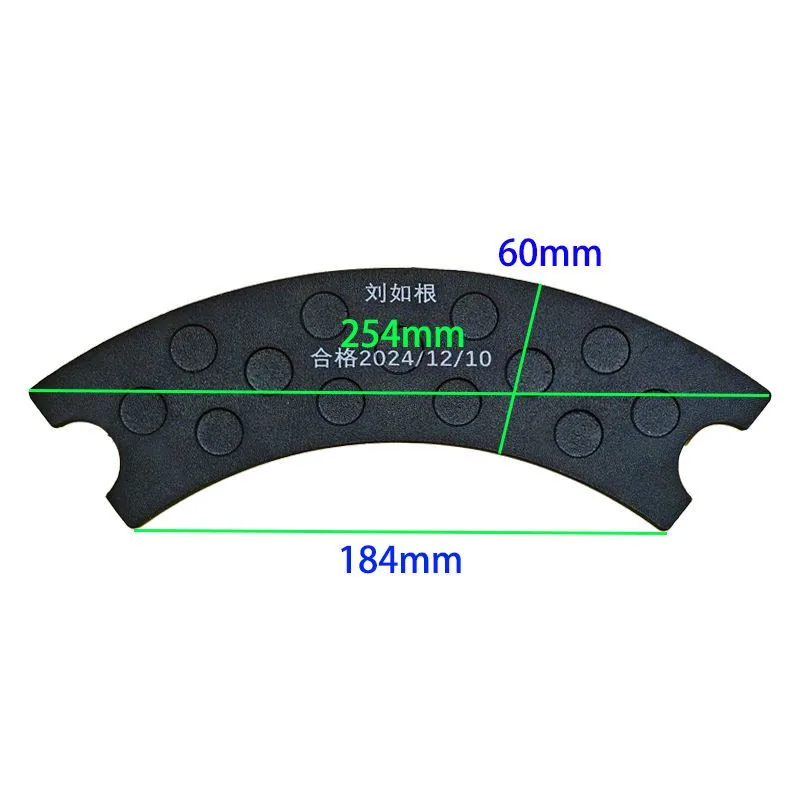

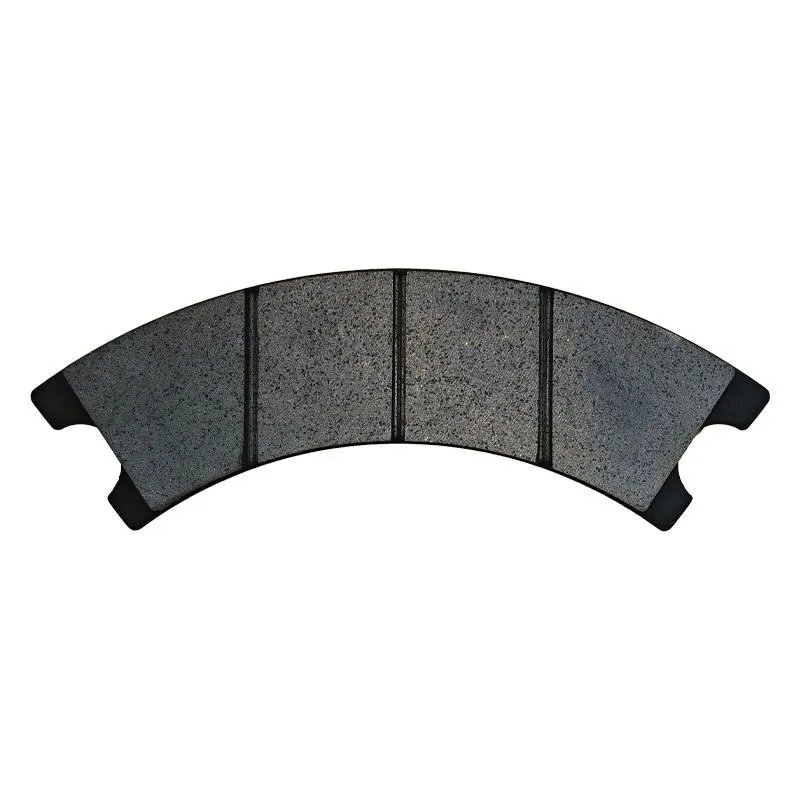

10T Forklift Brake Shoe Set for HELI Heavy-Duty Forklifts
This 10-ton forklift brake shoe set is engineered for HELI CPCD100 and equivalent 10-ton heavy-duty counterbalance forklifts operating in demanding industrial environments such as ports, steel mills, and heavy manufacturing facilities. Each set includes four oversized brake shoes (primary and secondary, left and right axle sets), manufactured with extra-thick semi-metallic friction linings bonded and riveted to heavy-gauge steel backing plates. The lining compound is formulated for the extreme heat loads generated when decelerating 10,000 kg loads, providing consistent friction coefficient with minimal fade even during repeated heavy braking cycles.
The brake shoes feature a 30% thicker lining profile compared to standard 3T-class shoes, delivering extended service life under severe-duty conditions where brake temperatures can exceed 400°C. The steel backing plates are stamped from 4mm high-carbon steel with reinforced anchor pin bosses for the higher mechanical loads transferred through the brake system on 10-ton forklifts. Each shoe is clearly marked as primary (leading) or secondary (trailing), and the rivet pattern uses brass rivets for corrosion resistance and consistent shear strength throughout the lining wear life.
Direct bolt-in replacement for HELI CPCD100, CPQD100, and equivalent 10-ton forklift models using drum-type front brakes. These shoes are also cross-compatible with select 8-12 ton models from Hangcha, Lonking, and other heavy-duty domestic forklift manufacturers. Always replace brake shoes in complete axle sets and inspect the brake drums for heat checking, scoring, or wear ridges before installation. For compatible 10-ton brake drums, wheel cylinders, and complete brake overhaul kits, visit our Forklift Brake Parts section. For HELI heavy-duty brake service specifications, refer to HELI Forklift technical manuals.
Technical Specifications
- SKU: HELI-10T-BRAKE-SHOE
- Capacity: 10.0 Ton Forklift
- Contents: 4 Shoes (Full Axle Set)
- Lining: Extra-Thick Semi-Metallic, Asbestos-Free
- Backing Plate: 4mm High-Carbon Steel
- Rivets: Brass, Corrosion-Resistant
- Fluid: DOT 3 / DOT 4 Compatible
Compatible Forklift Models
| Brand | 10-Ton Class Models |
|---|---|
| HELI | CPCD100, CPQD100 |
| Hangcha | CPCD100 Series |
| Lonking | CPCD100, LG100DT Series |
| Other Domestic | 8-12T Heavy-Duty Drum Brakes |
Each brake shoe set is inspected for lining thickness, rivet integrity, and arc radius accuracy. The shoes are packed in pairs with interleaf paper, sealed in a VCI anti-corrosion bag. 12-month warranty. Installation tip: after fitting, perform a brake bedding procedure — 15-20 moderate stops from low speed. For fleet brake programs, contact our team.
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
