3T Brake Shoe Spare Parts Forklift Accessories Forklift Brake Shoe for Heli Forklift
$159.99
3-ton brake shoe set for HELI CPCD30, CPCD35, CPQD30-35 forklifts. Full axle set (4 shoes), semi-metallic lining, CNC-stamped steel backing plates. Direct OEM replacement, 12-month warranty at Kingstream.
3-Ton Forklift Brake Shoe Set for HELI CPCD30-35 Forklifts

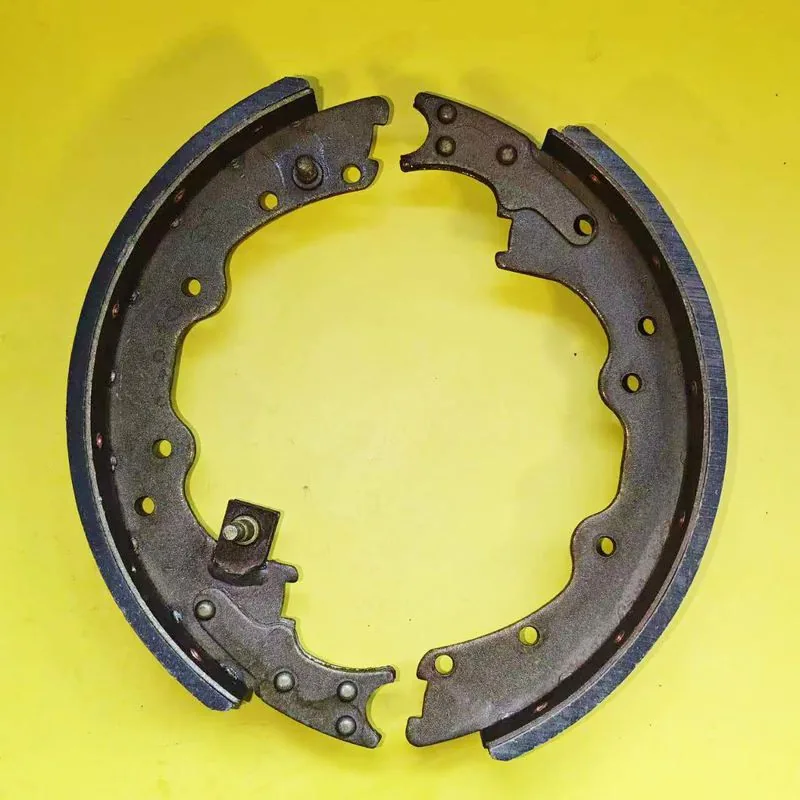

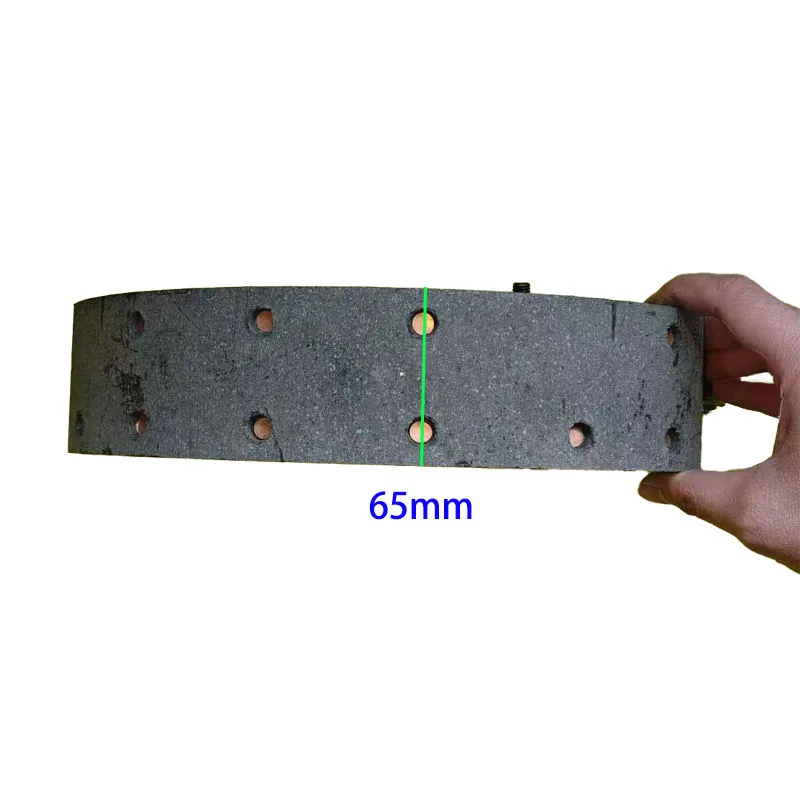

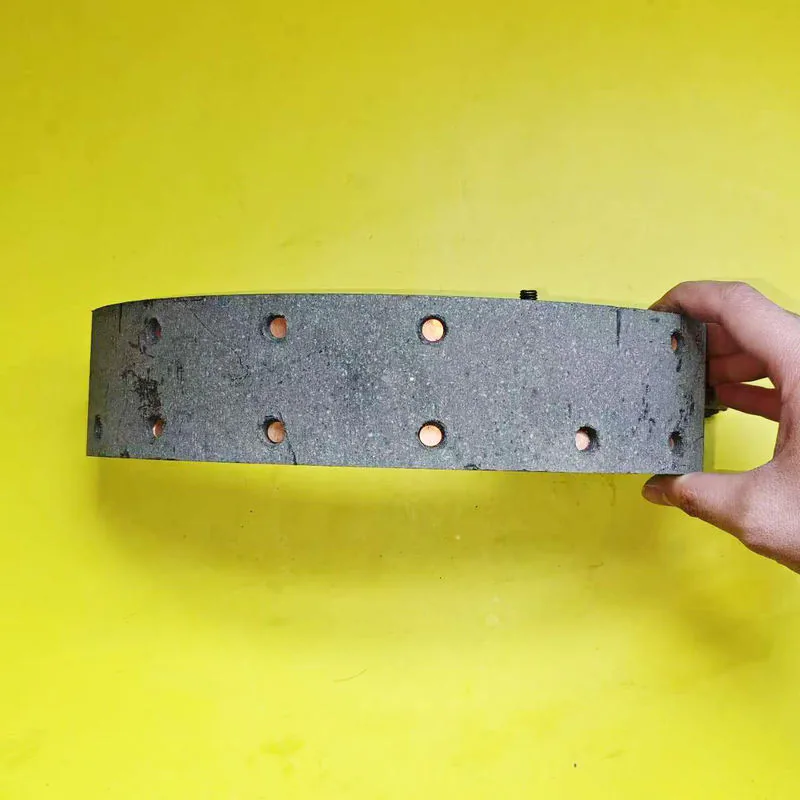

This 3-ton forklift brake shoe set is designed as a direct OEM-spec replacement for HELI CPCD30, CPCD35, CPQD30, CPQD35, and equivalent 3-3.5 ton internal combustion forklifts equipped with drum-type front brake systems. Each set includes four brake shoes (primary and secondary, left and right axle sets), manufactured with high-friction semi-metallic lining material bonded and riveted to precision-stamped steel backing plates. The lining compound is formulated for the moderate-to-high operating temperatures of 3-ton forklift duty cycles, providing consistent friction coefficient with excellent resistance to glazing and fade during repeated heavy-load braking operations.

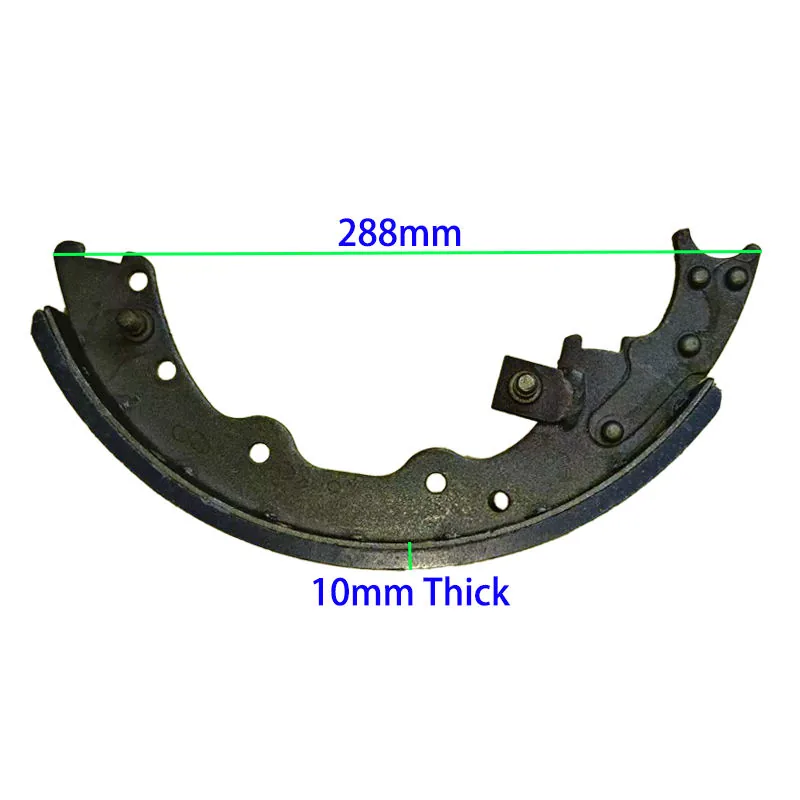

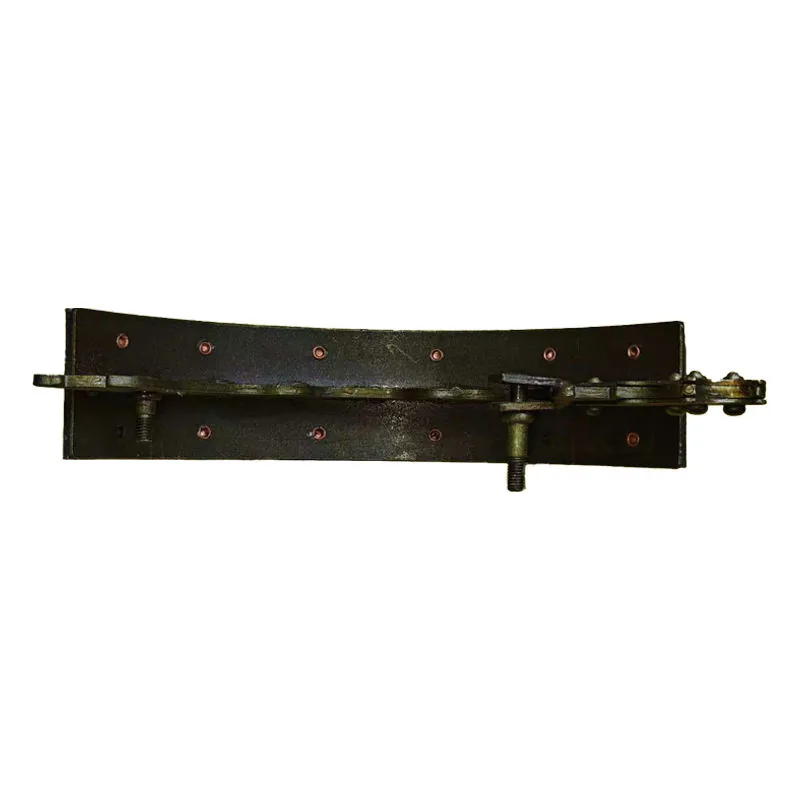

The brake shoes use an asbestos-free semi-metallic friction material with a balanced filler-to-fiber ratio that optimizes both friction performance and lining wear rate for extended service intervals in warehouse, logistics, and manufacturing environments. The steel backing plates are CNC-stamped to match the HELI OEM arc radius specifications for CPCD30-35 class brake drums, ensuring maximum shoe-to-drum contact area. Each shoe is clearly marked as primary (leading) or secondary (trailing) to prevent installation errors, and all anchor pin slots, spring holes, and parking brake lever notch positions match HELI OEM dimensions exactly.
Direct bolt-in replacement for HELI CPCD30, CPCD35, CPQD30, CPQD35, CPD30, CPD35, and equivalent 3-3.5 ton forklift models using drum-type front brakes. Always replace brake shoes in complete axle sets (all four shoes) to maintain balanced left-right braking. Inspect the brake drums for scoring, heat checking, or wear ridges before installing new shoes. For compatible brake drums, wheel cylinders, hardware spring kits, and DOT 3/DOT 4 brake fluid, visit our Forklift Brake Parts section. For HELI brake torque specifications and service procedures, refer to HELI Forklift technical manuals.
Technical Specifications
- SKU: HELI-3T-BRAKE-SHOE
- Capacity: 3.0 – 3.5 Ton Forklift
- Contents: 4 Shoes (Full Axle Set: L+R, Primary+Secondary)
- Lining: Semi-Metallic, Asbestos-Free
- Backing Plate: CNC-Stamped Steel
- Attachment: Bonded + Riveted
- Fluid: DOT 3 / DOT 4 Compatible
Compatible HELI Forklift Models
| Model | Capacity / Type |
|---|---|
| HELI CPCD30 / CPCD35 | 3.0-3.5T Diesel |
| HELI CPQD30 / CPQD35 | 3.0-3.5T Gas/LPG |
| HELI CPD30 / CPD35 | 3.0-3.5T Electric |
| Other 3T Domestic | Equivalent Drum Brake Systems |
Each brake shoe set is inspected for lining thickness, bonding integrity, and dimensional accuracy. The shoes are packed in pairs with interleaf paper, sealed in a VCI anti-corrosion bag. 12-month warranty. After installation, perform a brake bedding procedure of 10-15 moderate stops from low speed. For fleet brake service programs, contact our team.
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
Follow these four steps to get the fastest and most accurate quotation. The more details you provide, the quicker we can confirm compatibility and pricing.
Send Your Part Number or Forklift Information
Provide the OEM part number, a clear photo of the old part, or the forklift brand and model. Any one of these works. We'll use it to cross-match the correct part.
Tell Us Your Quality Preference and Quantity
Choose Original, OEM, or Aftermarket quality. Let us know how many pieces you need — a single trial unit or a bulk order. We'll quote accordingly.
Provide Your Destination and Shipping Preference
Tell us the destination country and preferred shipping method (sea freight, air freight, or express courier). This helps us calculate delivery time and cost accurately.
Combine Related Parts (Optional)
If you need other forklift parts, include them in the same inquiry. We support mixed order consolidation — less freight cost, less paperwork.
Request Forklift Parts Quotation
📦 Part Number
If you already have the OEM number or reference number, quotation and matching will usually be much faster.
🚜 Forklift Model or Serial
If the exact part number is not available, forklift model details can help narrow the correct product range.
📸 Product Photos
Clear old-part photos, labels or packaging images are useful when buyers need help confirming the correct part.
🌍 Quantity & Destination
Quantity, country and shipping terms help improve quotation structure for EXW, FOB or CIF comparison.
