Forklift Hydraulic Clutch Assy 14883-80201 – FD20-30Z5 FD20-30T6
$170.99
TCM forklift hydraulic clutch assembly 14883-80201 for FD20-30Z5 and FD20-30T6 2-3 ton powershift transmissions. OEM clutch pack with friction discs, steel plates, piston, and housing.

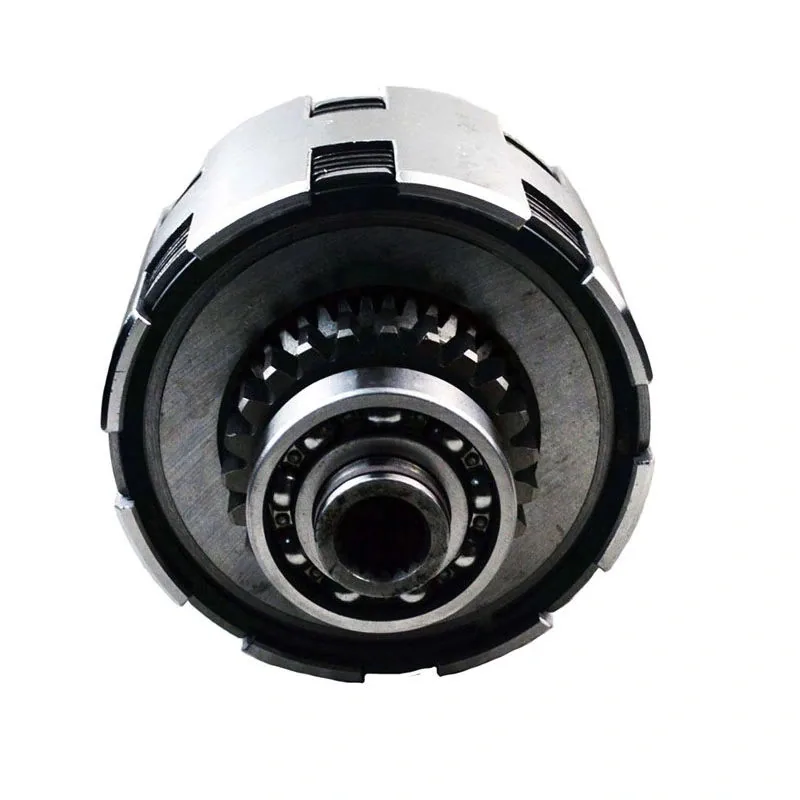

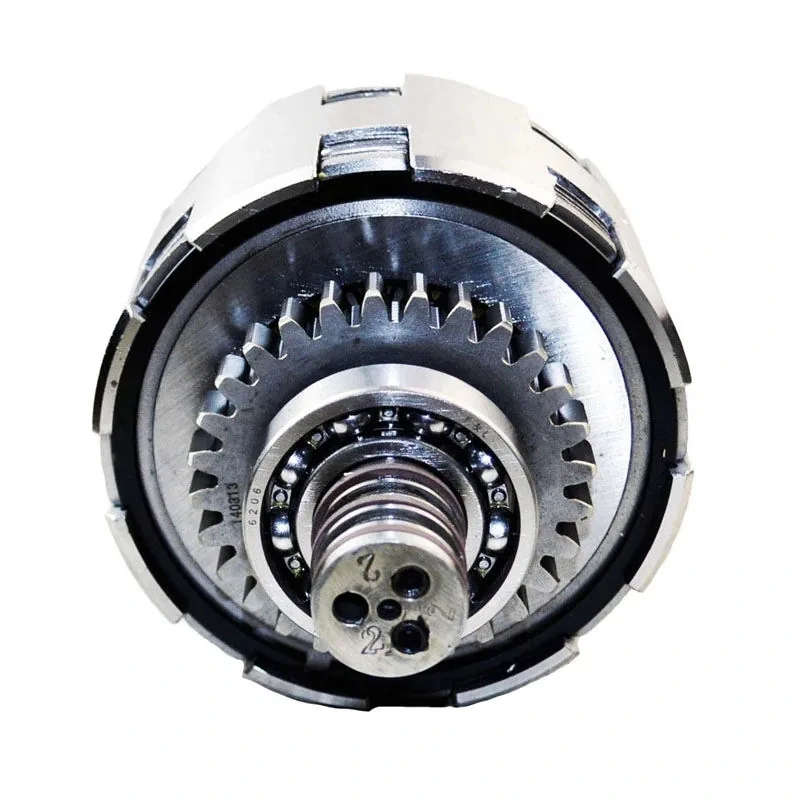

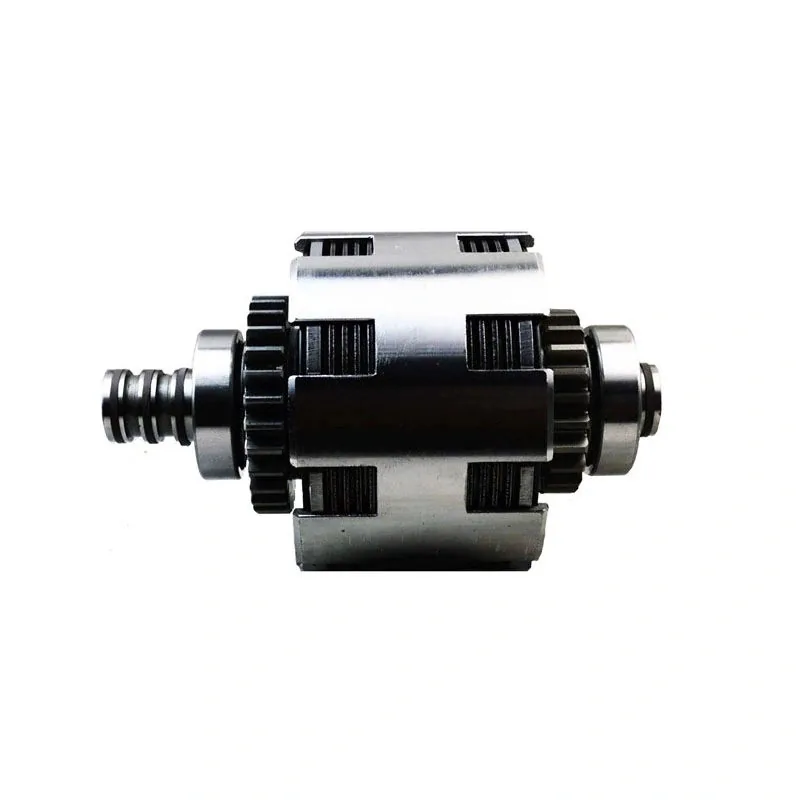

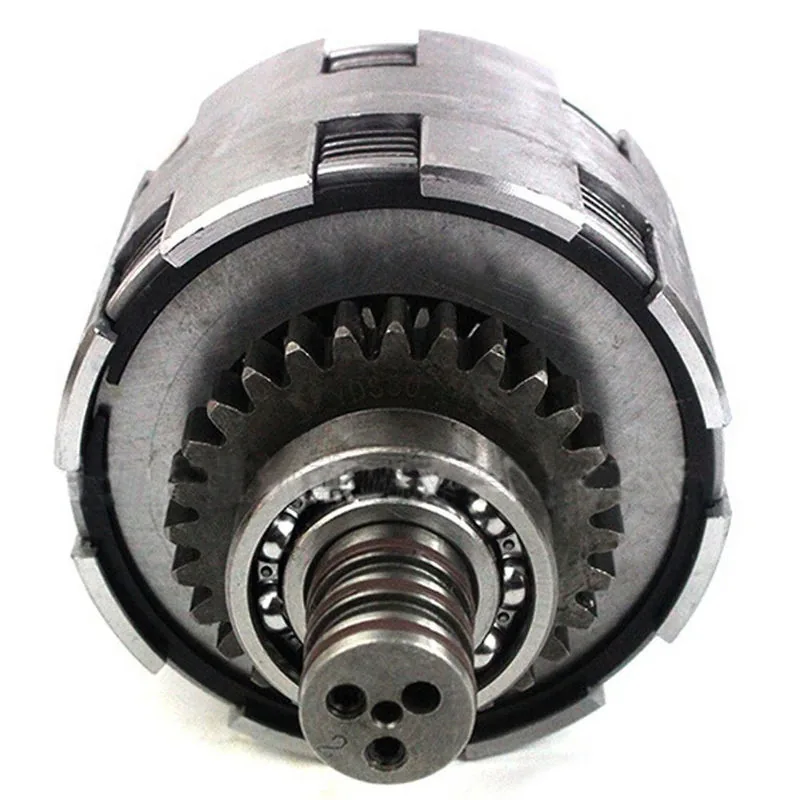

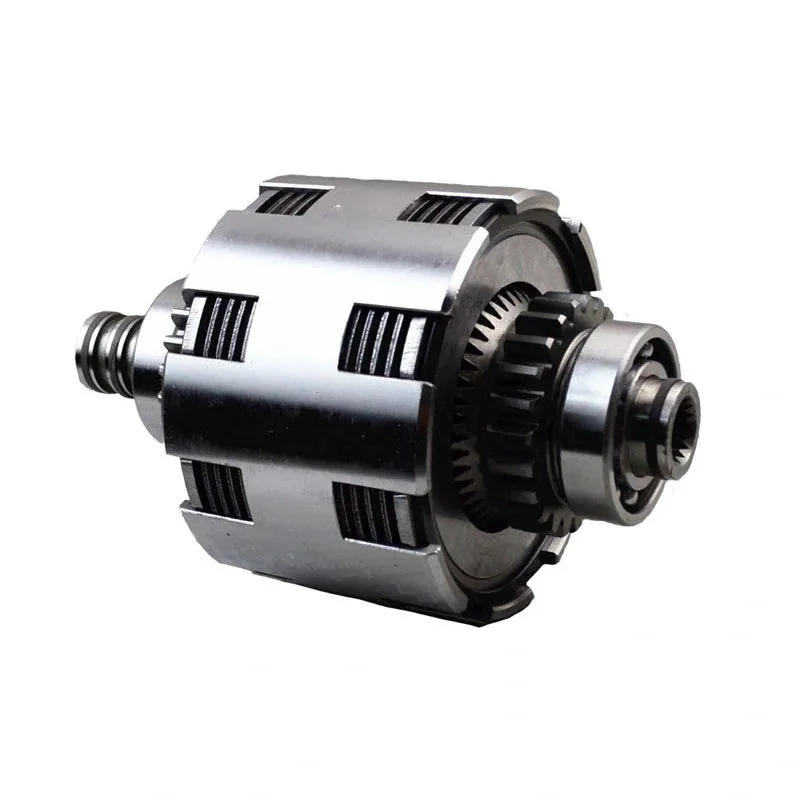

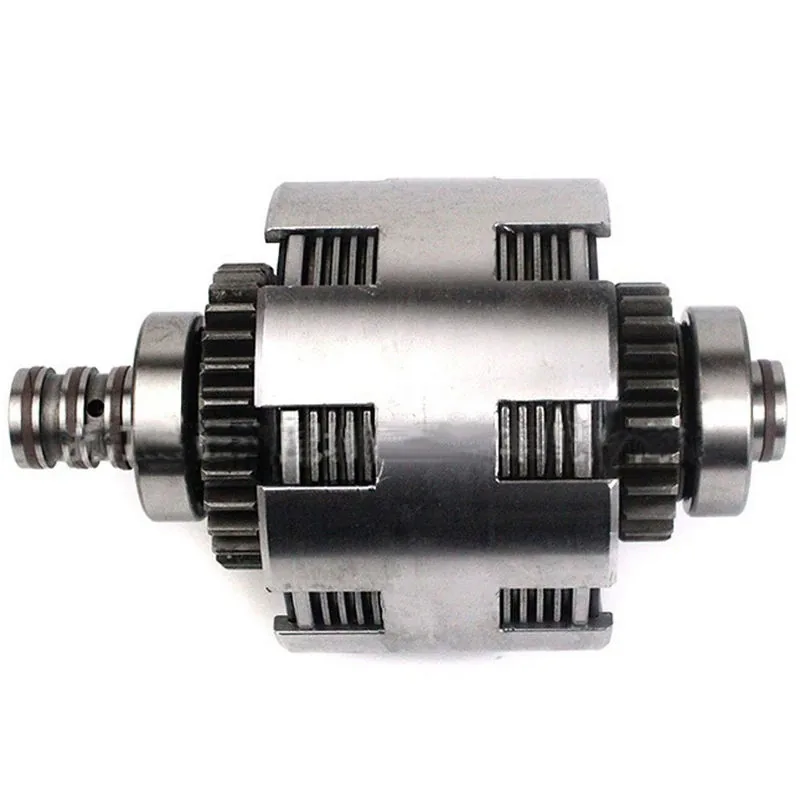

Forklift Hydraulic Clutch Assembly 14883-80201 — FD20-30Z5 / FD20-30T6 TCM Forklifts
The 14883-80201 hydraulic clutch assembly is the OEM-spec forward/reverse clutch pack for TCM FD20-30Z5 and FD20-30T6 series forklifts with powershift transmissions. This complete assembly includes the clutch friction discs, steel separator plates, hydraulic piston, return springs, and housing — pre-assembled and tested as a single drop-in unit for transmission rebuild applications. The 14883-80201 clutch pack handles the full engine torque transfer from the torque converter to the transmission output shaft, engaging and disengaging hydraulically through the transmission control valve without mechanical clutch pedal input.
This clutch assembly fits both the FD20-30Z5 (standard) and FD20-30T6 (heavy-duty) TCM forklift series, covering the 2-3 ton capacity range. The Z5 and T6 transmissions share the same clutch pack specifications — the 14883-80201 is interchangeable between both series. Common failure indicators include: delayed forward or reverse engagement after shifting (friction disc wear below minimum thickness); transmission fluid overheating and darkening (clutch slippage generating excess heat); metallic chattering noise during gear changes (warped steel separator plates); and burnt odor from the transmission dipstick (severe clutch pack failure). The clutch pack must be replaced as a complete assembly — individual friction discs are not separately serviceable in the TCM transmission design.
Installation requires transmission removal and partial disassembly to access the clutch pack housing. Soak the new friction discs in clean transmission fluid for 30 minutes minimum before installation. Replace the piston seals and housing O-rings — reusing old seals is the primary cause of post-rebuild clutch pack failure due to internal pressure leaks. After assembly, verify clutch pack end-play with a feeler gauge per TCM specification; insufficient clearance causes clutch drag and overheating, while excessive clearance causes harsh engagement and accelerated wear. For related TCM transmission components, browse our Forklift Hydraulic Transmission Parts catalog.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 14883-80201 |
| SKU | SP100300 |
| Type | Hydraulic Clutch Assembly / Clutch Pack |
| Application | FD20-30Z5 / FD20-30T6 |
| Transmission | TCM Powershift |
| Capacity | 2-3 Ton Forklifts |
Compatible Forklift Models
| Brand | Models |
|---|---|
| TCM | FD20Z5, FD25Z5, FD30Z5, FD20T6, FD25T6, FD30T6 (2-3 ton, powershift transmission) |
Each clutch assembly is 100% inspected and packaged for safe international freight. Standard air delivery to major ports worldwide. For compatibility verification or bulk orders, contact our team with your TCM forklift model and serial number.
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
