Forklift Hydraulic Clutch Assy 14883-80201 – FD20 FD30
$37.99
Forklift hydraulic clutch assembly 14883-80201 for FD20 FD30 2-3 ton Chinese brand forklifts. Zhongnan OEM clutch pack with friction discs, steel plates, and piston. 35kg.

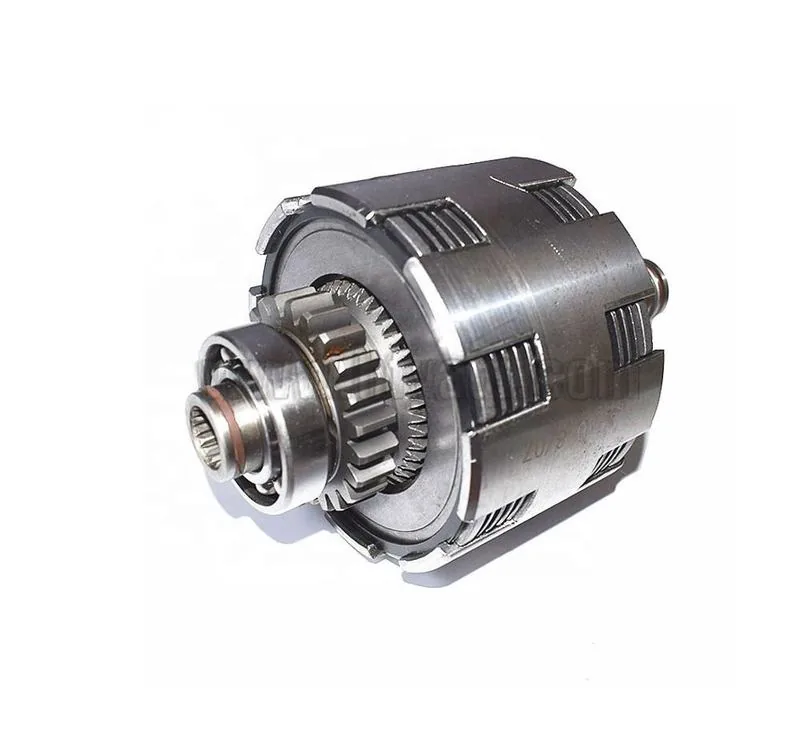

Forklift Hydraulic Clutch Assembly 14883-80201 — FD20 / FD30 Chinese Brand Forklifts
The 14883-80201 hydraulic clutch assembly is a complete forward/reverse clutch pack for FD20 and FD30 series 2-3 ton forklifts with powershift transmissions. Manufactured by Zhongnan Transmission to OEM specifications, this assembly includes the full set of friction discs, steel separator plates, hydraulic engagement piston with return springs, and clutch housing — all pre-assembled and adjusted for direct drop-in installation during transmission rebuilds. At 35 kg shipping weight, this is a robust clutch pack built for Chinese-brand forklifts operating in material handling, warehouse, and light industrial applications.
This clutch assembly fits FD20 (2-ton) and FD30 (3-ton) forklifts widely used across Chinese-brand fleets including HELI, Hangcha, TCM, and other domestic manufacturers using the standard FD-series powershift transmission. The 14883-80201 clutch pack handles the full engine torque transfer through the transmission, engaging and disengaging hydraulically via the transmission control valve. Common failure symptoms include: delayed or slipping forward engagement (friction discs worn below service limit); burnt-smelling transmission fluid (clutch pack overheating from continuous slippage); metal contamination in transmission oil (steel separator plates have warped from heat); and loss of drive in one direction (clutch pack for that gear set has failed). The unit must be replaced as a complete assembly — individual friction discs are not available separately for the Zhongnan transmission design.
Installation requires removing the transmission from the forklift, draining all fluid, and disassembling the transmission case to access the clutch pack housing. Soak new friction discs in fresh transmission fluid for 30 minutes before installation. Replace all piston seals, housing O-rings, and gaskets during the rebuild — the labor cost to re-access a leaking clutch pack far exceeds the cost of new seals. After assembly, verify clutch pack end-play per manufacturer specification and confirm the transmission rotates freely by hand before reinstallation. For related transmission components, browse our Forklift Hydraulic Transmission Parts catalog.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 14883-80201 |
| SKU | SP100302 |
| Type | Hydraulic Clutch Assembly / Clutch Pack |
| Weight | 35 kg (shipping) |
| Application | FD20 (2-ton) / FD30 (3-ton) |
| Manufacturer | Zhongnan Transmission |
Compatible Forklift Models
| Brand | Models |
|---|---|
| Chinese Brands (HELI, Hangcha, TCM) | FD20 (2-ton), FD30 (3-ton) diesel forklifts with powershift transmission |
Each clutch assembly is individually inspected and packed in a reinforced carton for safe transport. Express delivery available via DHL/UPS to worldwide destinations. Stock available for immediate shipment. For compatibility confirmation or bulk orders, contact our team with your forklift model.
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
