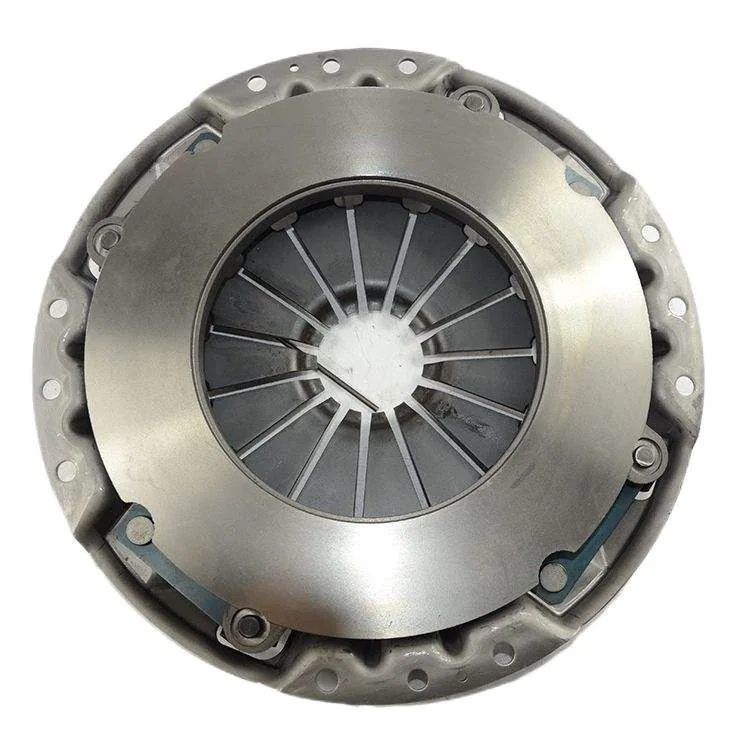

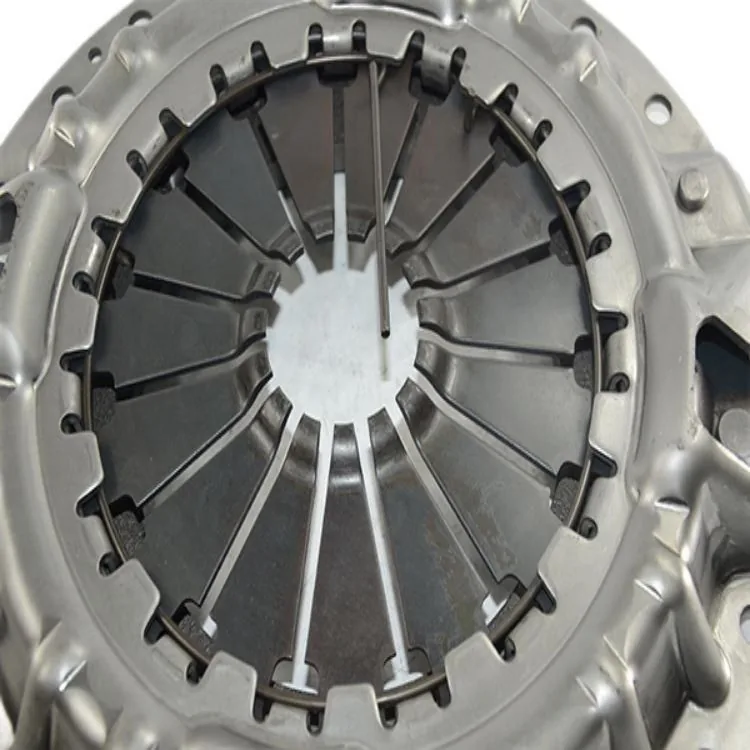

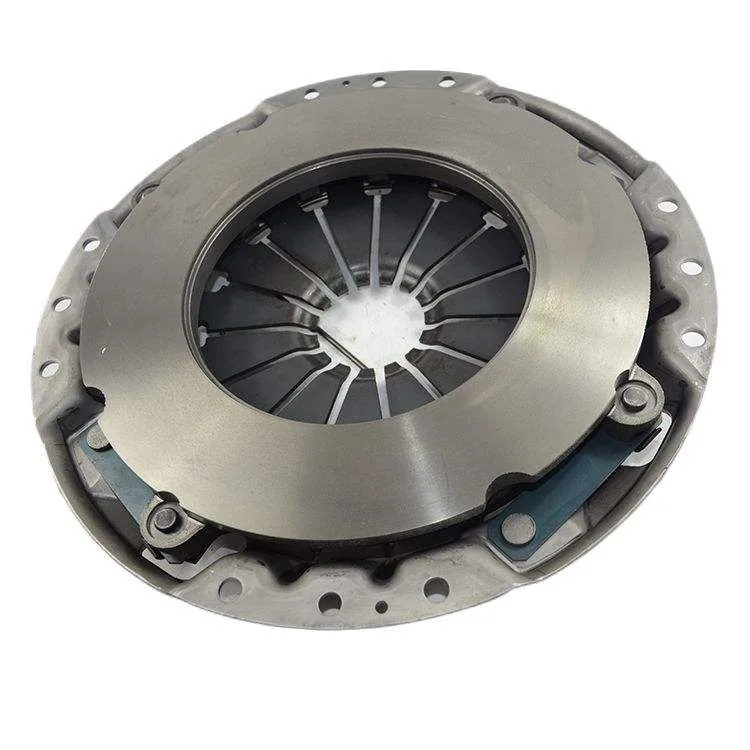

ISC572 High Quality Pressure Plate Clutch Cover for ISUZU ELF NKR 4HF1 300mm

ISC572 Clutch Pressure Plate — 300mm for Isuzu ELF NKR 4HF1 Engine

This ISC572 pressure plate (clutch cover) is specifically manufactured for the Isuzu ELF NKR light truck with the 4HF1 4.3-liter diesel engine — a completely different application from the 275mm forklift pressure plates that dominate the Chinese aftermarket. The 300mm diameter is the defining specification here: it is 25mm larger than the standard 275mm forklift plate, designed to handle the higher torque output and heavier flywheel mass of a road-going commercial truck versus a warehouse forklift. The 4HF1 engine produces approximately 88 kW (120 hp) and 285 N·m of torque — well above what any 2-3.5 ton forklift engine generates — and the 300mm pressure plate provides the proportionally larger friction surface area and higher clamp load needed to transmit that torque without slipping. Attempting to fit a 275mm forklift-spec pressure plate onto an Isuzu 4HF1 flywheel will result in the bolts not aligning (different PCD), the pressure ring not contacting the full disc face (resulting in immediate localized burning), and the clamp load being insufficient to hold the engine at full throttle under load.

The most common failure mode on Isuzu 4HF1 pressure plates — and the reason ISC572 replacement demand is consistent — is diaphragm spring fatigue at the finger base. The ELF NKR is frequently operated in stop-start urban delivery cycles with clutch usage far exceeding that of a forklift: 50-100 engagements per shift versus a forklift’s 20-30. This accelerated cycle count fatigues the diaphragm spring material at the finger root, where stress concentration is highest. The first symptom is a clutch pedal that feels progressively heavier over weeks, followed by inconsistent engagement point height as the weakening spring allows the pressure ring to lift unevenly. Unlike forklift plates where heat spotting is the primary failure mode, the Isuzu 4HF1 plate typically fails from mechanical fatigue first — by the time heat spots appear, the diaphragm spring has already lost 15-20% of its original clamp force. The ISC572 replacement is manufactured with a shot-peened and stress-relieved diaphragm spring specifically processed to extend fatigue life under high-cycle urban delivery conditions.

Direct replacement for Isuzu ELF NKR, NPR, and forward-control cab models with the 4HF1 4.3L diesel engine; also fits Isuzu 4HG1 variants and some industrial 4HF1-powered generator sets and pump units using the 300mm clutch specification. Always verify your existing pressure plate diameter (measure across the pressure ring outer edge — must be 300mm, not 275mm) and bolt circle PCD before ordering. Replace the clutch disc, release bearing, and pilot bearing simultaneously. Torque the mounting bolts to the Isuzu specification in a star pattern. For 275mm forklift pressure plates, browse our clutch pressure plate category. For OEM specifications, visit Isuzu official website.

Technical Specifications

• SKU: ISC572-4HF1
• Key Differentiator: 300mm Diameter — For Isuzu ELF NKR 4HF1 Trucks. 25mm larger than forklift plates. NOT interchangeable with 275mm forklift pressure plates.
• Diameter: 300mm
• Fitment: Isuzu 4HF1 4.3L Diesel Engine (ELF NKR, NPR)
• Spring Type: Shot-Peened & Stress-Relieved Diaphragm Spring — Fatigue-Resistant for High-Cycle Urban Delivery
• Application: Isuzu ELF / NKR Light Trucks, Industrial 4HF1 Equipment
• Warranty: 12 Months

Compatible Isuzu Models

Kingstream ISC572 pressure plates are individually VCI-wrapped and packed in reinforced export cartons with molded foam cradles. QC: diaphragm finger height ±0.3mm, pressure ring flatness ≤0.05mm, bolt PCD gauge verification, dynamic balance. 12-month warranty. Contact us with your Isuzu model and engine serial number for fitment confirmation or bulk pricing.
