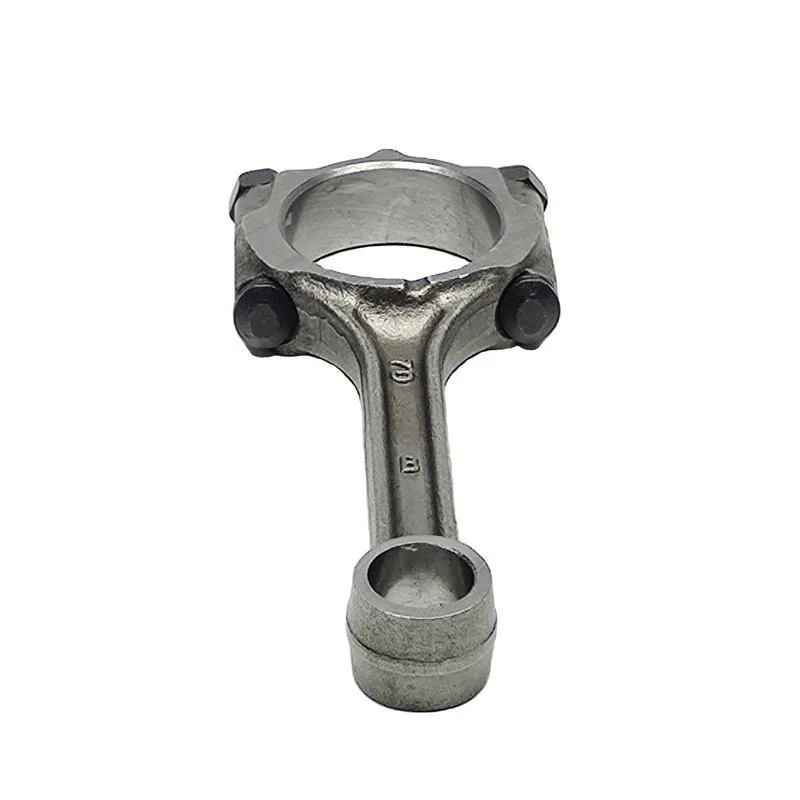

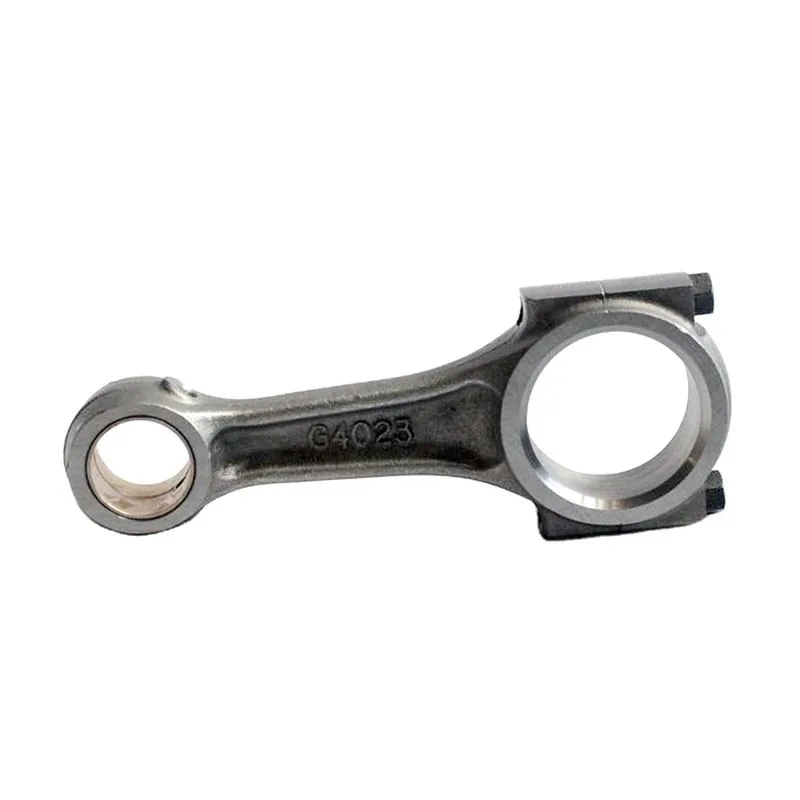

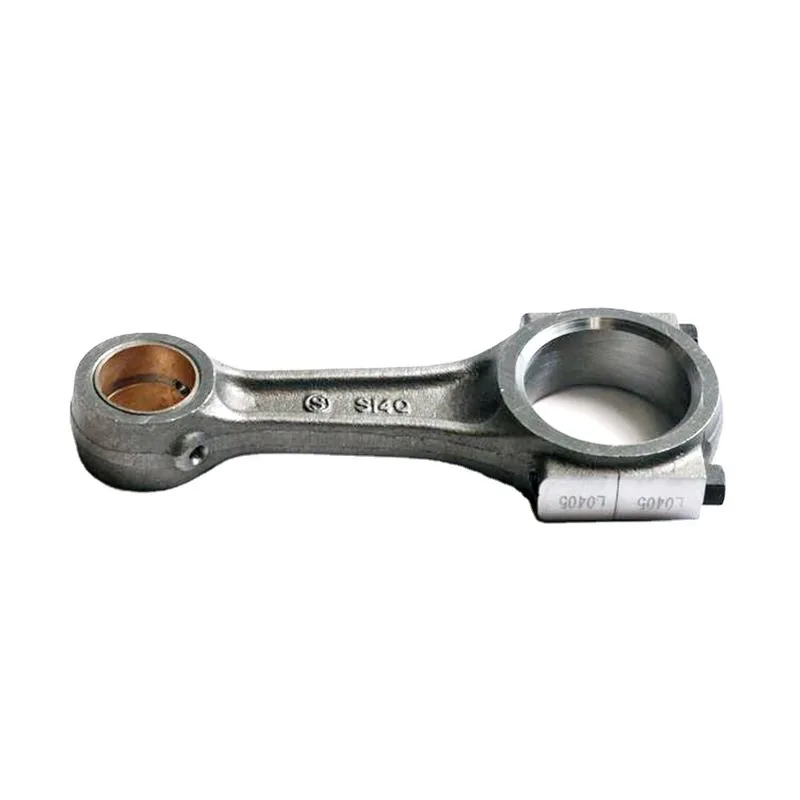

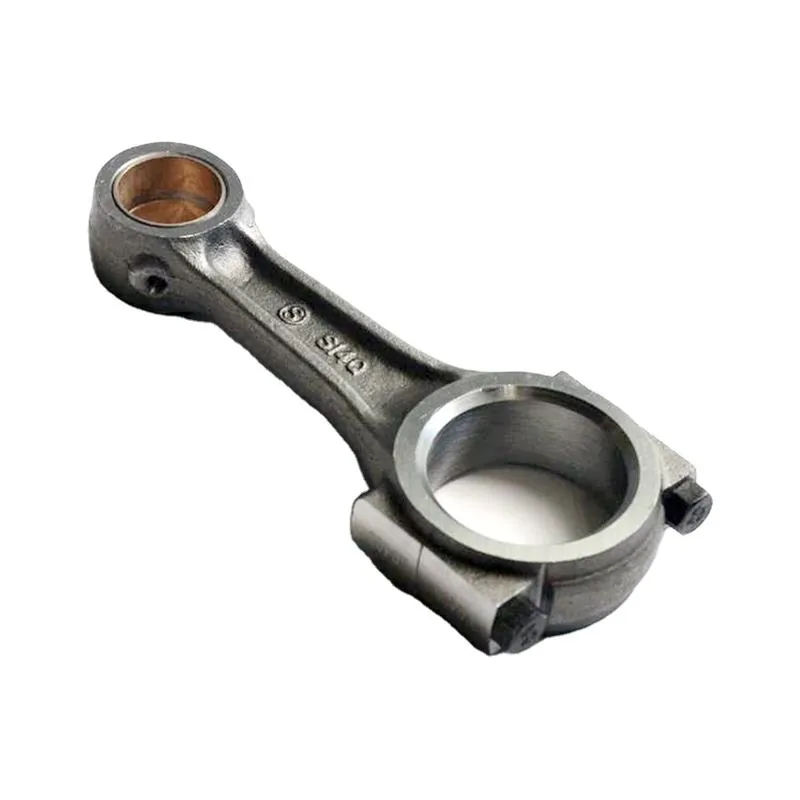

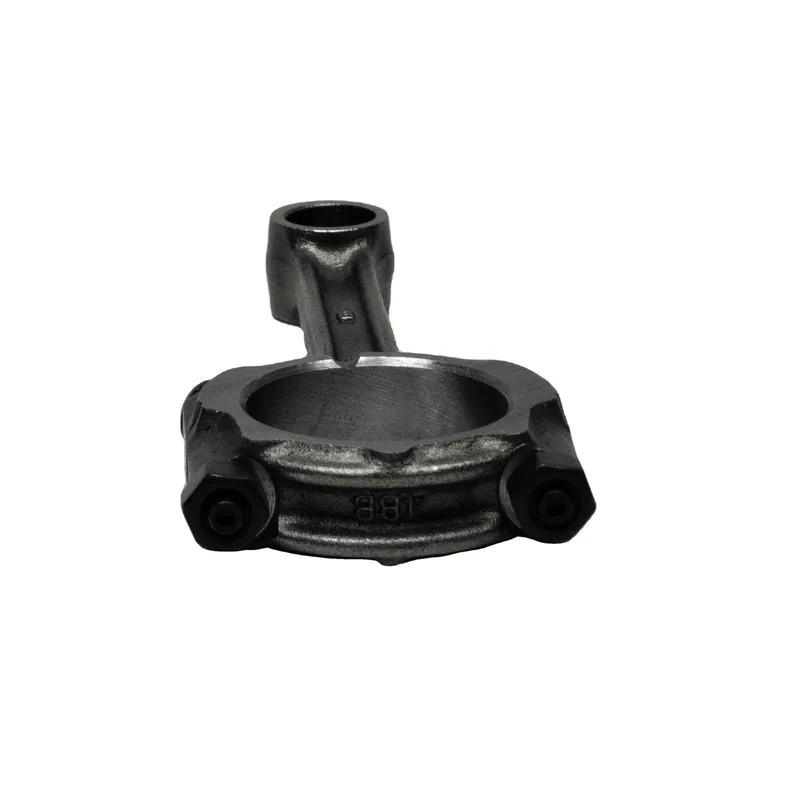

Nissan K25 Diesel Forklift Connecting Rod 12100-FY500 – HRX OEM

Nissan K25 Diesel Forklift Connecting Rod 12100-FY500 — Kingstream OEM, 10kg

This is the connecting rod (part number 12100-FY500) for the Nissan K25 2.5L diesel engine — the workhorse power unit in Nissan forklifts and engineering machinery. The connecting rod is the link between the piston (which receives combustion force) and the crankshaft (which converts that force to rotational torque). Each connecting rod is a forged steel component subjected to alternating tension and compression loads at every engine revolution — at 2,600 RPM, the rod cycles from full tension (pulling the piston down on the intake stroke) to full compression (pushing the piston up on compression, then being pushed down by combustion at pressures exceeding 1,000 psi) 43 times per second. The connecting rod is one of the most highly stressed components in any engine. When a connecting rod fails — whether from a spun bearing, fatigue fracture at the bolt threads, or hydrolock bending — it typically punches through the engine block wall, destroying the engine beyond repair in a chain reaction that damages the crankshaft, cylinder block, piston, and often the cylinder head.

This Kingstream brand rod is manufactured in Zhejiang, China with ISO9001 certification, machinery test report, and video outgoing-inspection provided. 6-month warranty. 10 kg weight (15×10×5 cm package). K25 engine model, diesel type, engineering machinery engine application. High performance quality. Customization available for packaging, engine type, logo/graphic design, and type (MOQ 2,000 pieces). When replacing a connecting rod, always replace the rod bolts with new OEM-spec fasteners — used torque-to-yield bolts have already been stretched beyond their elastic limit during the first installation and will not maintain the correct clamping force if reused. The big-end bore must be measured for roundness at multiple angles (0°, 45°, 90°, 135°) — an out-of-round bore crushes the bearing shell and reduces oil clearance on one axis, causing a spun bearing within the first operating hours. The small-end bushing must be checked for correct press-fit and piston pin clearance. All connecting rods in a multi-cylinder engine must be weight-matched — installing one rod that differs by more than 2-3 grams creates engine imbalance that shortens main bearing life. Apply assembly lube to the bearing shells and crankshaft journal before torque, and prime the oil system by cranking without fuel until oil pressure registers on the gauge before first start.

Compatible with Nissan K25 diesel engines in forklifts and engineering machinery. Browse our connecting rod selection for Weichai and Hyundai engines. For engine specifications, visit Nissan Forklift official website.

Technical Specifications

Compatible Models

ISO9001 certified. Replace rod bolts. Confirm your Nissan engine model →
