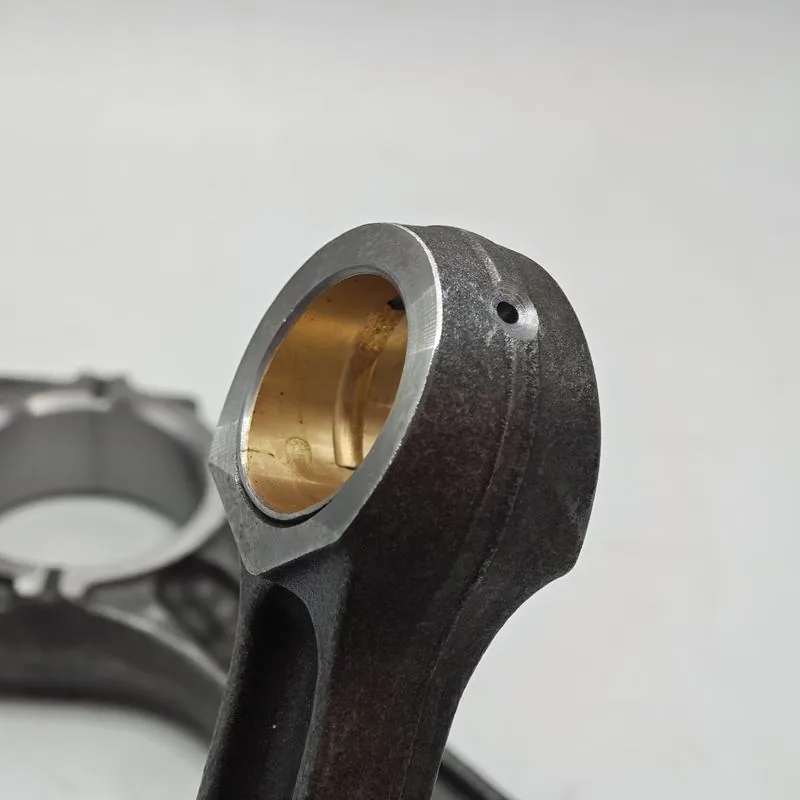

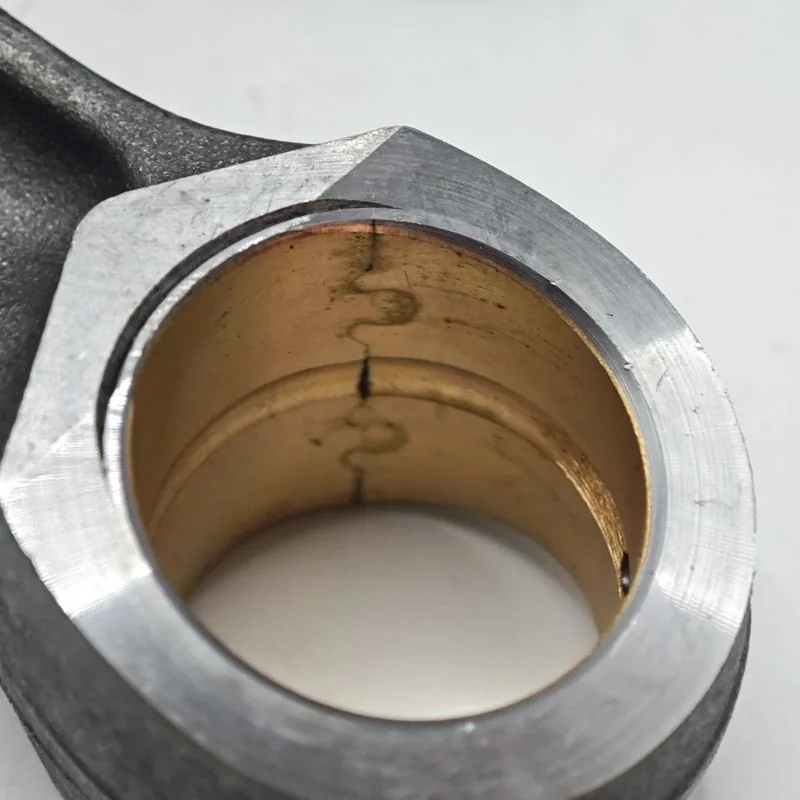

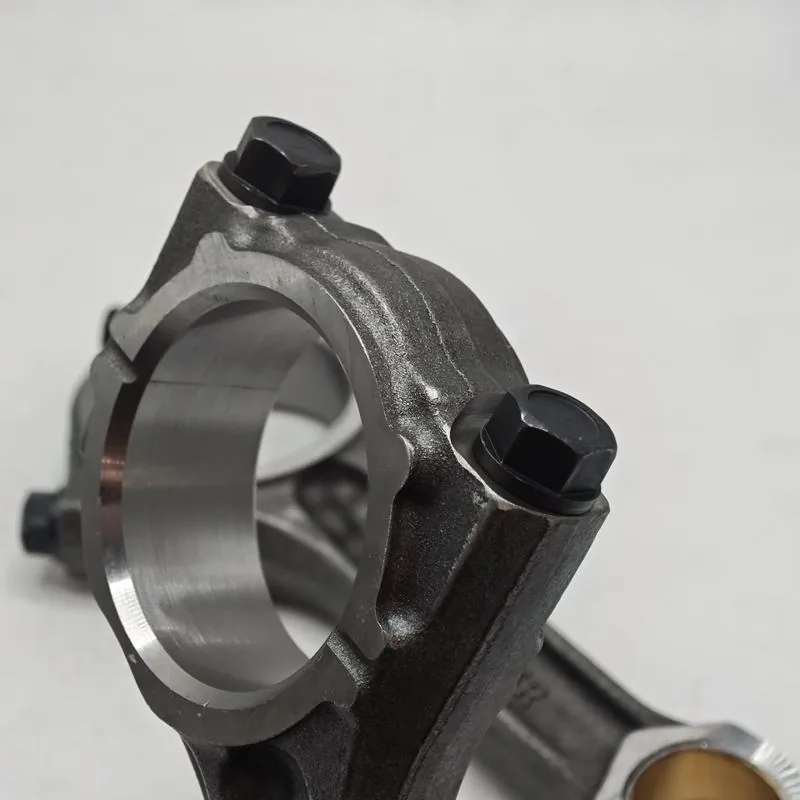

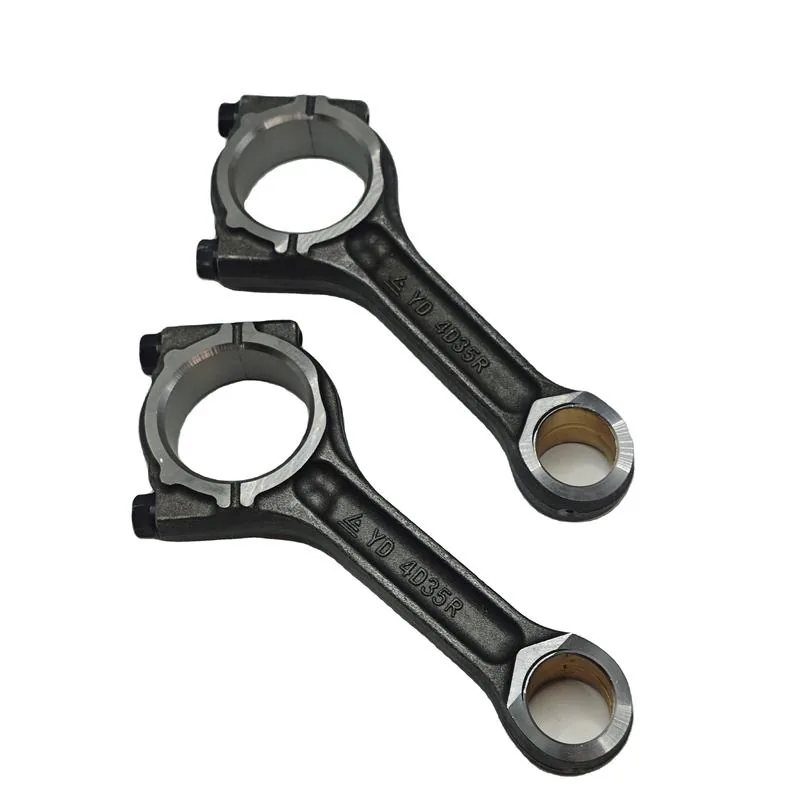

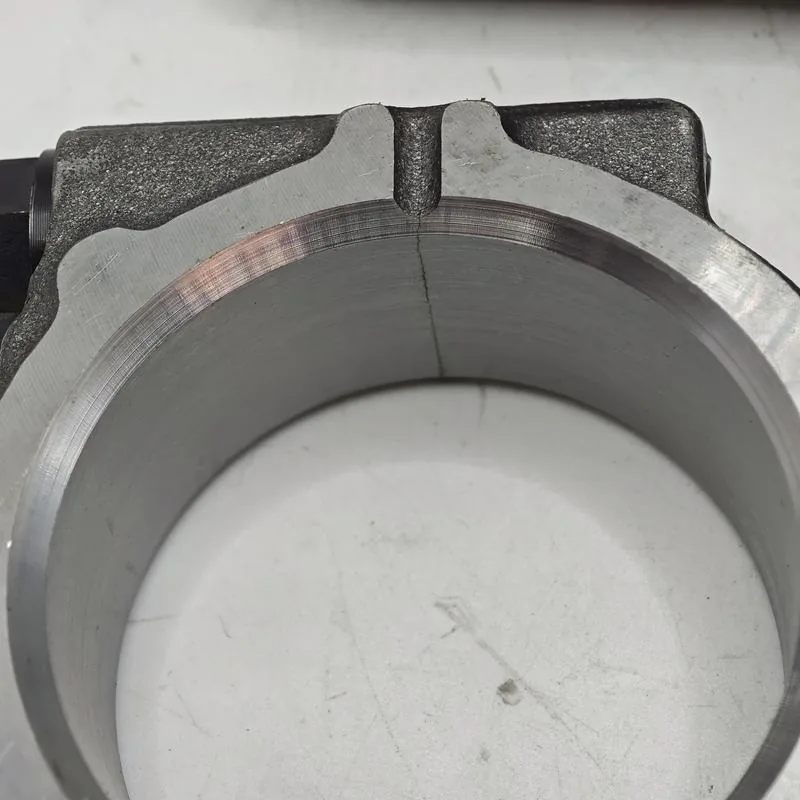

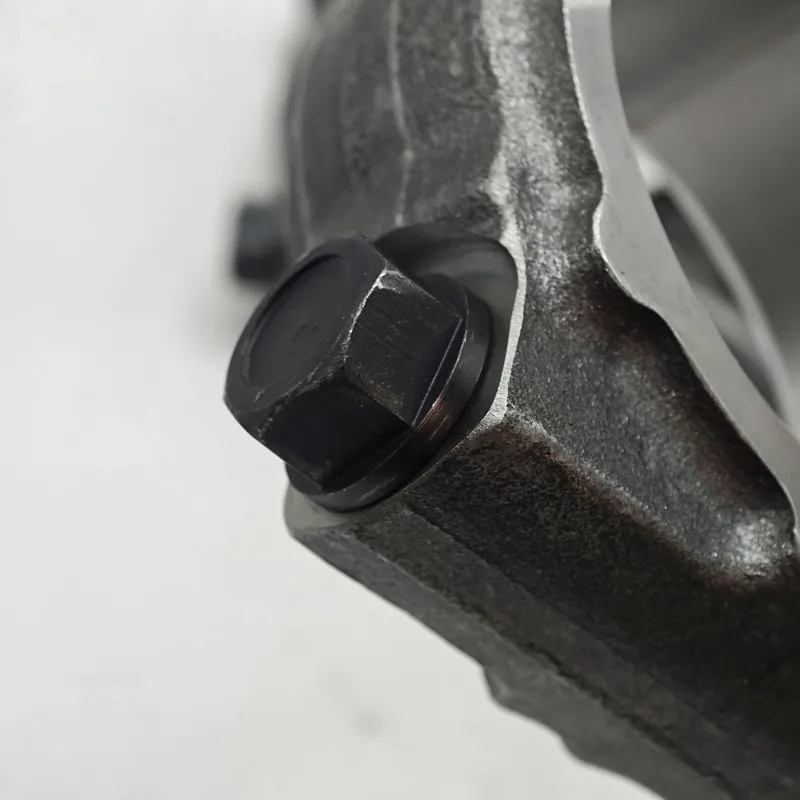

XinChai 4D35G Diesel Connecting Rod – Forklift/Truck Engine OEM

XinChai 4D35G Diesel Connecting Rod — Forklift/Truck Engine OEM, 1kg

This is the connecting rod for the XinChai 4D35G diesel engine — a high-quality forged steel component that links the piston to the crankshaft, converting the linear force of combustion into the rotational torque that drives the forklift or truck. The connecting rod is one of the most highly stressed components in any internal combustion engine: at 2,600 RPM under full load, the rod cycles from maximum tension (pulling the piston downward on the intake stroke) to maximum compression (pushing against combustion pressures exceeding 1,000 psi) 43 times every second. This alternating load cycle creates fatigue stress at every sharp radius and thread root — the connecting rod bolt threads are the most common fatigue failure point, followed by the transition radius between the rod beam and the big-end bore. A failed connecting rod typically punches through the engine block wall within 2-3 revolutions of failure, destroying the cylinder block, crankshaft, neighboring rods, and often the cylinder head in a chain reaction that turns the entire engine into irreparable scrap.

This XinChai brand rod is manufactured in Jiangsu, China with 3-month warranty including free replacement parts and online technical support. 1 kg weight. XinChai diesel engine type, CONNECTING ROD classification. Forklift and truck application — the 4D35G is a variant in the Xinchai 4D series used across forklifts and light trucks in the Chinese industrial and transportation markets. When replacing a connecting rod, always replace the connecting rod bolts with new OEM-spec fasteners — used torque-to-yield bolts have been permanently stretched during the first installation and cannot maintain the design clamping force. The big-end bore must be measured for out-of-round with a bore gauge at 0°, 45°, 90°, and 135° — an out-of-round bore crushes the bearing shell asymmetrically, creating thin spots in the oil film that lead to bearing contact and a spun bearing within hours. The small-end bushing press-fit and piston pin clearance must be verified — a loose bushing shifts under load and accelerates pin and piston boss wear. All connecting rods in a multi-cylinder engine must be weight-matched: a 2-3 gram difference between the lightest and heaviest rod creates a rotating imbalance that reduces main bearing life by increasing cyclic loading on specific journals. Apply assembly lube to bearing shells and journal surfaces, torque rod bolts to specification in sequence, and verify the rod side clearance with a feeler gauge before installing the oil pan.

Compatible with XinChai 4D35G diesel engines in forklifts and trucks. Browse our connecting rod selection for Nissan K25. For engine specifications, visit Xinchai official website.

Technical Specifications

Compatible Models

Replace rod bolts. Free tech support. Confirm your engine model →
