Forklift Pressure Relief Valve DGMC2-3-AT-CW-BT-BW-41
$49.99
DGMC2-3-AT-CW-BT-BW-41 SystemStak modular dual relief valve. ISO 4401-03, 315 bar max, 60 L/min, stackable sandwich plate.

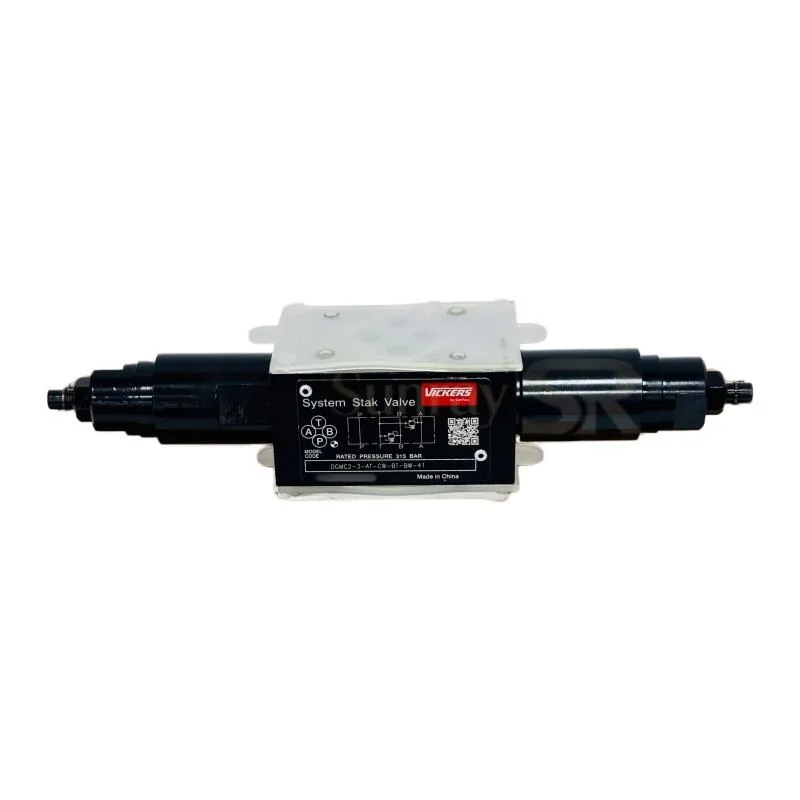

Forklift Pressure Relief Valve DGMC2-3-AT-CW-BT-BW-41: SystemStak Modular Dual Relief Valve
The DGMC2-3-AT-CW-BT-BW-41 is a SystemStak modular stackable dual relief valve for ISO 4401-03 / CETOP 3 / NG6 hydraulic manifolds. As a sandwich plate valve design, it mounts between the directional control valve and the manifold subplate, providing adjustable pressure relief protection without additional plumbing or external piping. This two-way, dual function valve handles flows up to 60 L/min (15.85 gpm) at 315 bar maximum, with an adjustable pressure range of 4-200 bar — making it suitable for forklift attachment circuits, mast tilt systems, and industrial hydraulic applications in excavators, wheel loaders, and injection molding machines.
Weighing 3.6 kg at 233x47x39 mm, this Vickers-compatible valve uses NBR or optional FKM seals rated for -20°C to +80°C mineral oil operation. The stackable modular design reduces manifold complexity by integrating the relief function directly into the valve stack rather than requiring a separate cartridge or inline relief valve. Common failure modes include spring fatigue causing pressure drift, O-ring deterioration at manifold interfaces causing external leakage, and poppet seat wear from contaminated oil leading to failure to hold set pressure. Backed by a 1-year warranty with 3-7 day lead time.
| Parameter | Value |
|---|---|
| Model | DGMC2-3-AT-CW-BT-BW-41 |
| Type | SystemStak Stackable Dual Relief |
| Max Pressure | 315 bar |
| Adjustable Range | 4-200 bar |
| Flow Rate | 60 L/min (15.85 gpm) |
| Mounting | ISO 4401-03 / CETOP 3 / NG6 |
| Weight | 3.6 kg |
| Brand | Models |
|---|---|
| Vickers / Multi-brand | ISO 4401-03 manifold systems |
Browse all pressure relief valves. Visit HELI official for specifications.
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
