Forklift Clutch pressure plate

Forklift Clutch Pressure Plate： Diaphragm & Coil Spring Types for Mechanical Transmissions

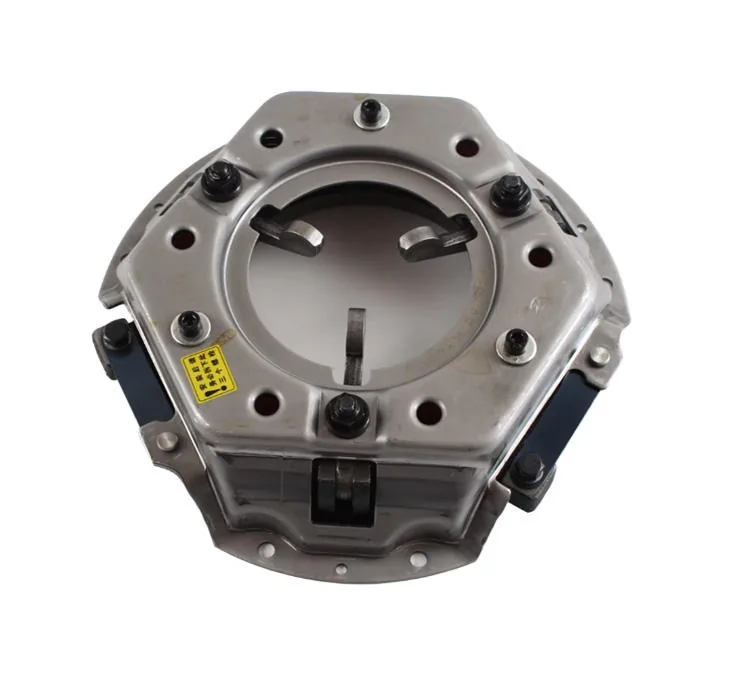

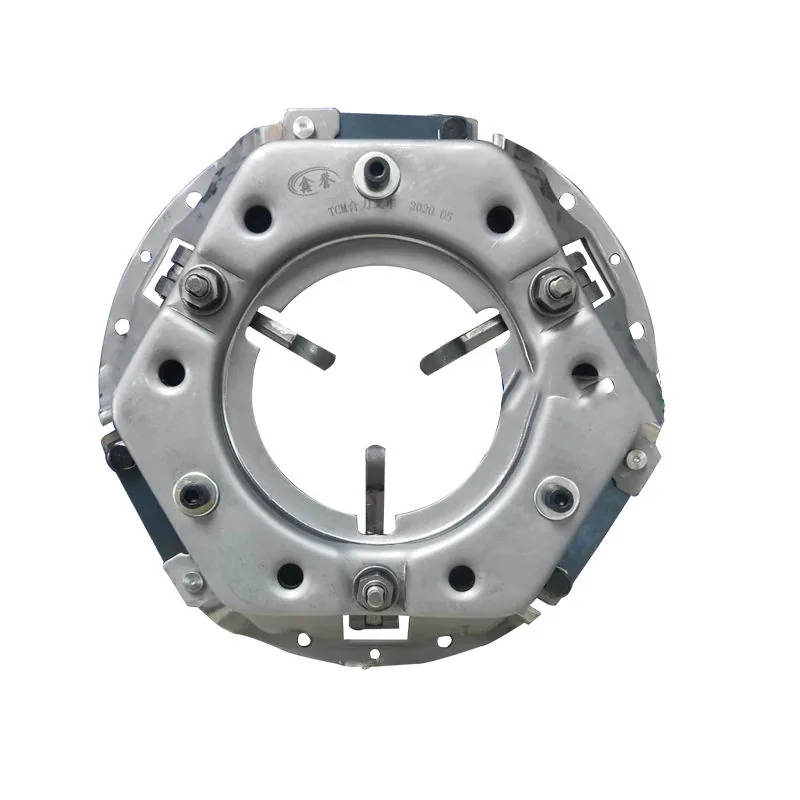

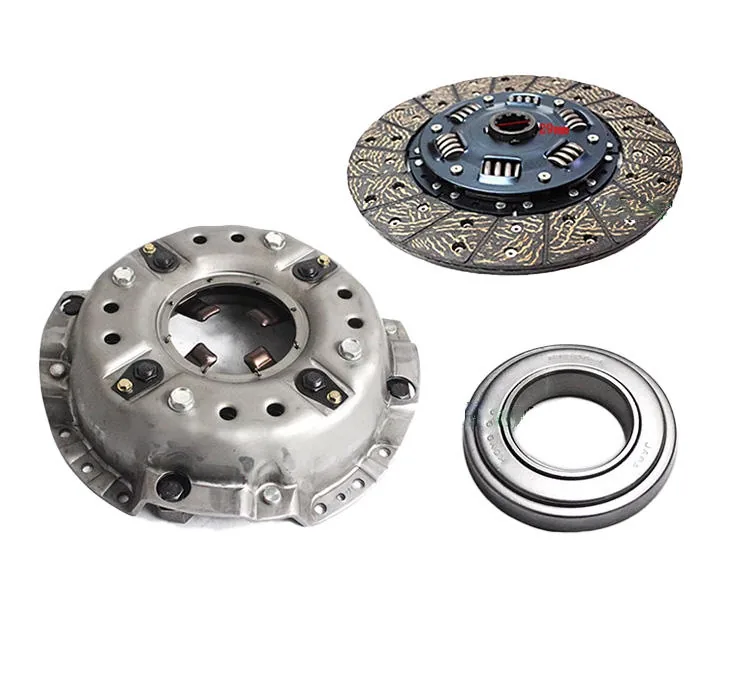

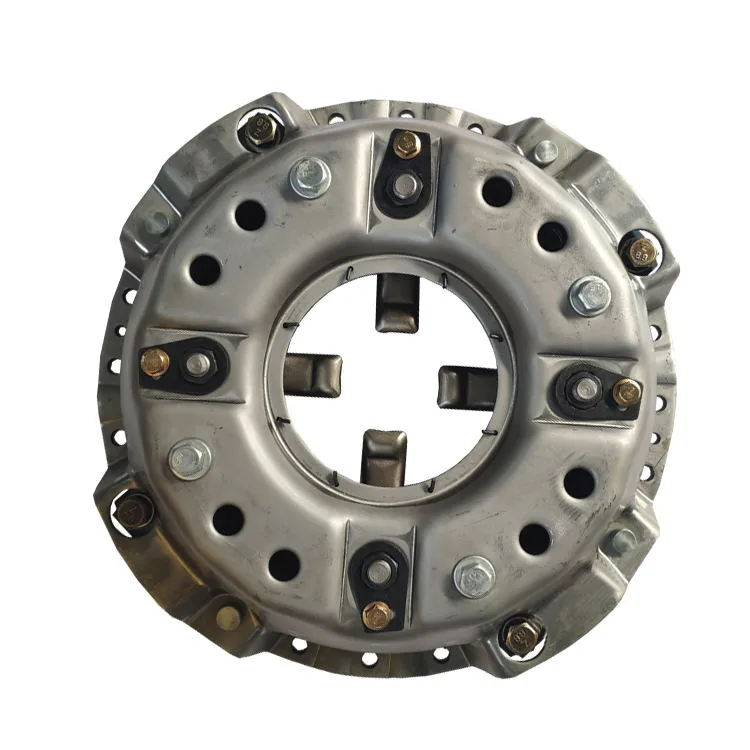

A forklift clutch pressure plate clamps the clutch disc against the flywheel, transmitting engine torque to the transmission. When the diaphragm spring weakens or the pressure plate surface warps from heat, the clutch slips under load and eventually fails to engage. Kingstream stocks replacement forklift clutch pressure plates in diaphragm and coil spring types for Toyota, Komatsu, HELI, Hangcha, TCM, Nissan, Mitsubishi, and ISUZU forklifts from 3 to 10 tons capacity.

Diaphragm vs Coil Spring Pressure Plates

A forklift diaphragm pressure plate uses a single conical spring disc to apply clamping force. When the release bearing pushes the center of the diaphragm inward, the outer edge lifts, releasing pressure on the clutch disc. Diaphragm types are lighter, have fewer moving parts, and maintain more consistent clamping force as the clutch disc wears — they are the standard on forklifts up to 5 tons. Coil spring pressure plates use multiple coil springs arranged around the circumference to provide clamping force. They handle higher torque loads and are used on heavy-duty forklifts over 7 tons. The springs can be replaced individually if one breaks, whereas a diaphragm spring failure requires replacing the entire forklift clutch cover assembly.

Signs Your Pressure Plate Needs Replacement

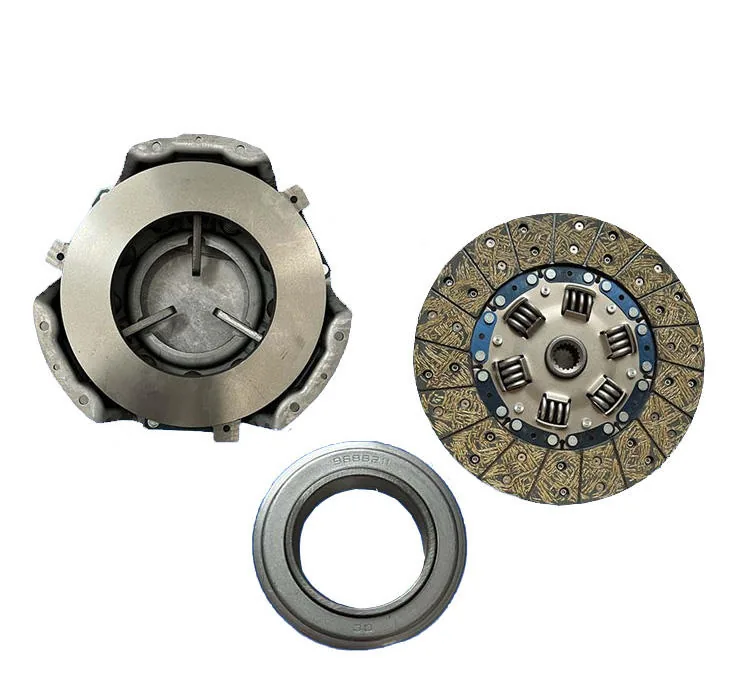

A failing forklift clutch pressure plate shows these symptoms: the clutch slips under load — engine RPM increases but forklift speed does not — indicating the clamping force is insufficient to hold the disc against the flywheel; hot spots or heat-checking visible on the pressure plate surface, appearing as blue or purple discoloration from overheating during slip; the clutch pedal feels uneven or pulsates during engagement, indicating the pressure plate surface is warped; and the release bearing contact area on the diaphragm fingers shows visible wear grooves, indicating the fingers will eventually crack. A forklift pressure plate should always be replaced together with the clutch disc — installing a new disc against a worn or warped pressure plate causes the new disc to wear unevenly and fail prematurely.

How to Order the Correct Pressure Plate

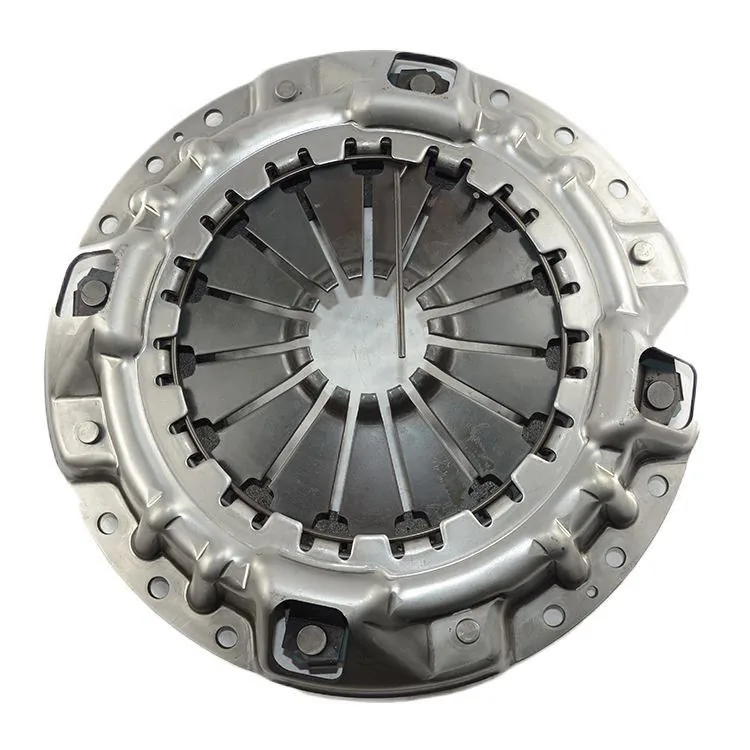

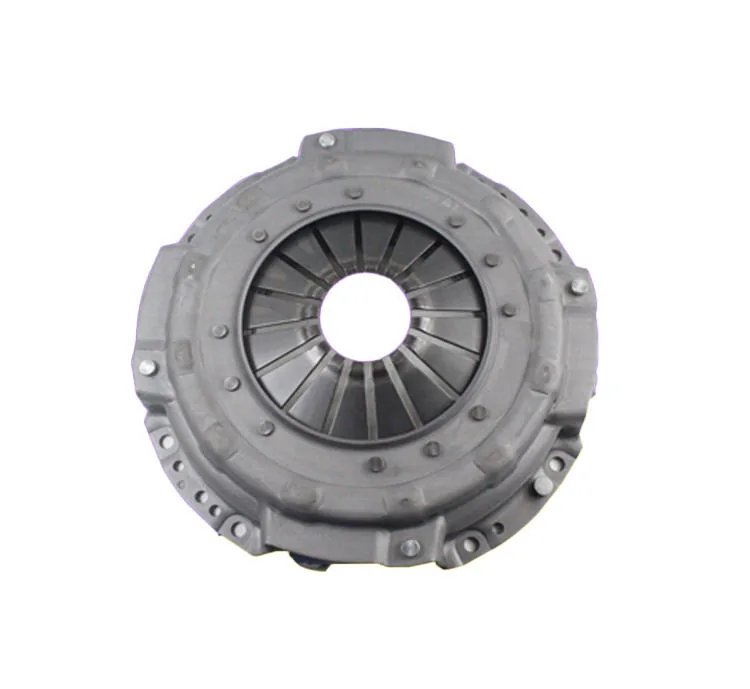

When replacing a forklift clutch pressure plate, verify the outer diameter — pressure plates are matched to a specific clutch disc size and flywheel. Confirm the spline count and input shaft diameter — the release bearing bore must match the bearing carrier. Check the mounting bolt pattern to the flywheel and the number of mounting bolts. Also verify whether your system uses a push-type or pull-type release mechanism. The most reliable method is to send us your forklift model or the OEM part number — ISC572 for ISUZU 4HF1 engines and XL0547Y for HELI forklifts provide exact matches.

Popular Pressure Plate Cross-Reference

Quality Control at Kingstream

Every forklift clutch pressure plate we ship is inspected: the clamping surface is checked for flatness — a warped surface causes uneven disc contact and shudder during engagement; the diaphragm spring fingers are checked for uniform height — uneven fingers cause the release bearing to contact at an angle, accelerating wear; the mounting bolt holes are verified for correct spacing and thread condition; and the pressure plate is visually inspected for casting defects or surface contamination. You receive a forklift clutch cover pressure plate that clamps evenly and releases cleanly — not a plate with a warped surface that causes clutch shudder from day one.

Clutch slipping under load? Send us your forklift model or part number for a fast quote on pressure plates. For other transmission components, browse our complete transmission parts catalog.
