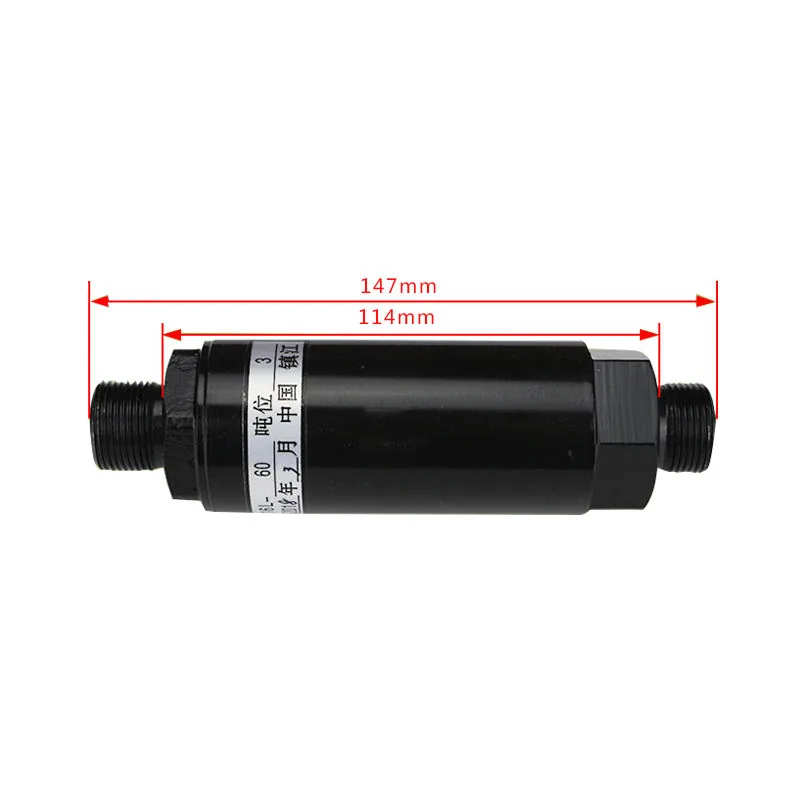

Forklift Speed Limit Valve D28B8-60201Y – 3-3.6T Fork Truck

Forklift Speed Limit Valve D28B8-60201Y: Flow Control for 3-3.6 Ton Fork Trucks

The D28B8-60201Y speed limit valve is a hydraulic flow governor for 3-3.6 ton forklift mast lowering circuits. Cast iron body with spring-loaded compensator that automatically adjusts the metering orifice based on load-induced back pressure — ensuring consistent, safe descent speed whether the forks are empty or carrying full rated capacity. The “Y” designation indicates reinforced internal springs calibrated for the higher flow rates of 3T+ lift cylinders compared to 1-2 ton variants.

Installation is directional — the cast-in flow arrow must point toward the tank return line. Reverse mounting completely blocks lifting flow. Mounts inline on the lift cylinder port block using BSPP 3/8″ fittings. At 3 kg shipping weight with the carton box packaging, this is a solid cast iron component built for continuous warehouse duty cycles. Common failure symptoms include sudden acceleration during lowering (spring fatigue after 3000-5000 hours), pulsing mast descent (spool binding from contaminated oil), and complete loss of lowering control (debris-stuck poppet).
