Forklift Steering Carbon Brush 8×30×25mm — Hyster LL10-H201G

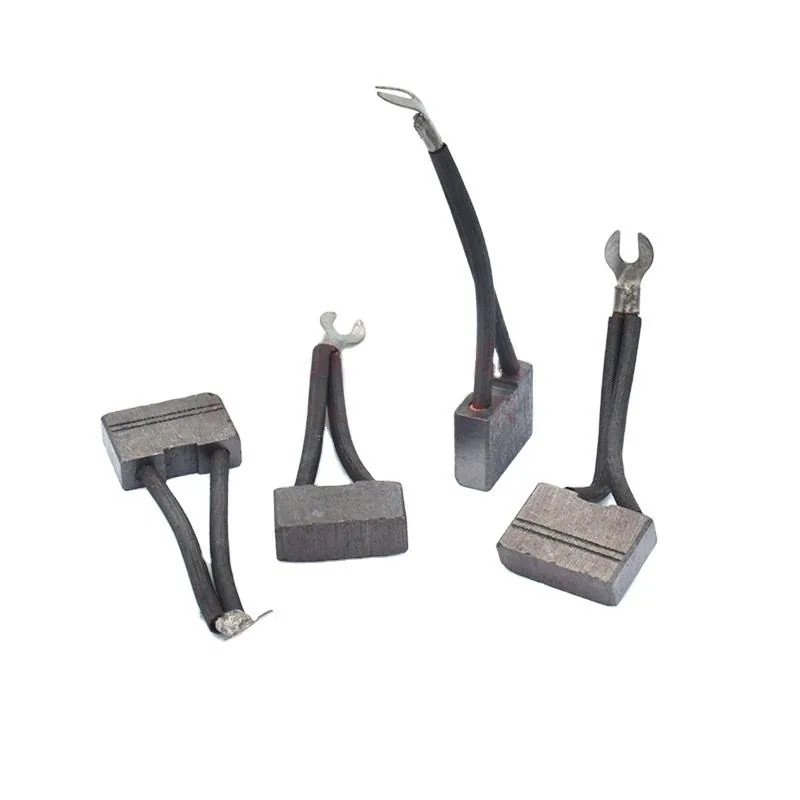

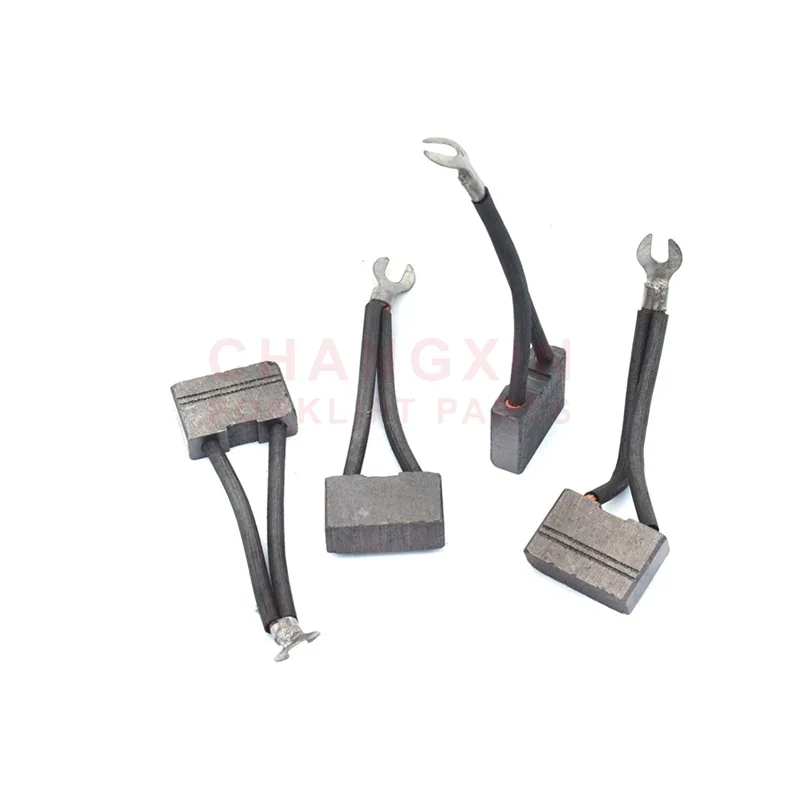

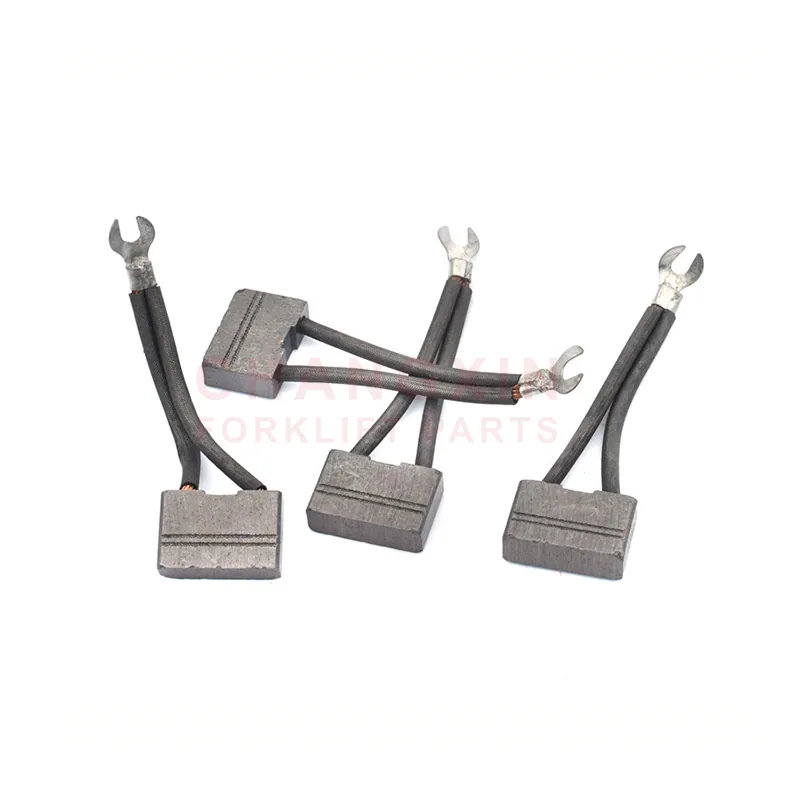

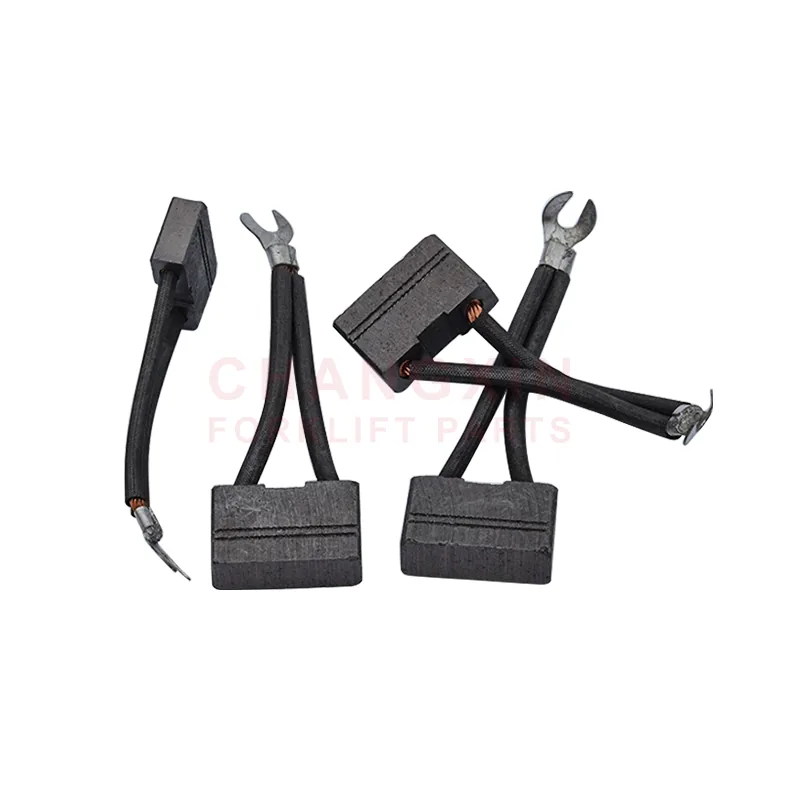

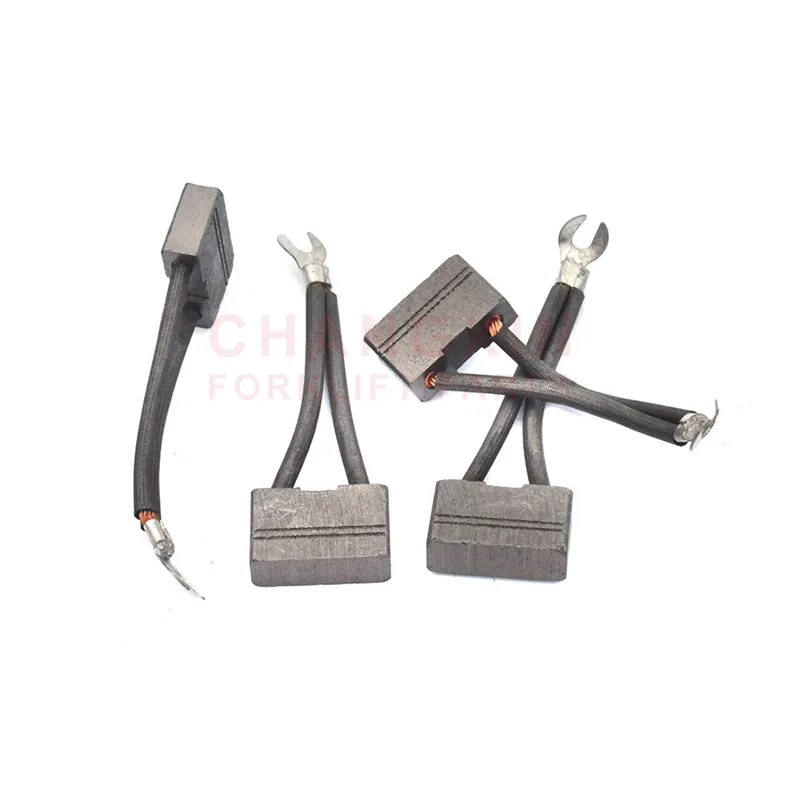

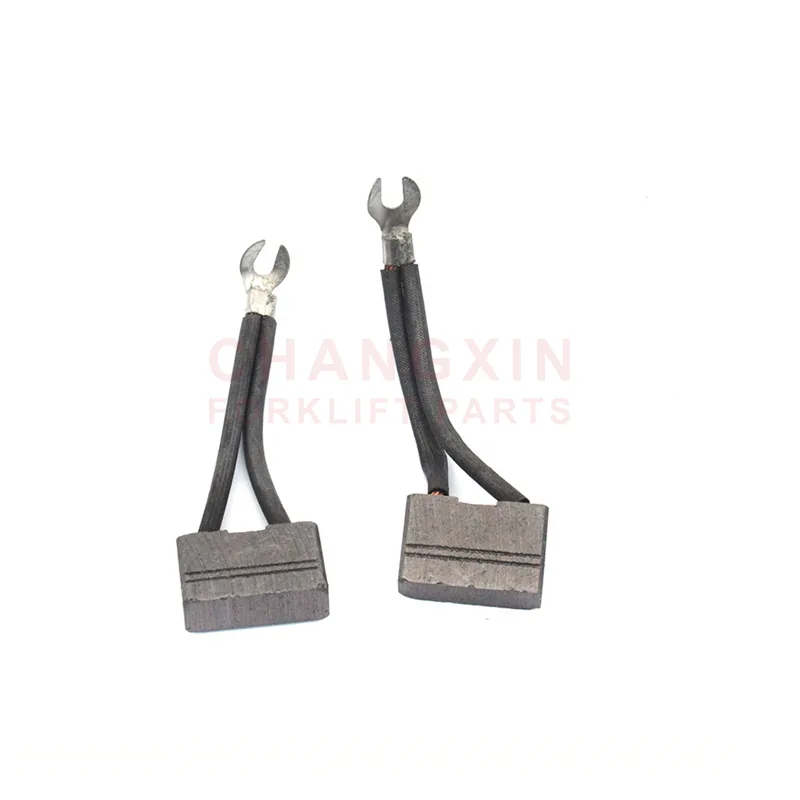

This steering carbon brush (dimensions 8 × 30 × 25 mm, C.X part number LL10-H201G) is a replacement wear component for the steering pump DC motor on Hyster electric forklifts. Unlike hydraulic pump motor brushes (like the J230 at 8.8×19.2×16mm), steering motor brushes carry lower current but operate at higher duty cycles — the steering motor runs continuously during maneuvering rather than intermittently like the hydraulic pump. A steering brush that wears down past its minimum length causes intermittent steering response — the forklift steers normally then suddenly stiffens when the brush loses contact mid-turn. The LL10-H201G matches the original brush holder dimensions and spring tension specification for Hyster steering motors.

Installation requires replacing all brushes in the motor as a set — steering motors typically use 4 brushes (2 pairs). Never mix old and new brushes in a steering motor; uneven brush wear creates commutator arcing that burns the copper segments, resulting in dead spots where the steering loses power at specific wheel angles. Before installing new brushes, inspect the commutator for scoring — if you can feel grooves with your fingernail, the commutator needs turning before new brushes are installed, or they’ll wear out in weeks. The C.X brand brushes are CE certified and manufactured in Anhui, China with OEM support available.

Compatible with Hyster electric forklift steering pump DC motors using 8×30×25mm brush holders. Also fits aftermarket steering motors matching these brush dimensions. Browse our complete carbon brush selection for other motor sizes and applications.

Technical Specifications

Compatible Models

Replace all brushes as a set. CE certified. Send us your brush dimensions for confirmed fitment →
