Toyota Forklift Orbitrol Steering Unit 45510-30513-71 — 7FD40 Series

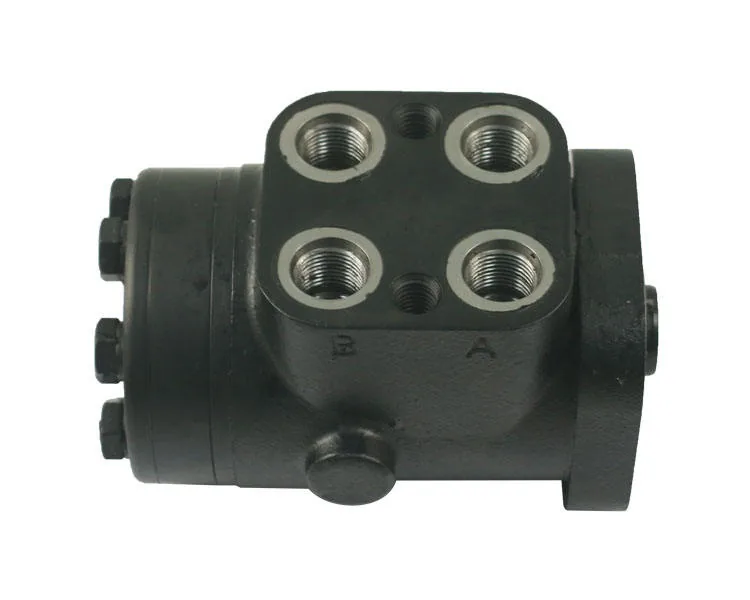

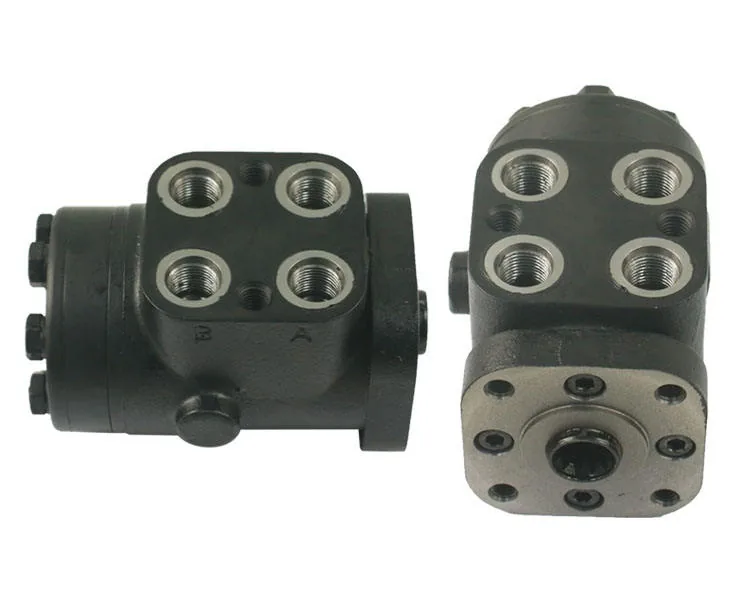

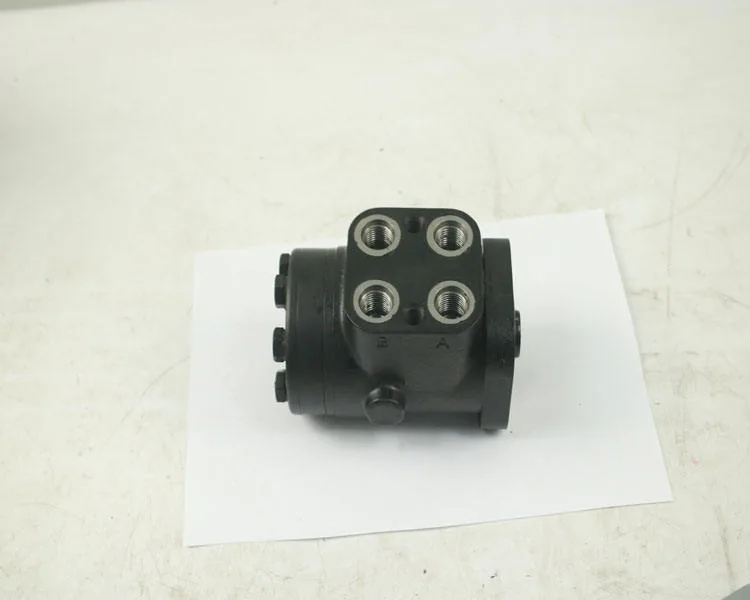

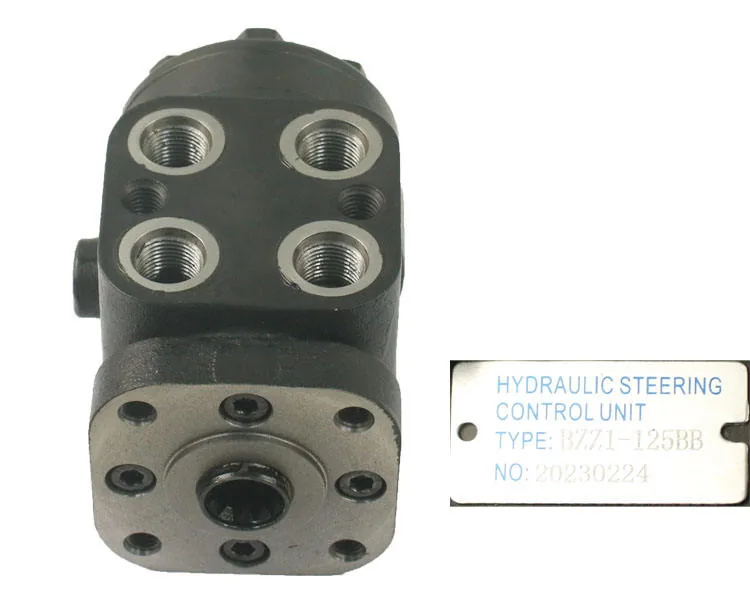

The 45510-30513-71 orbitrol steering unit is the OEM hydraulic steering control for Toyota 7FD40 series forklifts. This orbitrol — also called a hydrostatic steering unit or rotary steering valve — converts the operator’s steering wheel rotation into proportional hydraulic oil flow to the steering cylinder, providing smooth, low-effort power steering without mechanical linkage between the steering wheel and the steered axle. Weighing 5.9 kg with a compact 26×17×17 cm package, this genuine Toyota OEM steering unit provides the precise steering response required for safe forklift operation in tight warehouse aisles and loading docks.

The orbitrol steering unit is the core of the forklift’s hydrostatic steering system. When the operator turns the steering wheel, the orbitrol’s internal gerotor metering section and rotary spool valve work together to direct pressurized hydraulic oil from the steering pump to the appropriate side of the steering cylinder — the volume of oil delivered is proportional to the steering wheel rotation angle, giving the operator direct tactile feedback and precise control. This unit is specific to the Toyota 7FD40 model and is manufactured to genuine original Toyota parts specifications. Common failure symptoms include: heavy or inconsistent steering effort (internal spool wear or gerotor damage), steering wheel free play or wandering (excessive internal leakage), steering wheel does not return to center after turning (broken centering springs), and external oil leak from the unit body (failed shaft seal or housing O-ring). The orbitrol is not field-rebuildable — internal clearances are critical and the unit must be replaced as a complete assembly.

Installation requires depressurizing the steering hydraulic circuit, disconnecting the hydraulic lines at the orbitrol ports (label each line for correct reconnection), unbolting the unit from the steering column, and connecting the replacement unit. Bleed the steering system by turning the steering wheel lock-to-lock several times with the engine at idle. Check fluid level and inspect all connections for leaks. For related Toyota steering and hydraulic components, browse our Forklift Hydraulic System catalog.

Technical Specifications

Compatible Forklift Models

Each orbitrol steering unit is packaged for safe transport. Standard air freight delivery to major ports worldwide. For compatibility verification or bulk orders, contact our team with your Toyota model and serial number.
